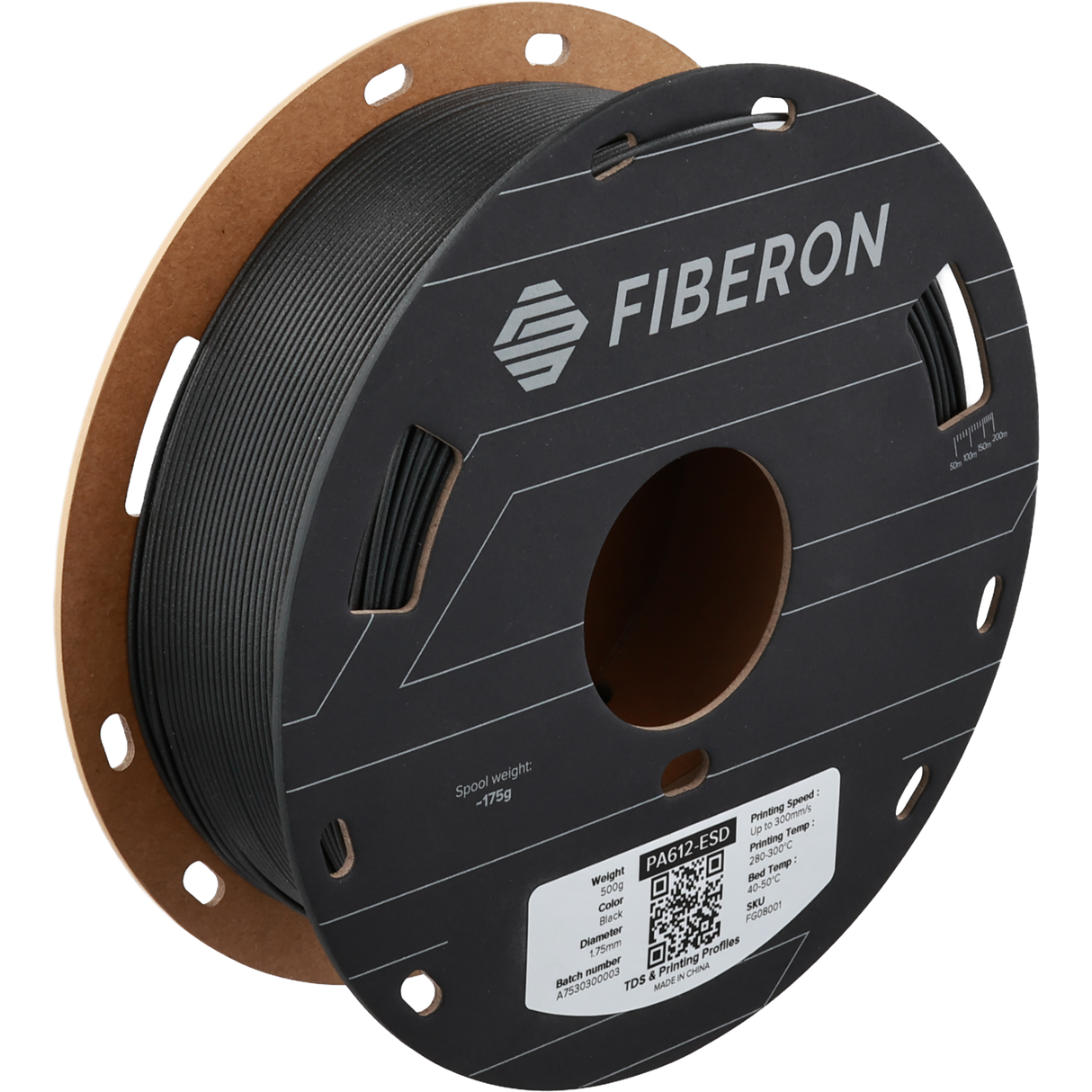

Fiberon™ PA612-ESD

Name: Fiberon™ PA612-ESD
Brand: Polymaker
SKU: FG08001
Price: 64.99 USD
Availability: InStock

$64.99 USD

Polymaker | SKU: FG08001

Diameter

1.75mm

Net Weight

0.5kg 3kg

Color: Black

Product variants

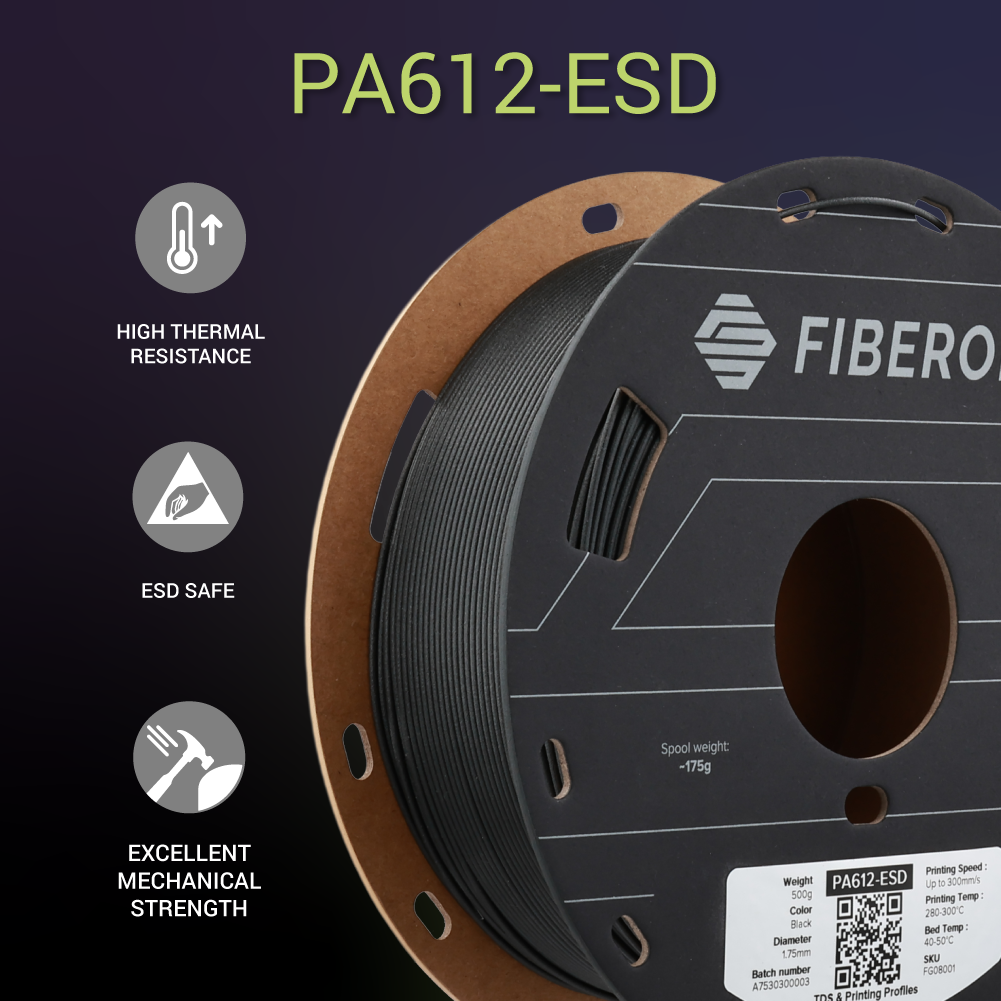

Print Industrial-Grade ESD Parts with Polymaker™ Fiberon PA612-ESD
Engineered for professionals who need performance where it counts. With built-in ESD safety, carbon fiber reinforcement, and high thermal stability, this nylon filament is your go-to material for demanding electronic and manufacturing applications.

ESD-Safe and Ready for Action

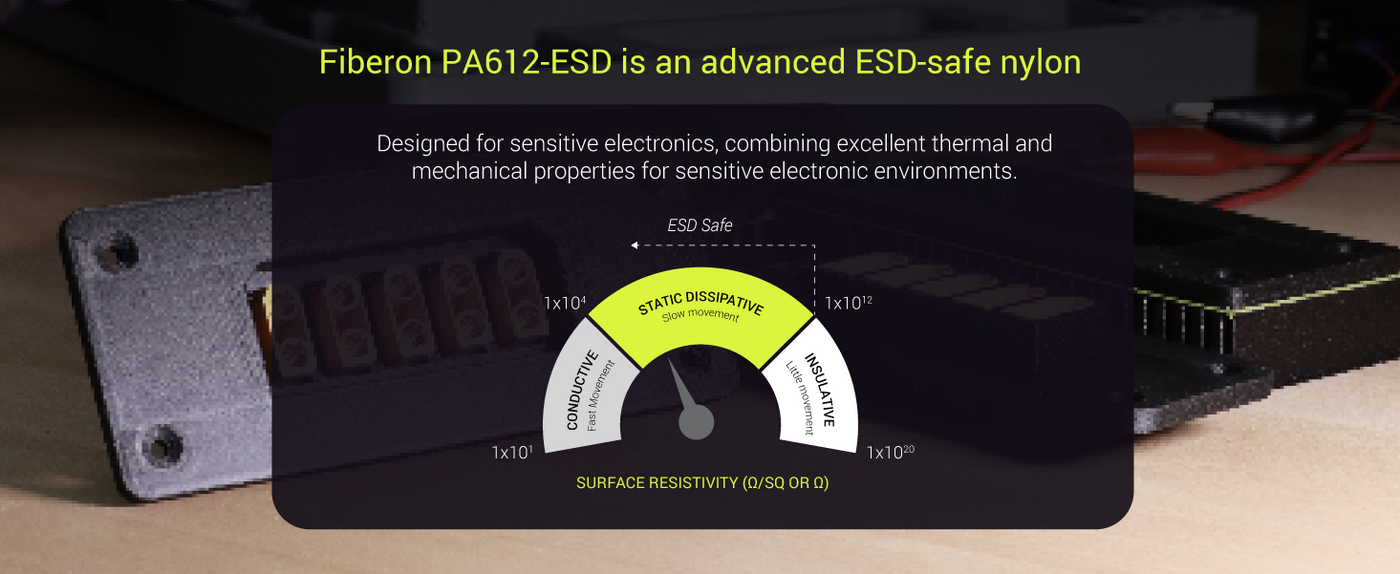

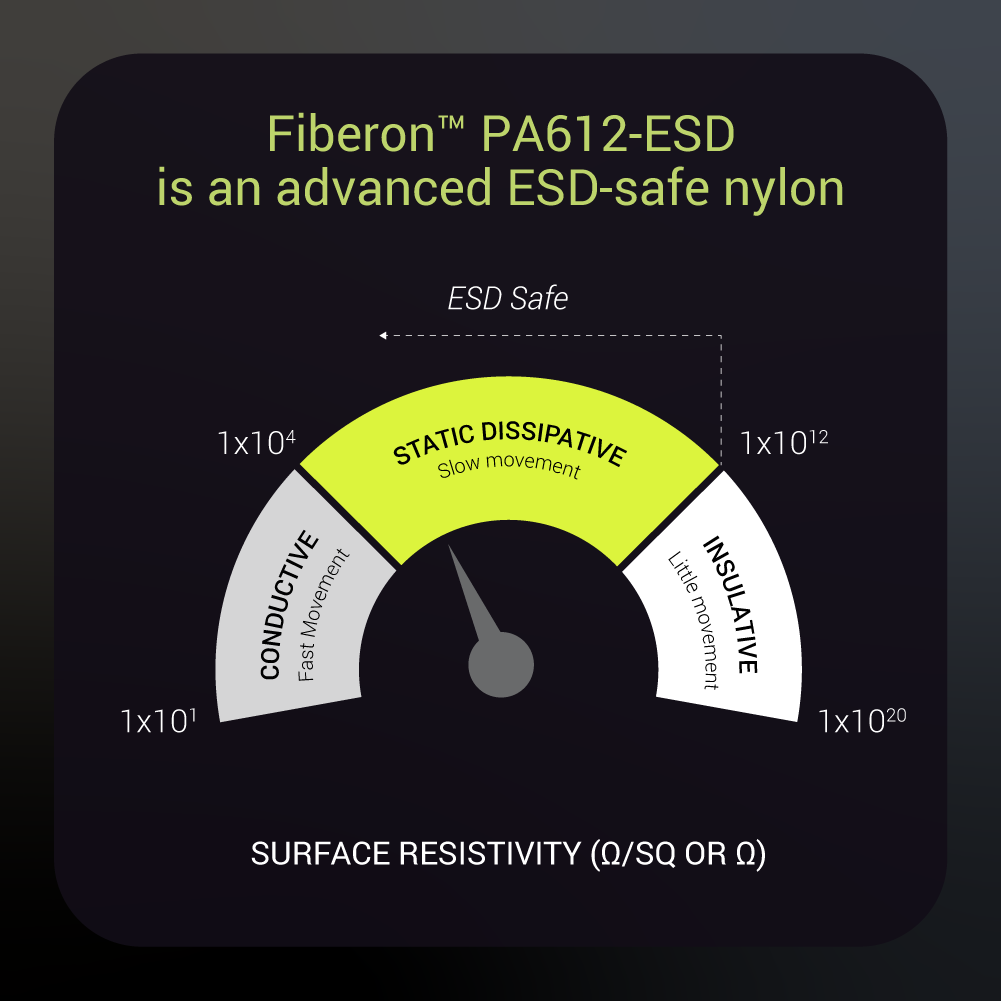

With a surface resistivity of 10⁴–10⁷ Ω/sq, Fiberon PA612-ESD protects sensitive components from static discharge—ideal for PCBs, enclosures, and cleanroom tools.

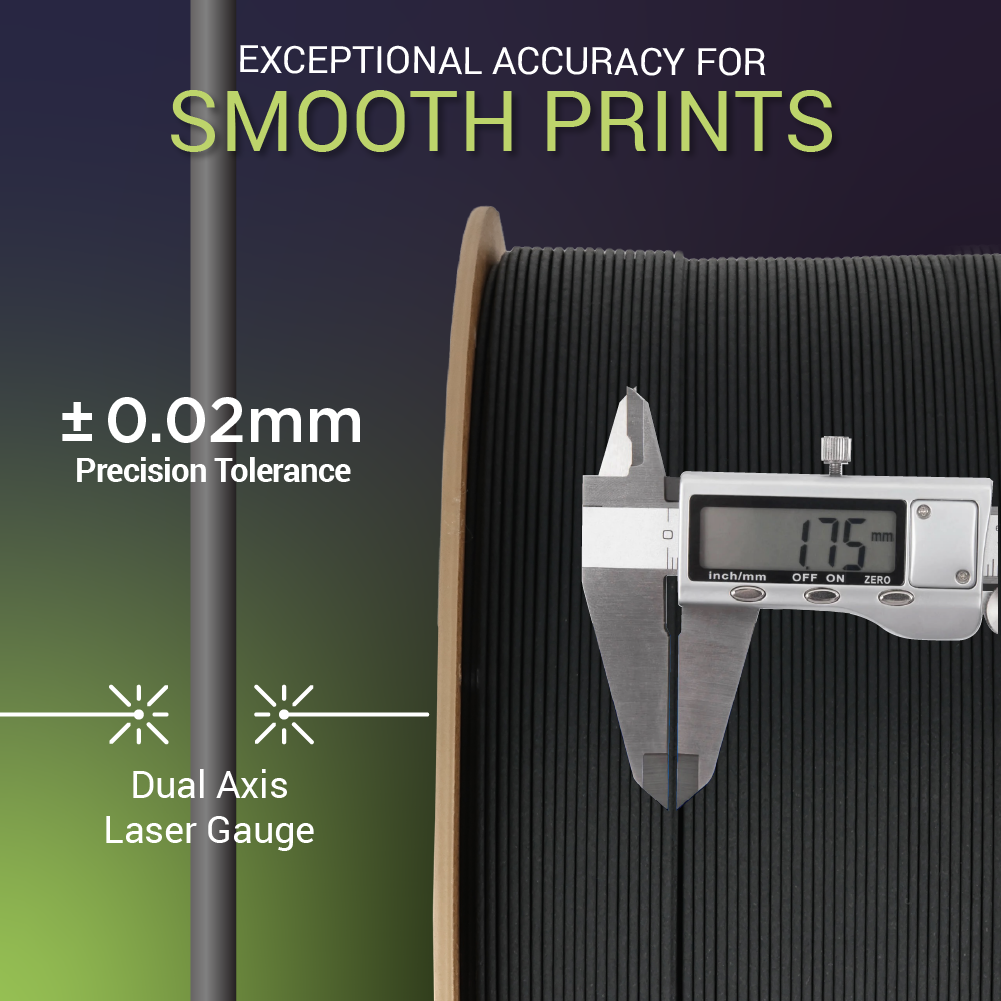

High Strength & Excellent Dimensional Accuracy
Reinforced with CNT and 10% carbon fiber, this filament delivers high stiffness, 84 MPa XY tensile strength, and consistent dimensional accuracy.

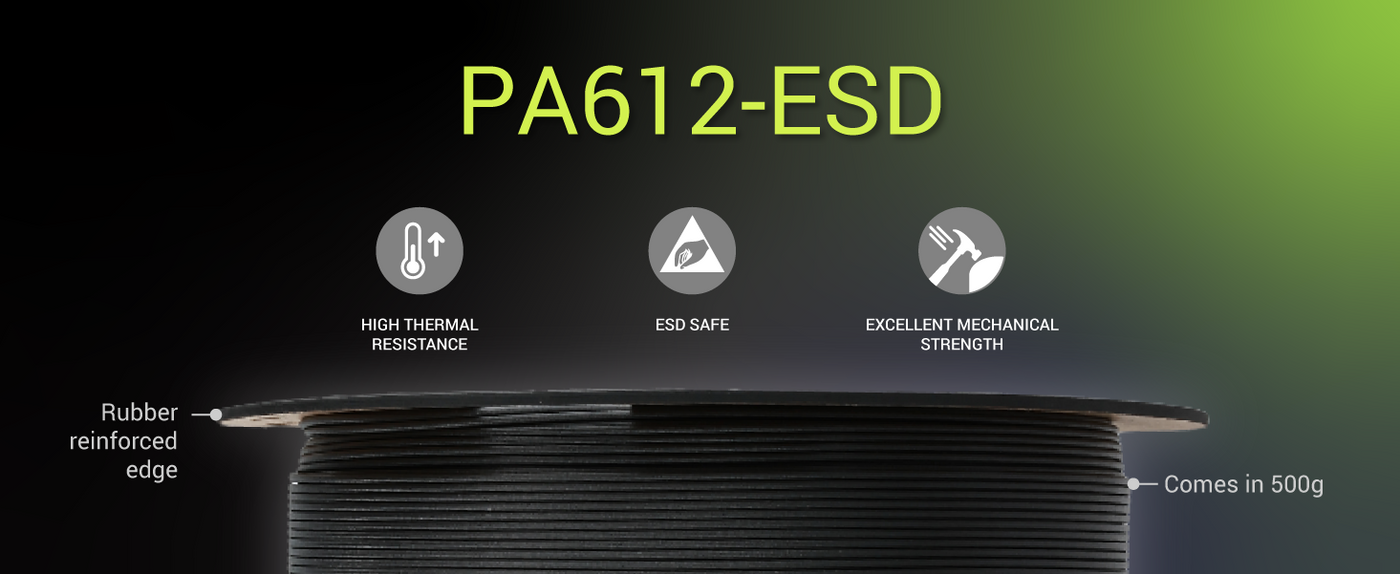

Built for High Heat
Maintain mechanical integrity in high-temperature environments with a heat deflection temperature of up to 157 °C at 0.45 MPa.

Reliable Printing, No Surprises
Prints fast—up to 300 mm/s—with low warping and excellent surface finish. Supports self-supporting structures and stays stable across long jobs.

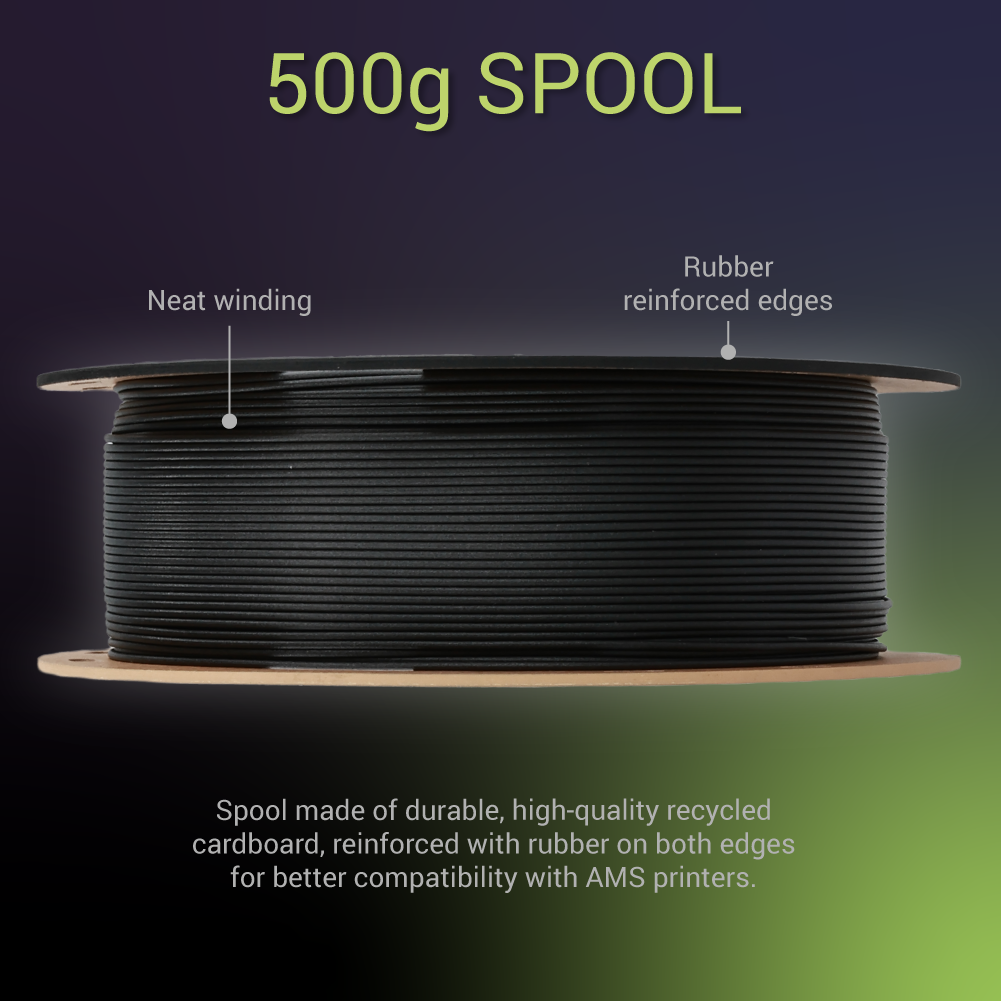

AMS Compatible, Moisture & Tangle Free

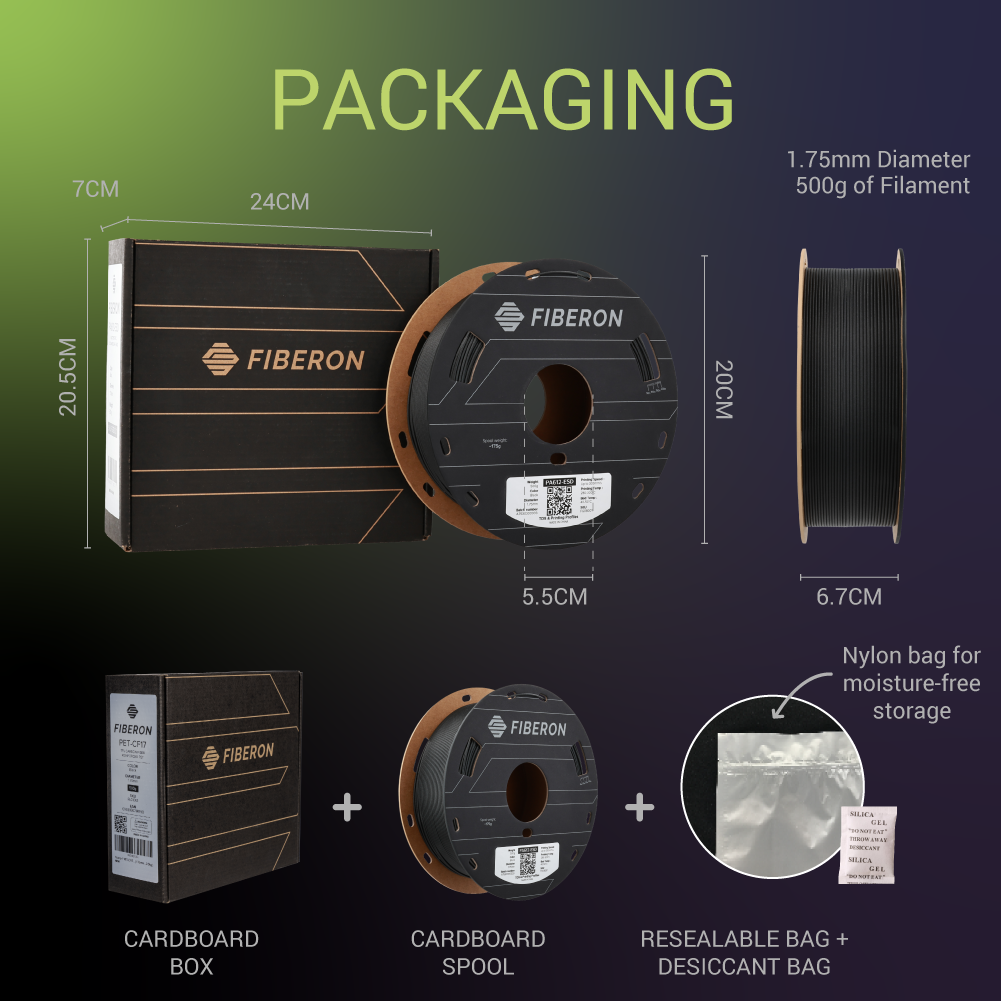

Each spool is vacuum-sealed, tangle-free, and AMS-compatible—so your prints stay smooth and your workflow uninterrupted.

Need More ESD Options?
Check out: Polymaker Fiberon PETG-ESD

NOTE: Fiberon™ PA612-ESD is compounded with carbon nano-tubes:
Here is a research regarding ABS compounded with carbon nano-tubes.

What is Fiberon™ PA612-ESD?

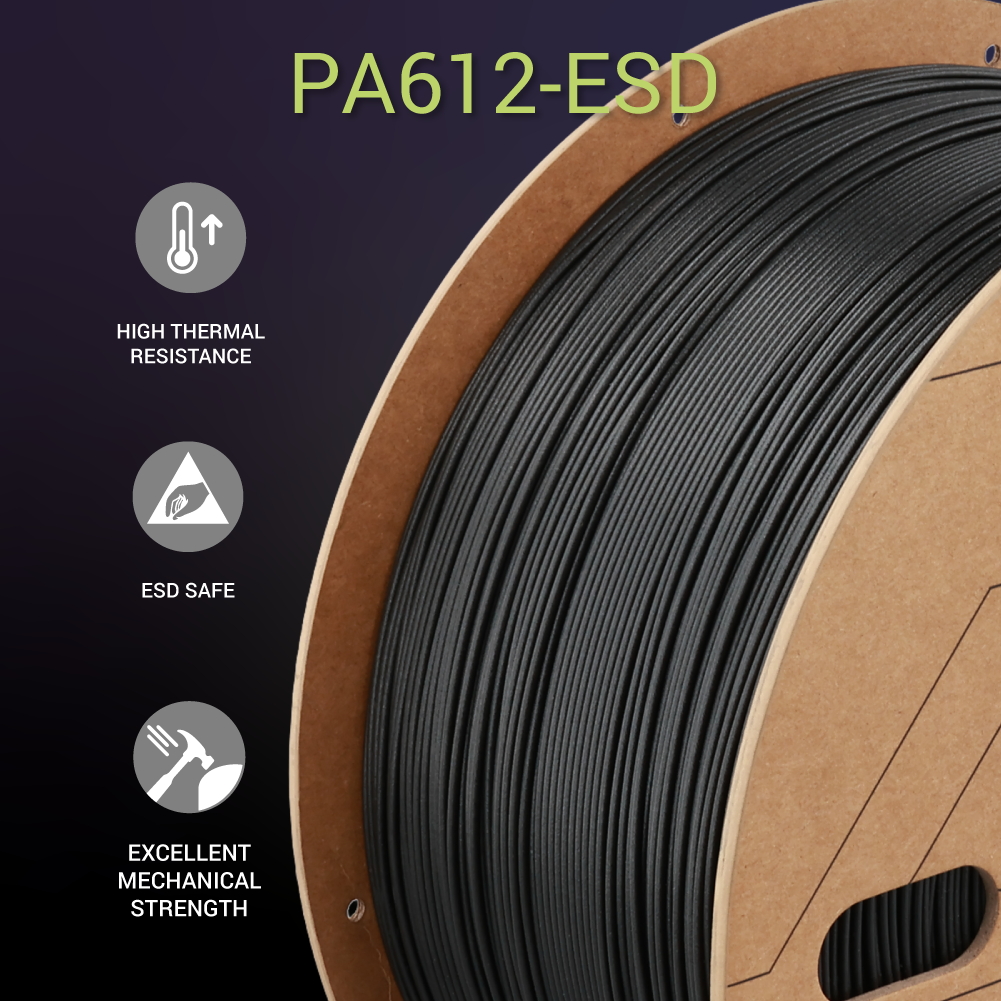

Fiberon™ PA612-ESD is an advanced ESD-safe nylon filament engineered for demanding applications requiring high mechanical strength, heat resistance, and reliable static dissipation. It is reinforced with 10% carbon fiber and designed for industrial environments.

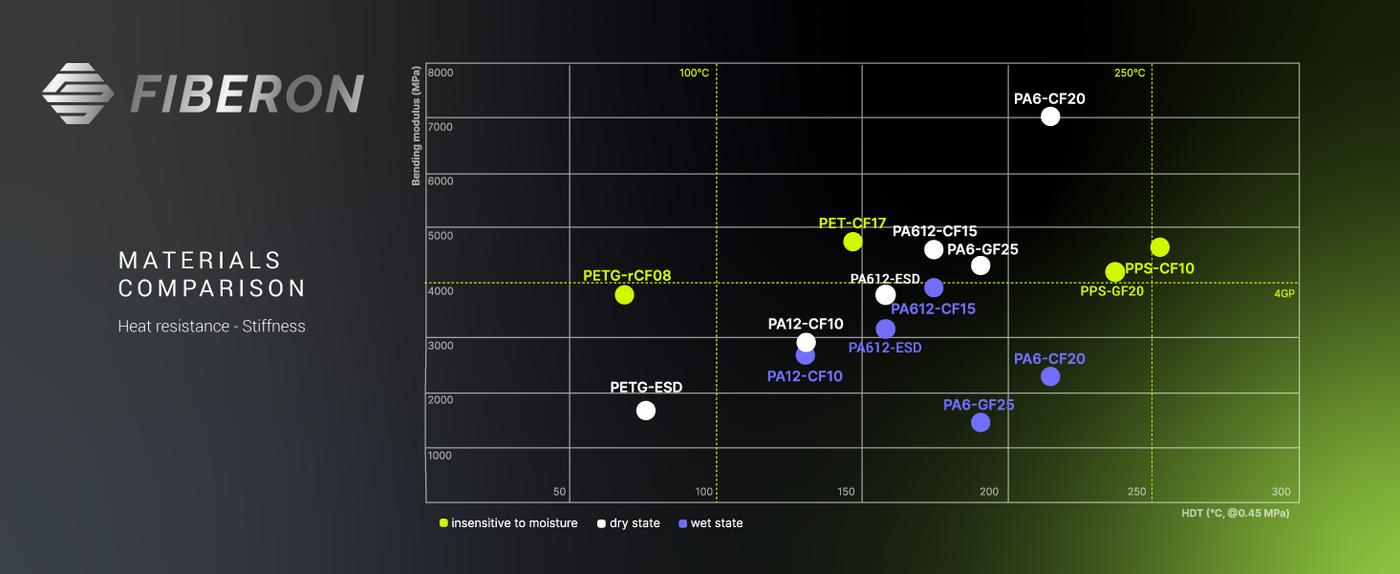

What makes this different from PETG-ESD?
Compared to PETG-ESD, PA612-ESD offers:
• 2× higher heat resistance (up to ~150°C HDT)
• Significantly greater mechanical strength and rigidity
• Better wear resistance in cleanroom and friction-heavy applications
• Lower moisture absorption for more stable long-term performance

What are the ideal use cases for PA612-ESD?
This filament is ideal for:

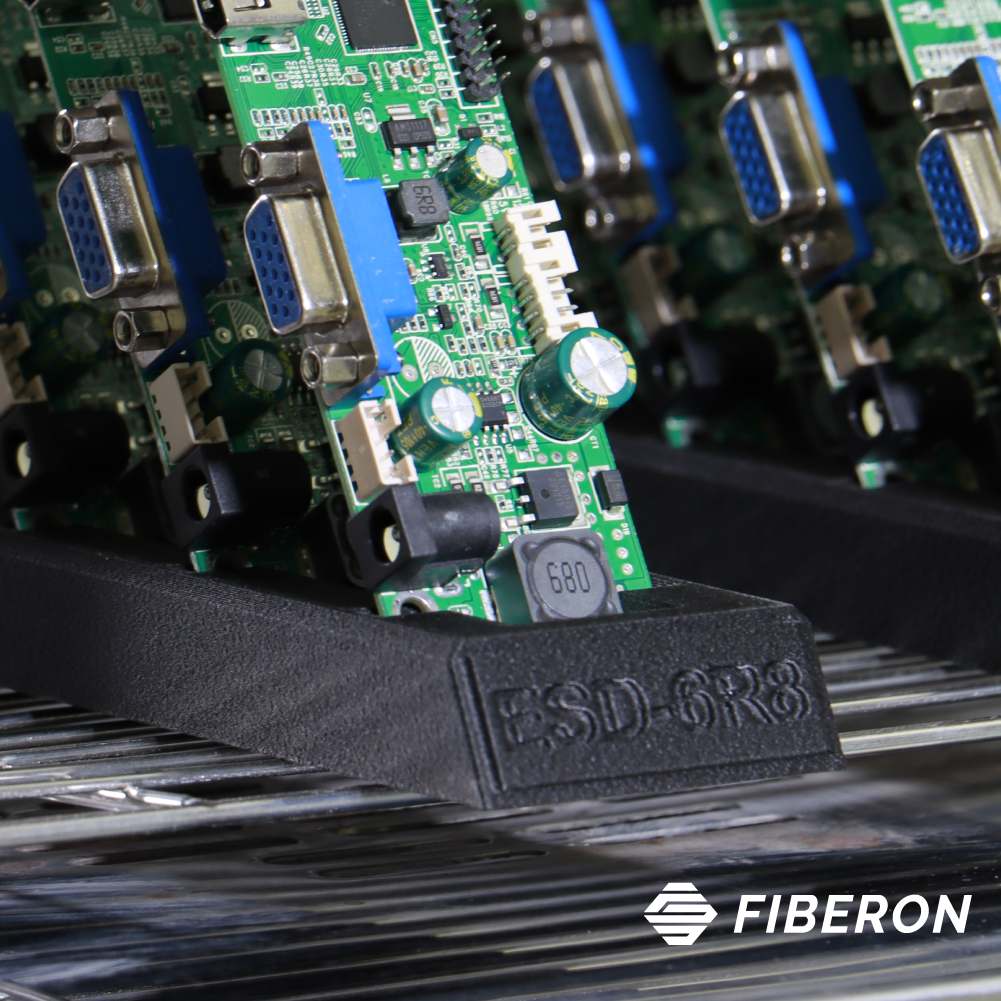

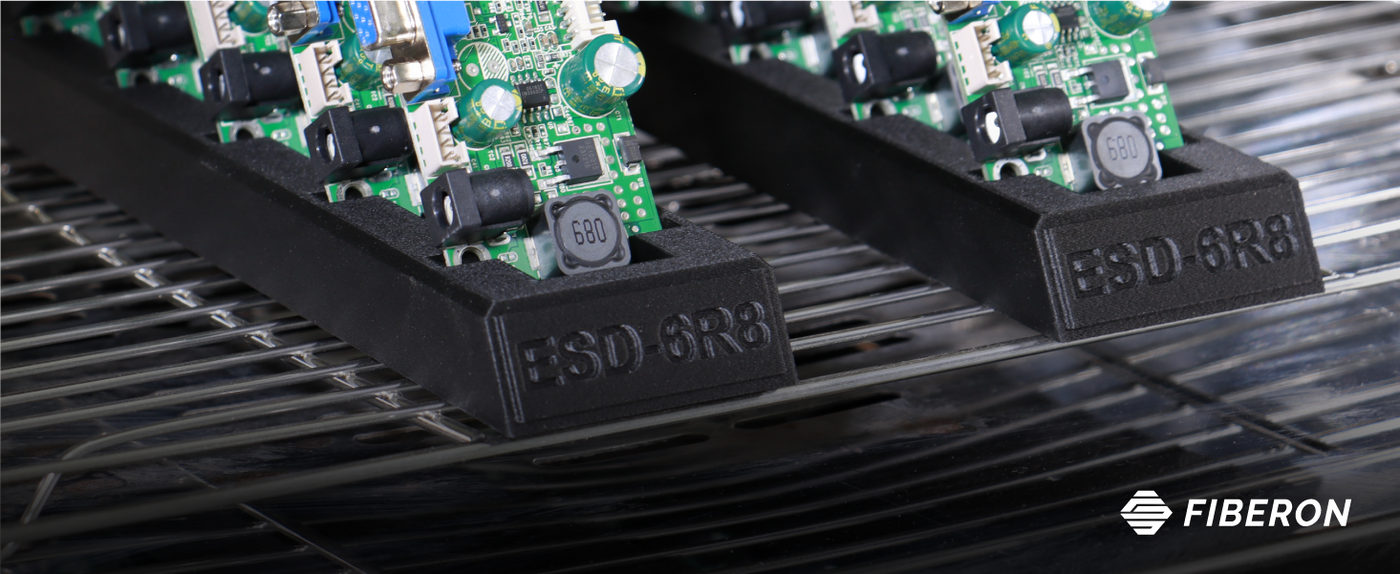

• PCB storage boxes
• ESD-safe shelves and racks

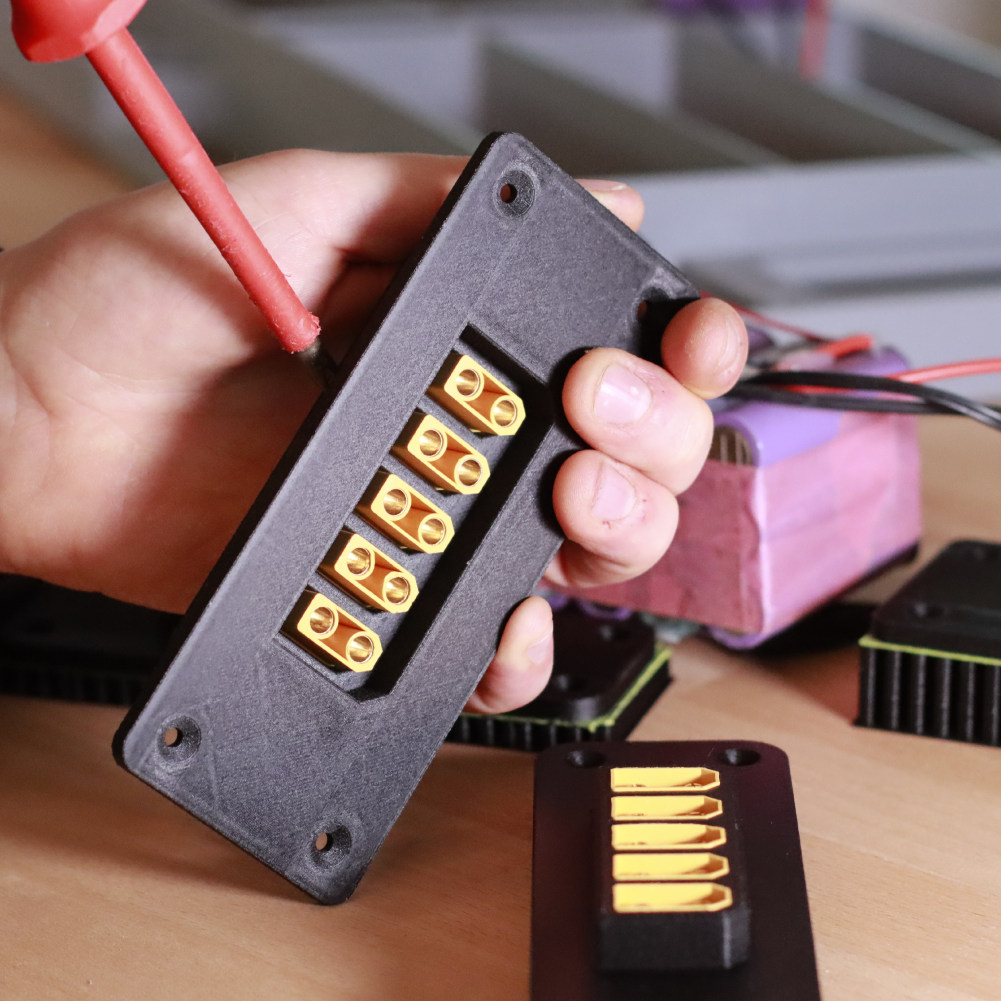

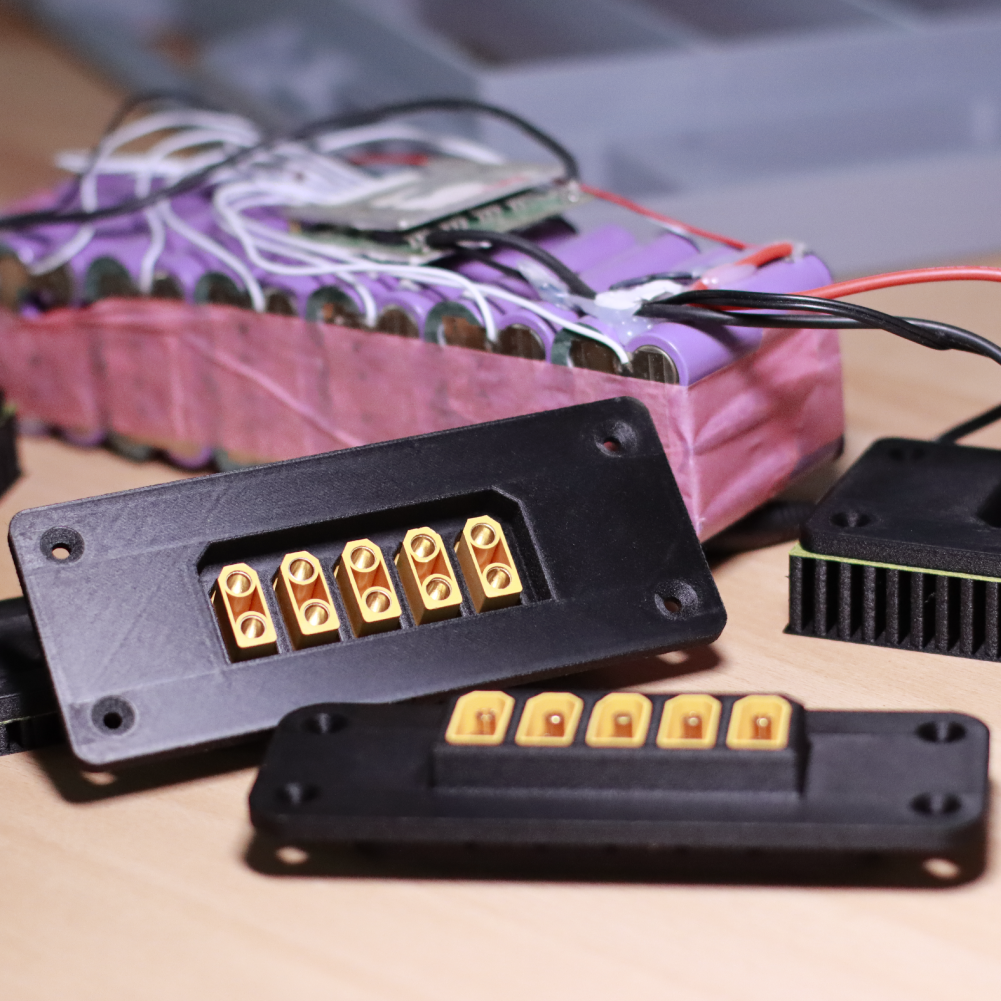

• High-temperature electronic housings
• Structural components for cleanrooms
• Industrial jigs and fixtures

What are the printing recommendations?
• Nozzle Temp: 280–300°C
• Bed Temp: 40–50°C
• Dry before printing: 100°C for 10–16h
• Use a hardened steel or ruby nozzle to avoid wear

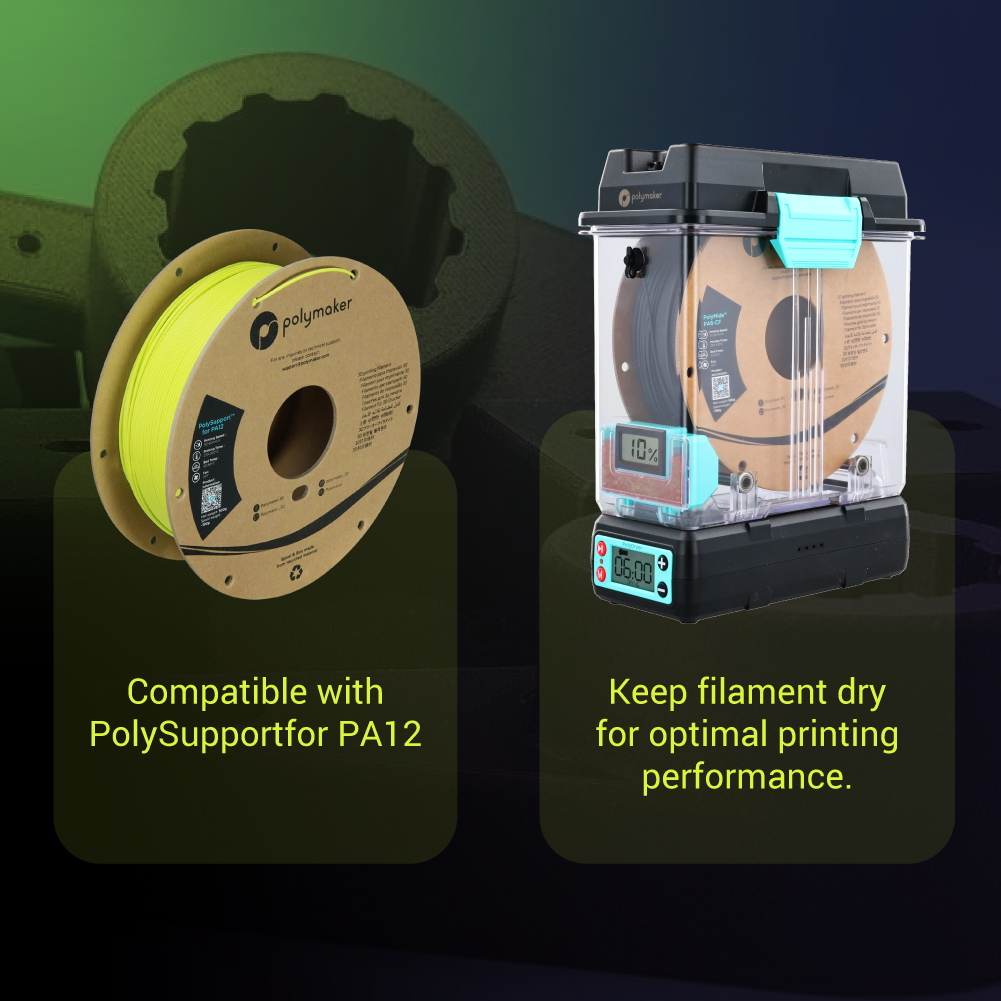

• Recommended support: PolySupport™ for PA12

Is PA612-ESD moisture sensitive?
Yes. Like most nylons, PA612-ESD is hygroscopic and should be kept dry during storage and printing. Use a dry box or dry it before use. Wet filament will impact surface quality and dimensional accuracy.

Is it AMS compatible?

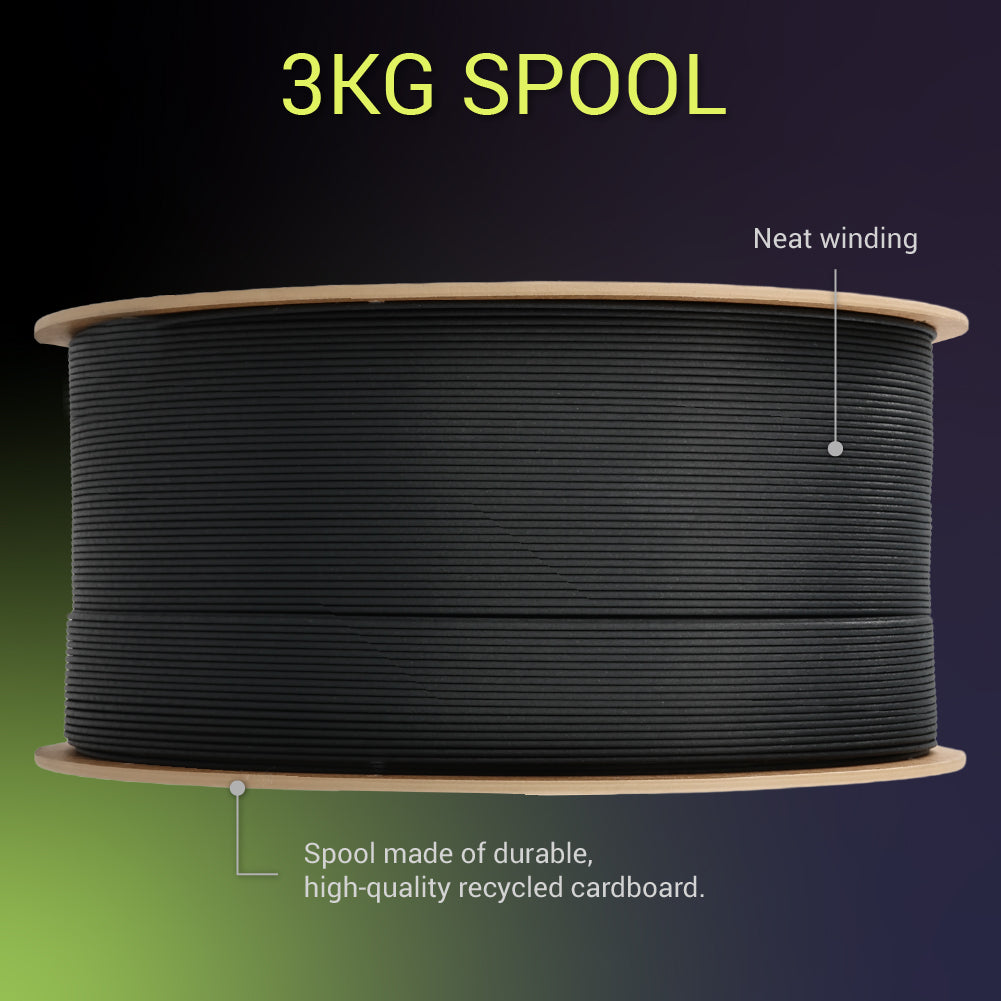

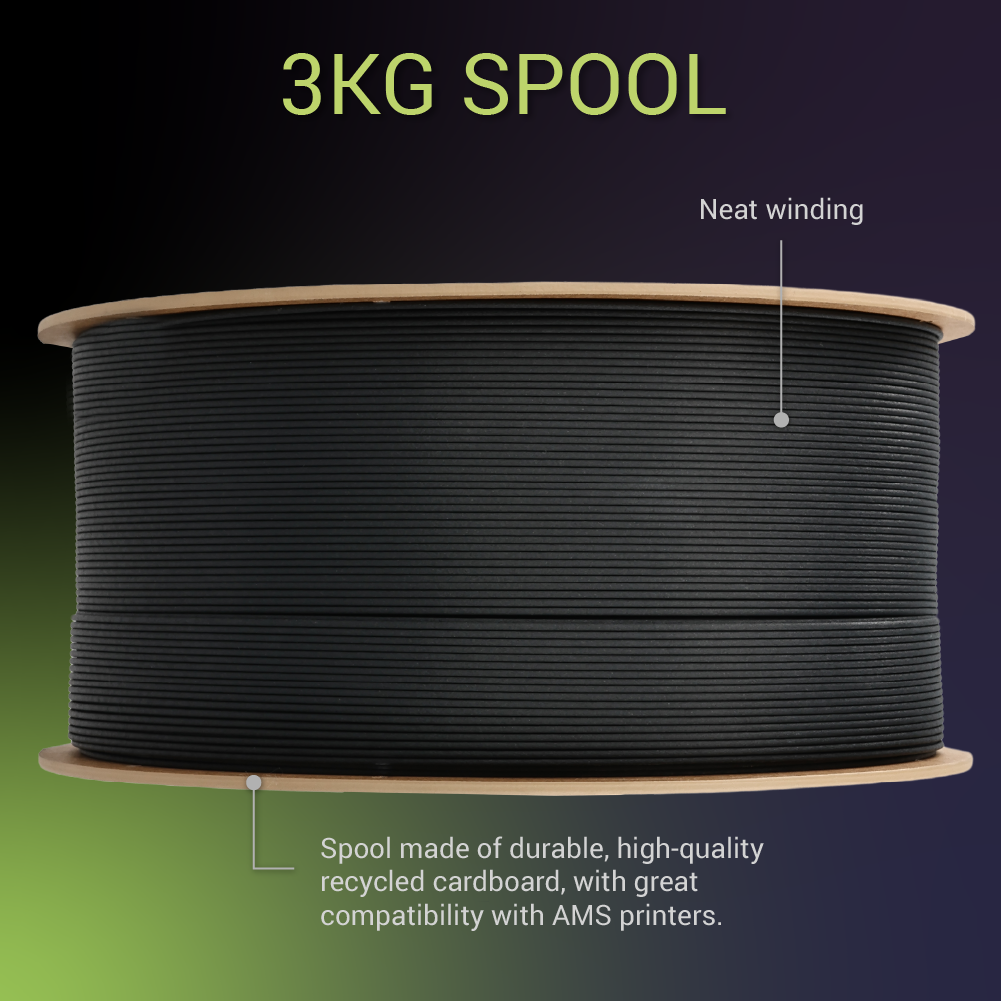

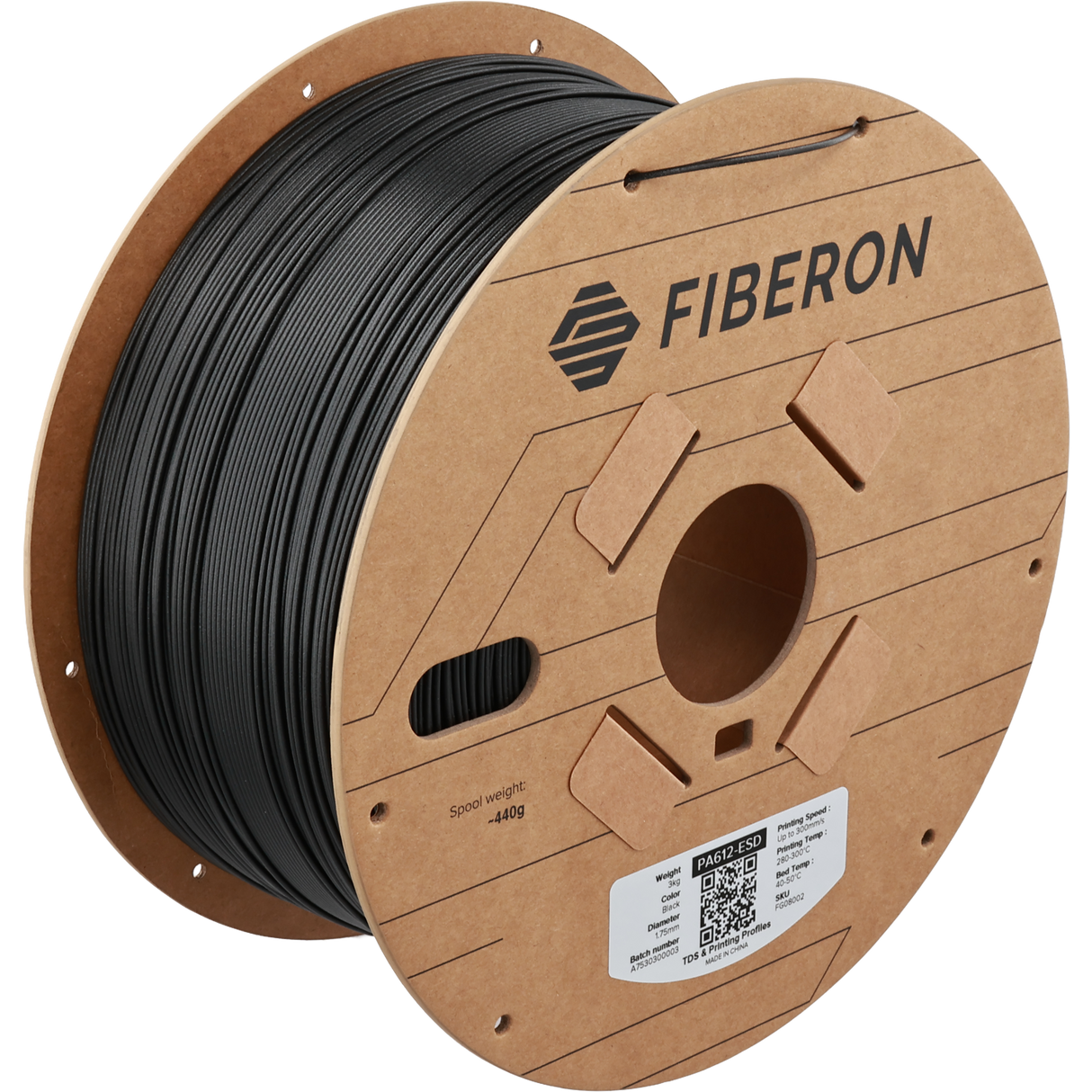

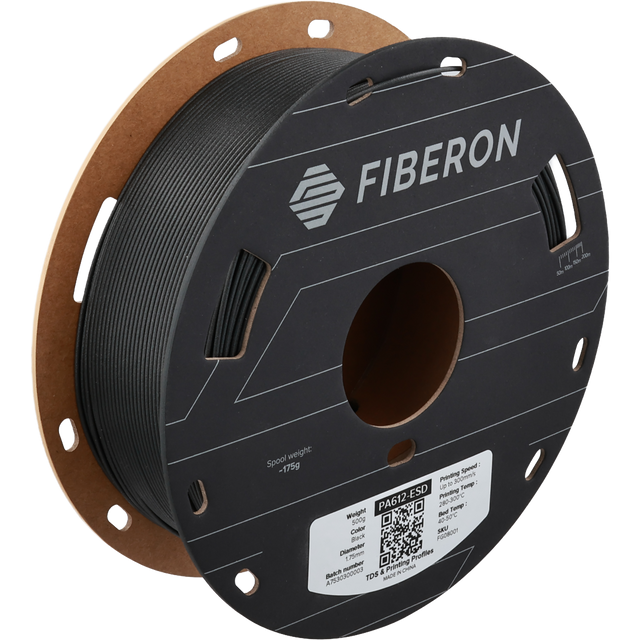

Yes. PA612-ESD is available in a 1kg format suitable for AMS systems. It is also offered in 500g and 3kg spools depending on your use case. The 3kg spool will not fit in popular multi-material systems.

What kind of ESD protection does it offer?
Surface resistivity ranges from 10⁴ to 10⁷ Ω/sq depending on temperature and print orientation, ensuring safe static dissipation for sensitive electronics.

Can I use this filament for high-speed printing?
Yes. PA612-ESD supports up to 300mm/s print speeds when properly dried and printed with compatible hardware like the Bambu X1C.

Is this filament flame retardant?
No. PA612-ESD is not rated as UL94 V0 flame retardant. If flame resistance is required, consider PPS-ESD or other FR-certified materials.

Printing Requirements

All-metal hotend 280˚C+
Hardened nozzle
Annealing post printing
You may need a filament dryer depending on the humidity of your environment. Keep dry when not in use.
