PolySmooth™

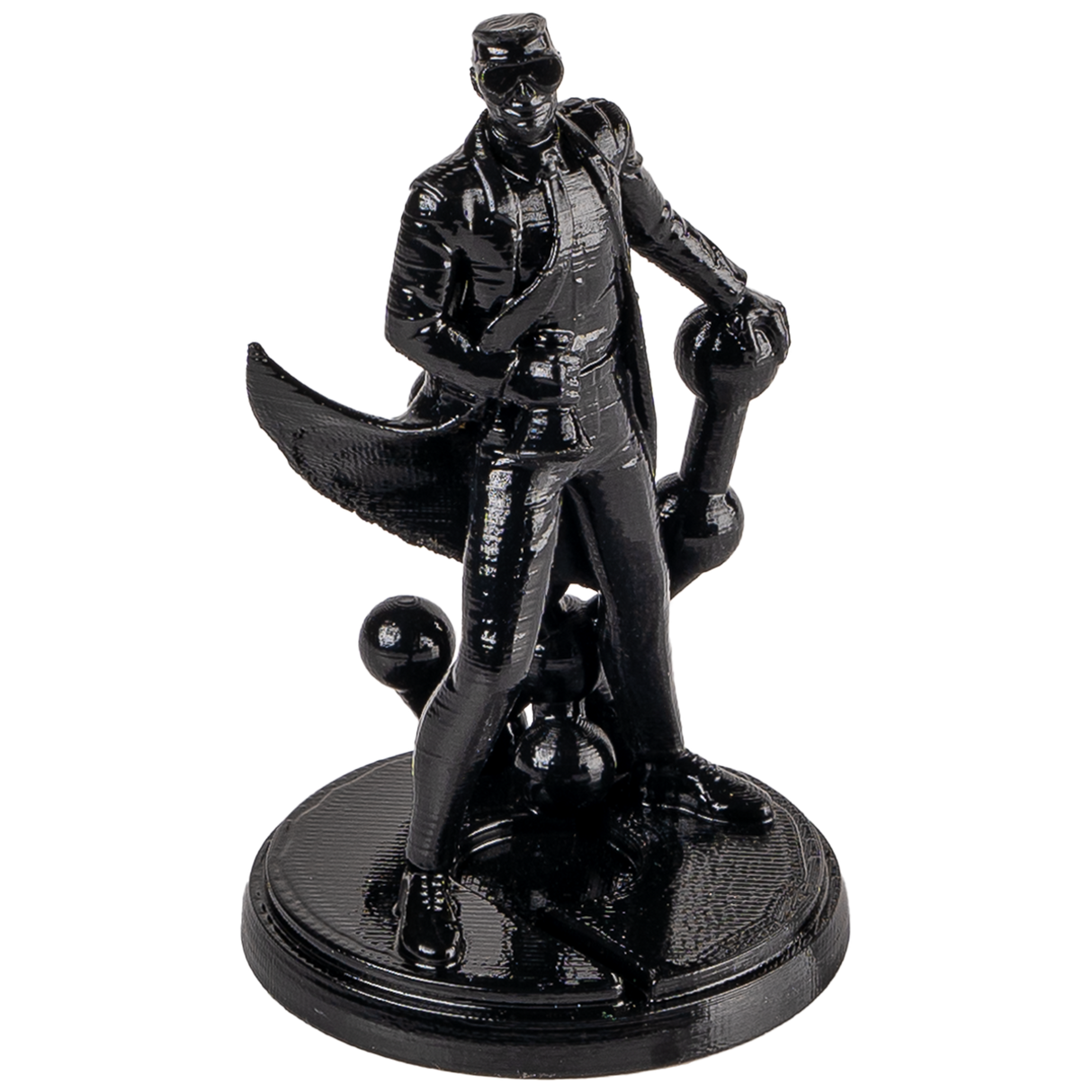

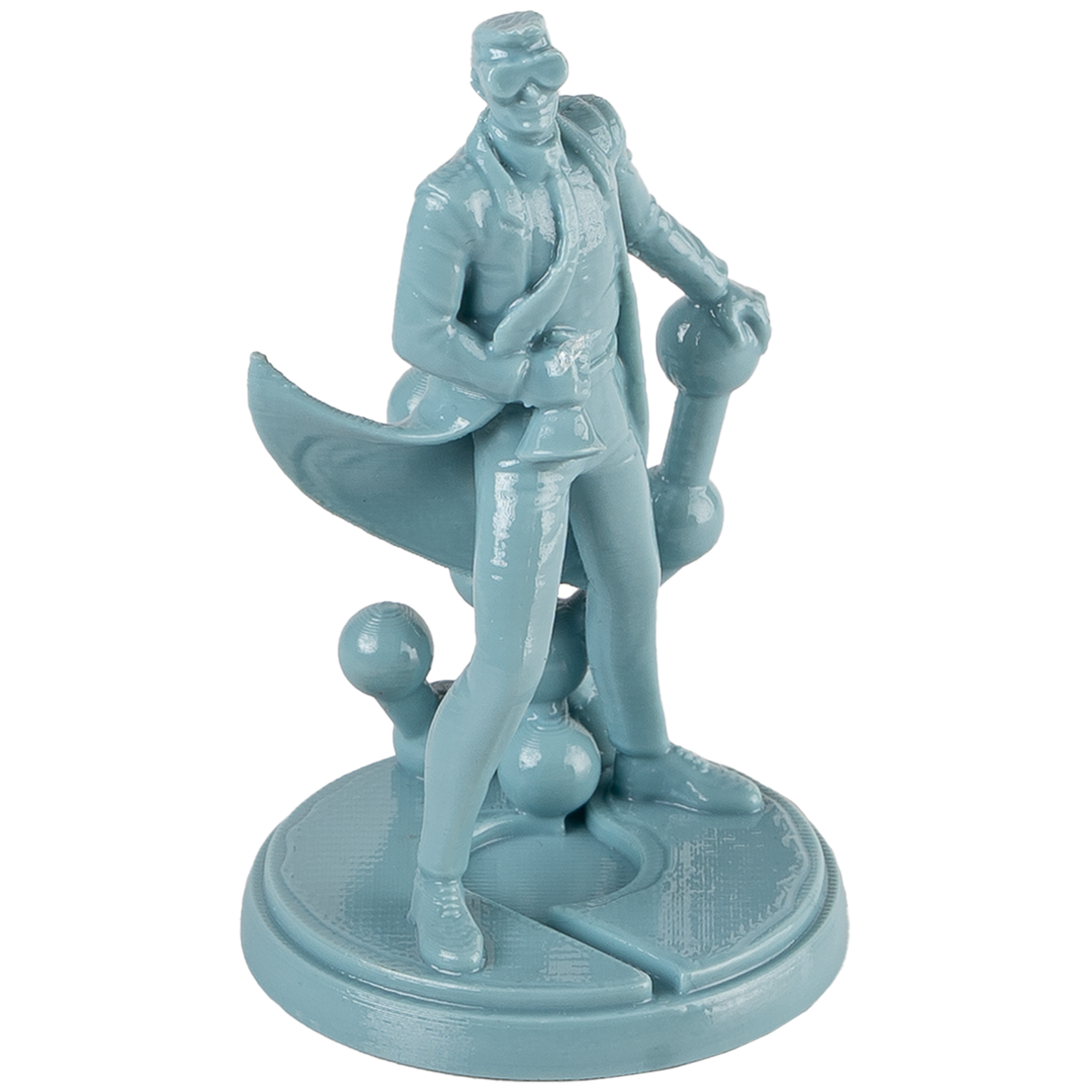

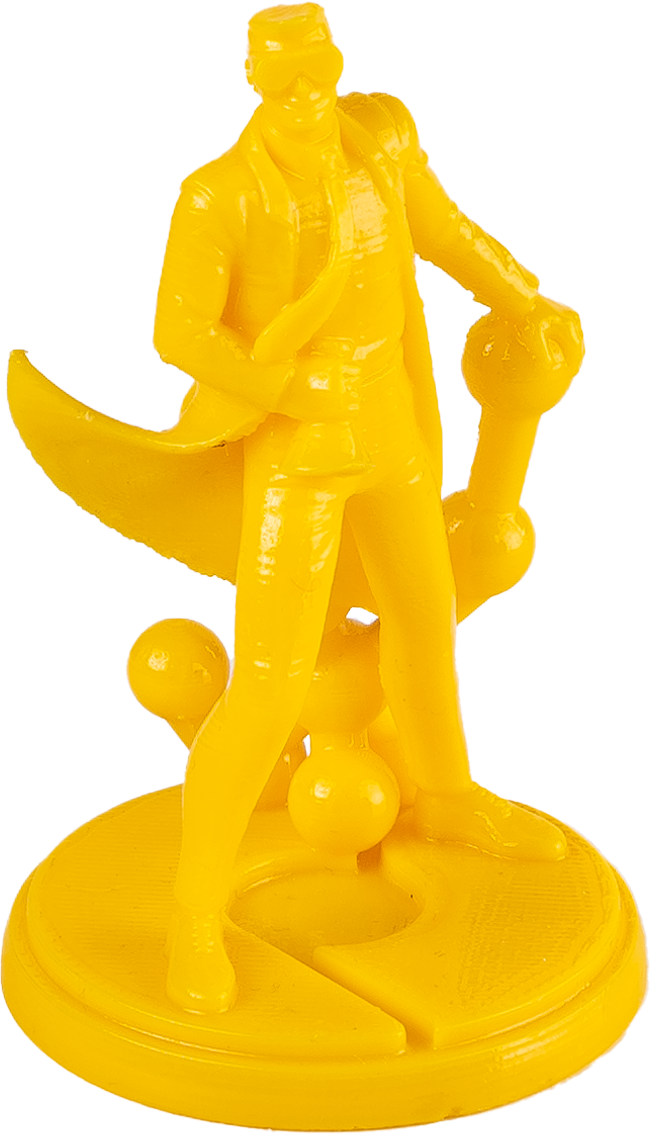

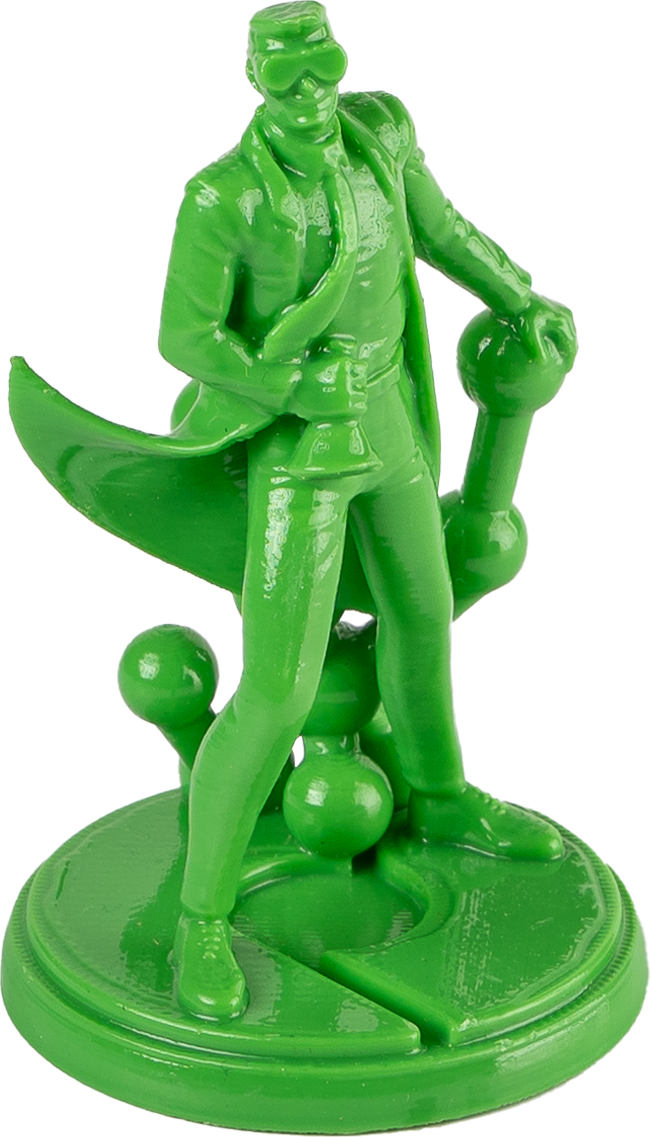

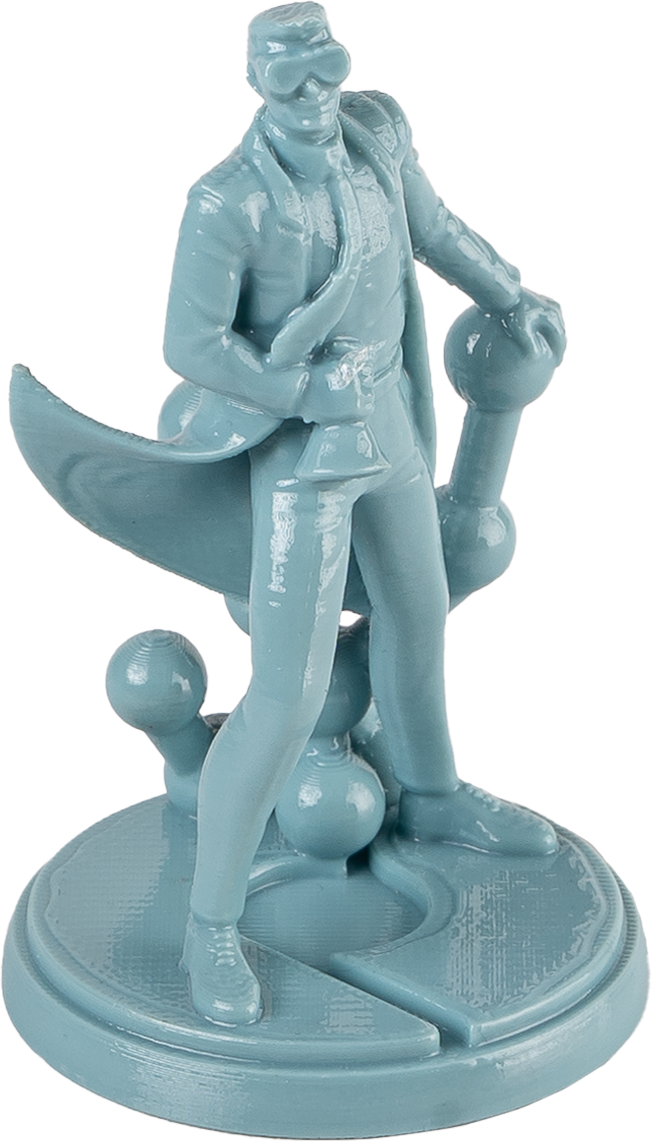

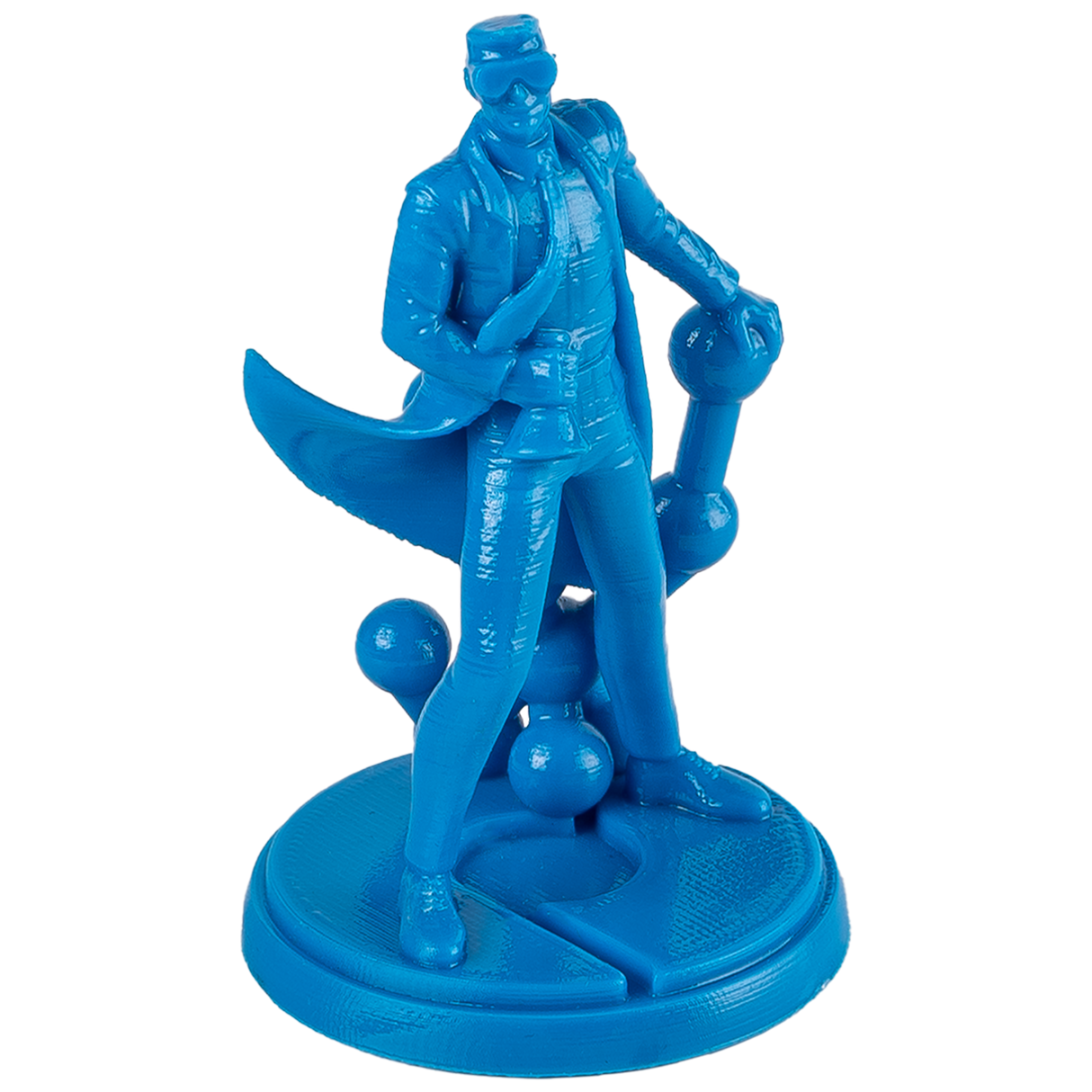

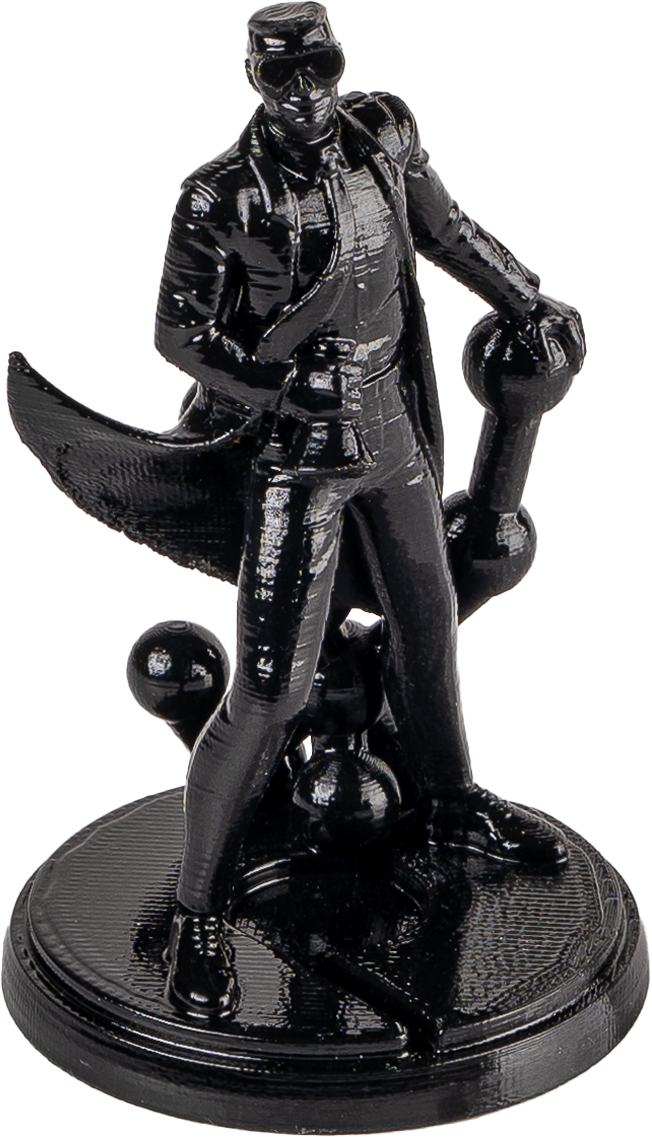

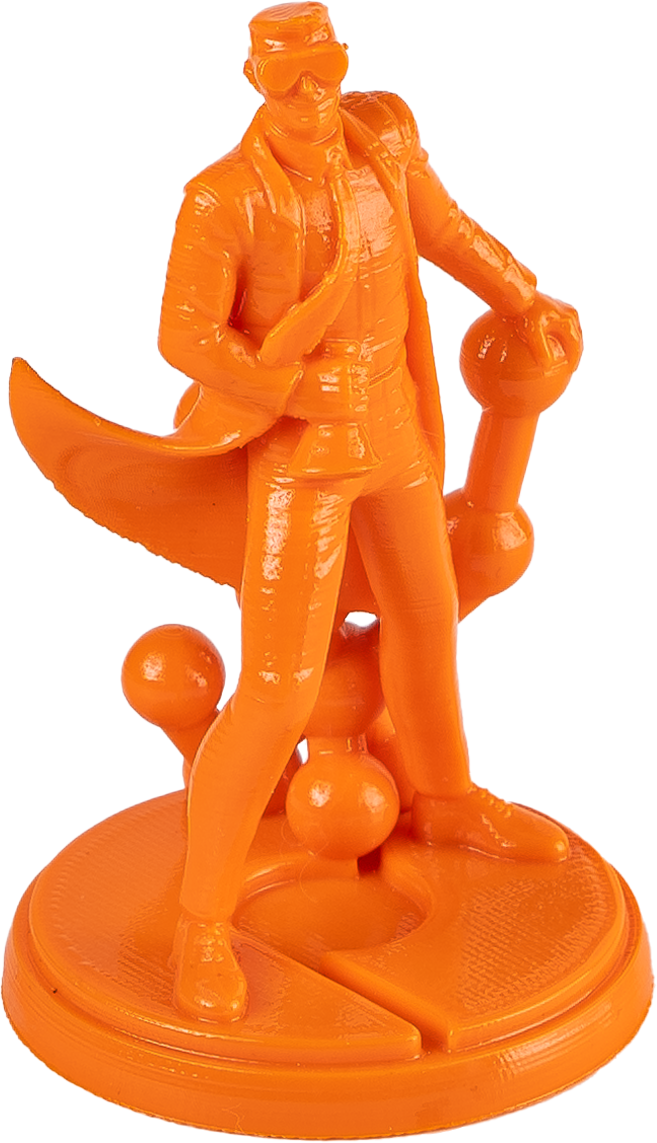

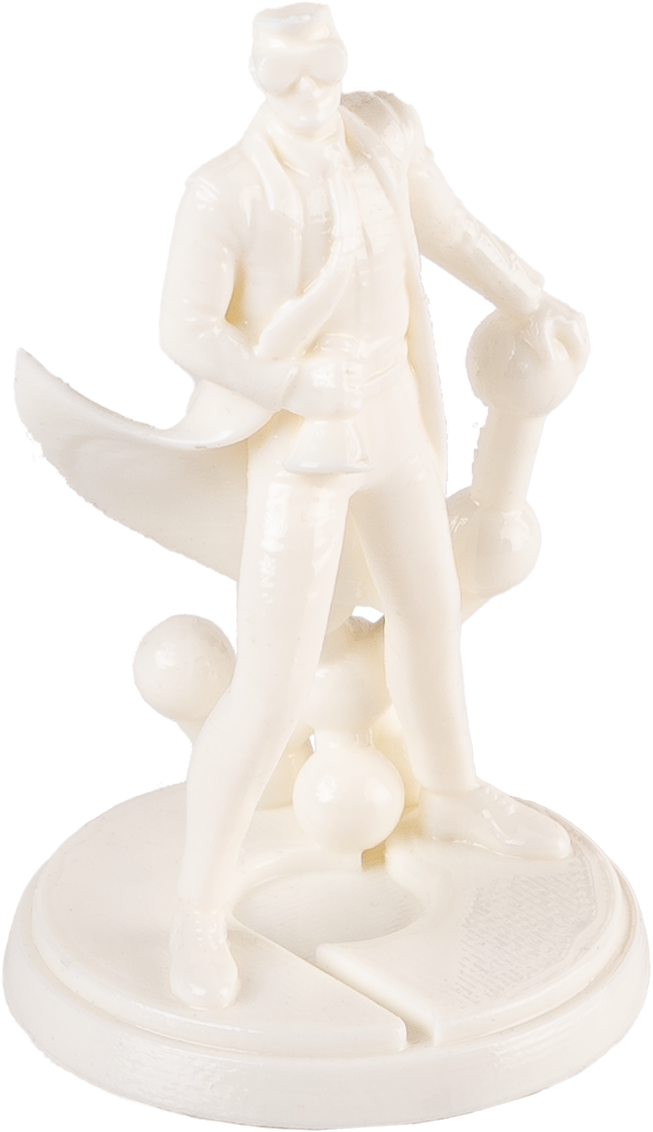

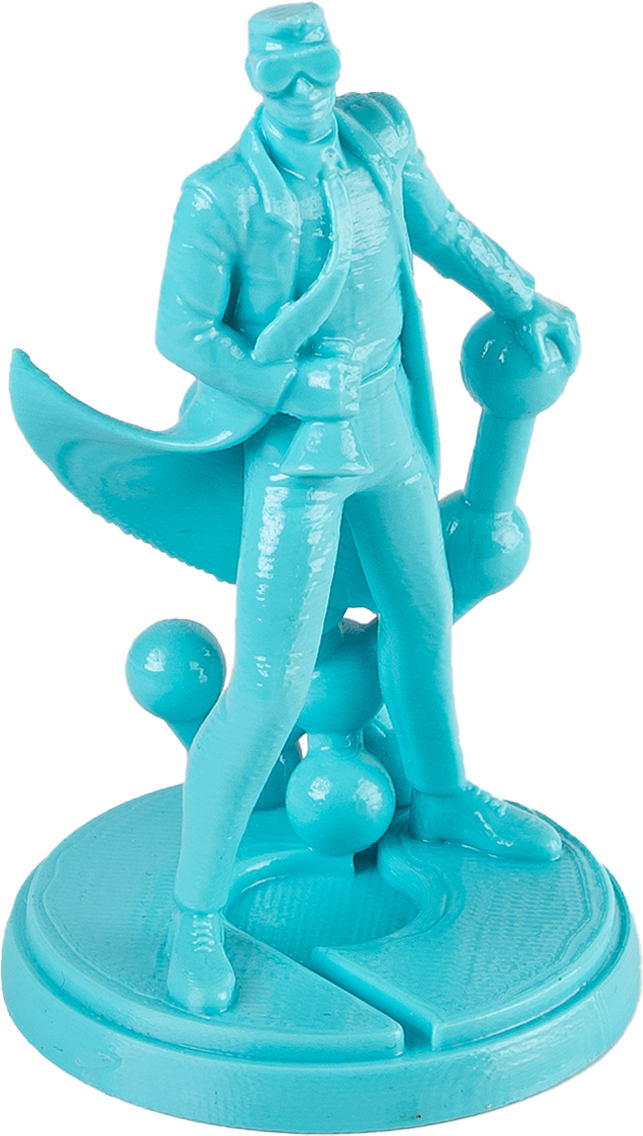

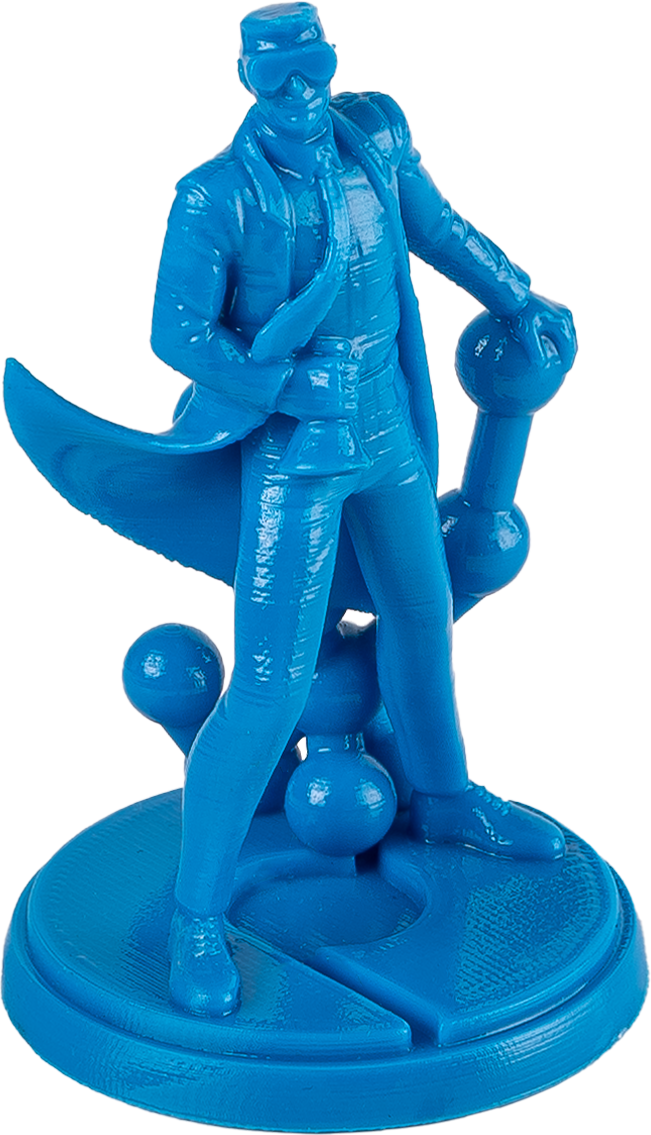

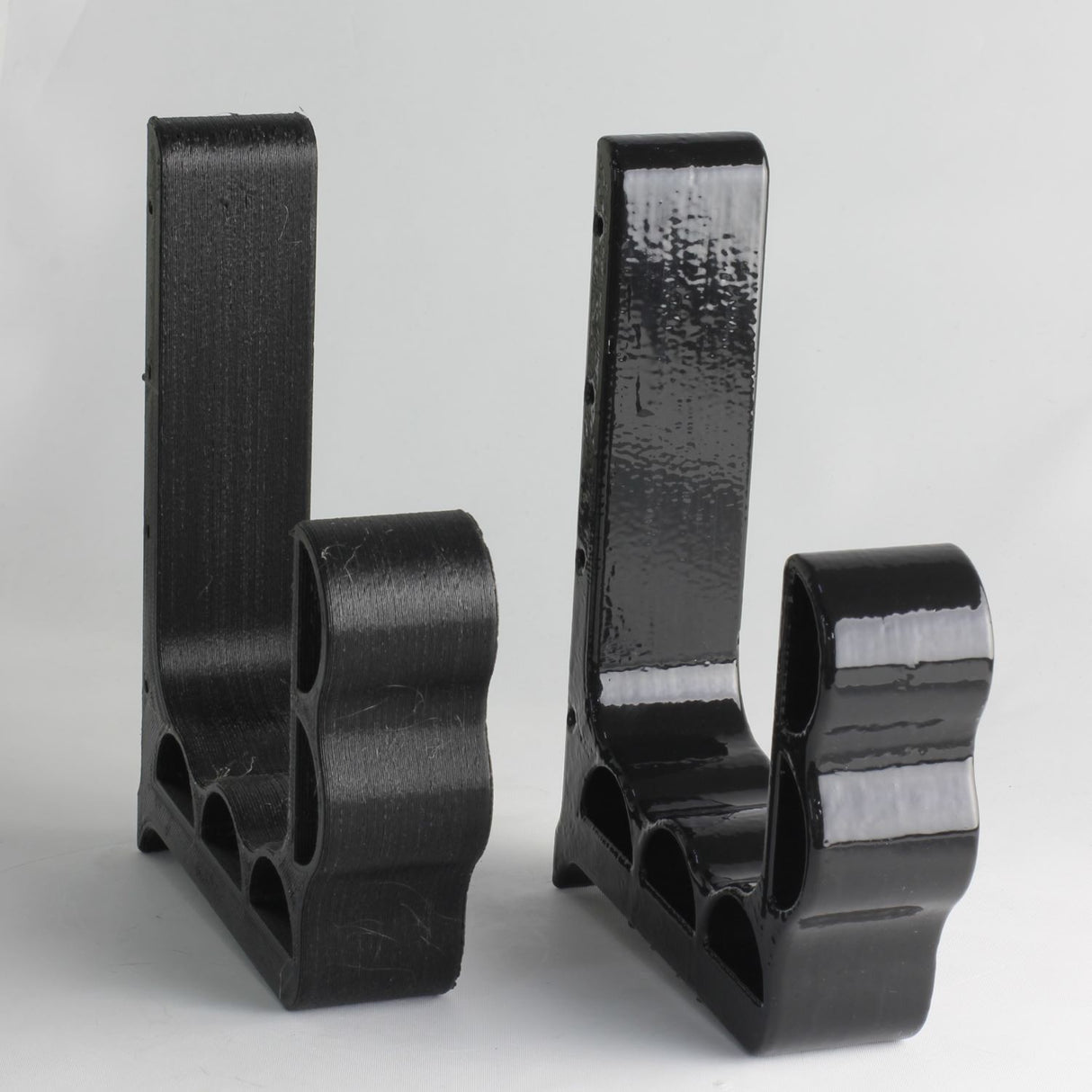

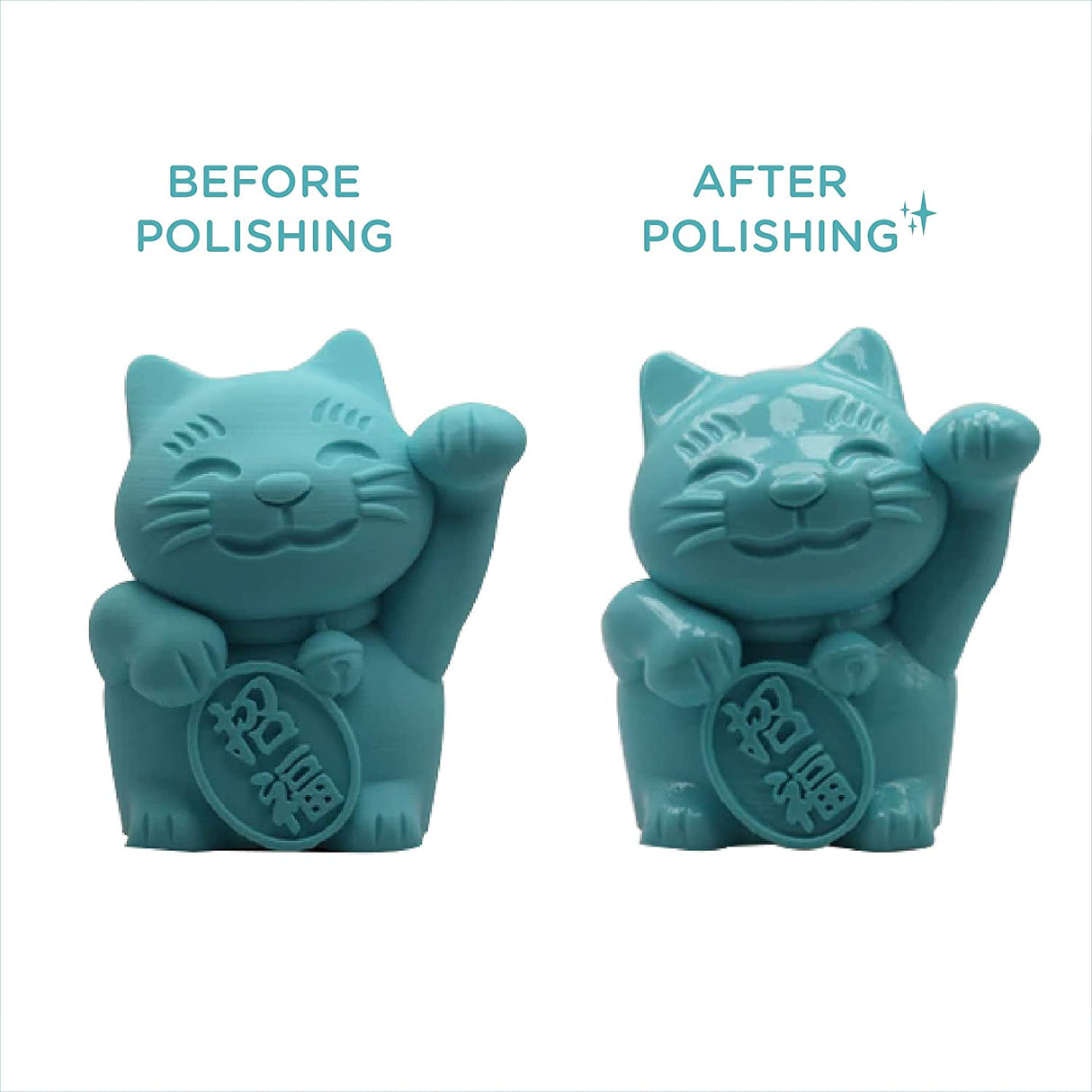

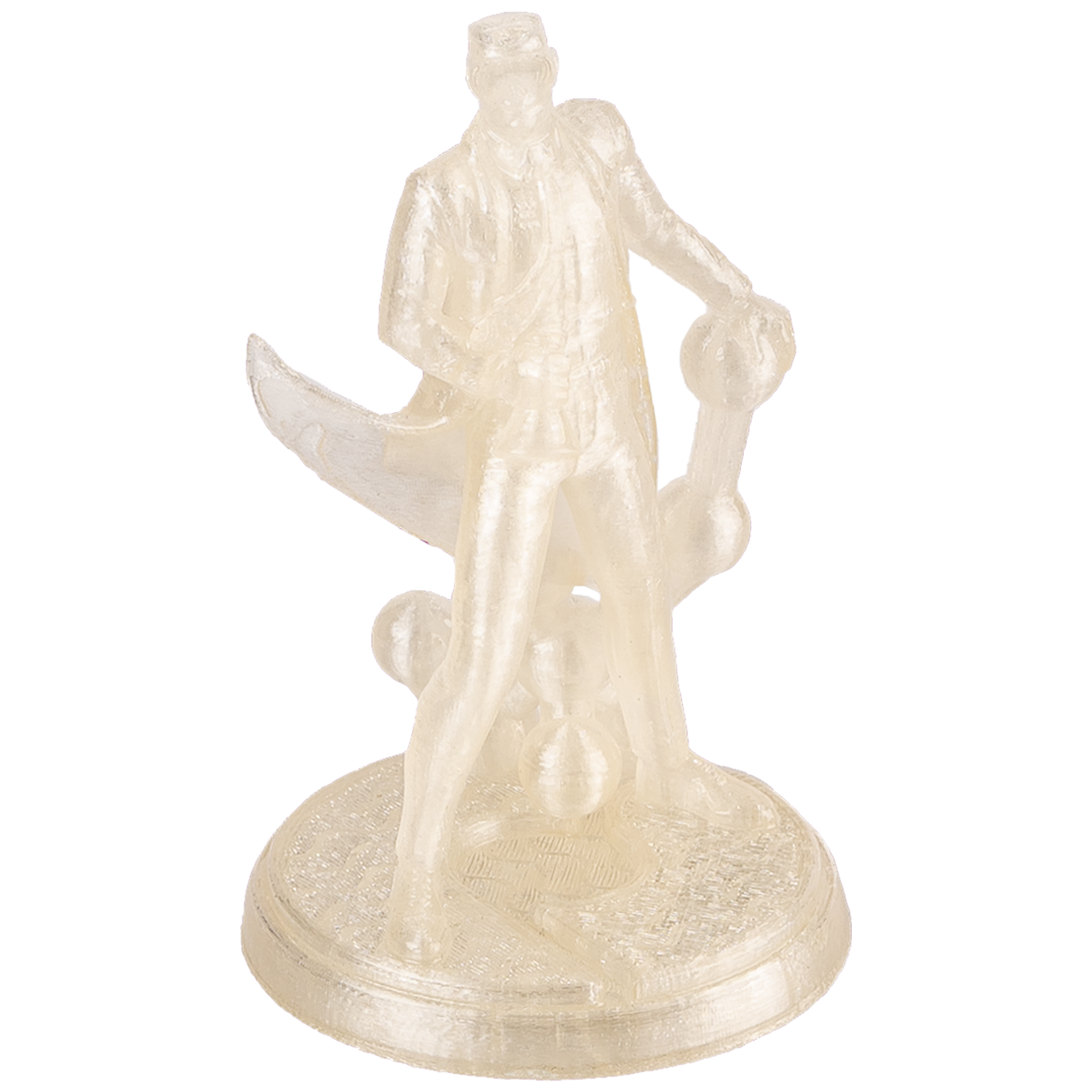

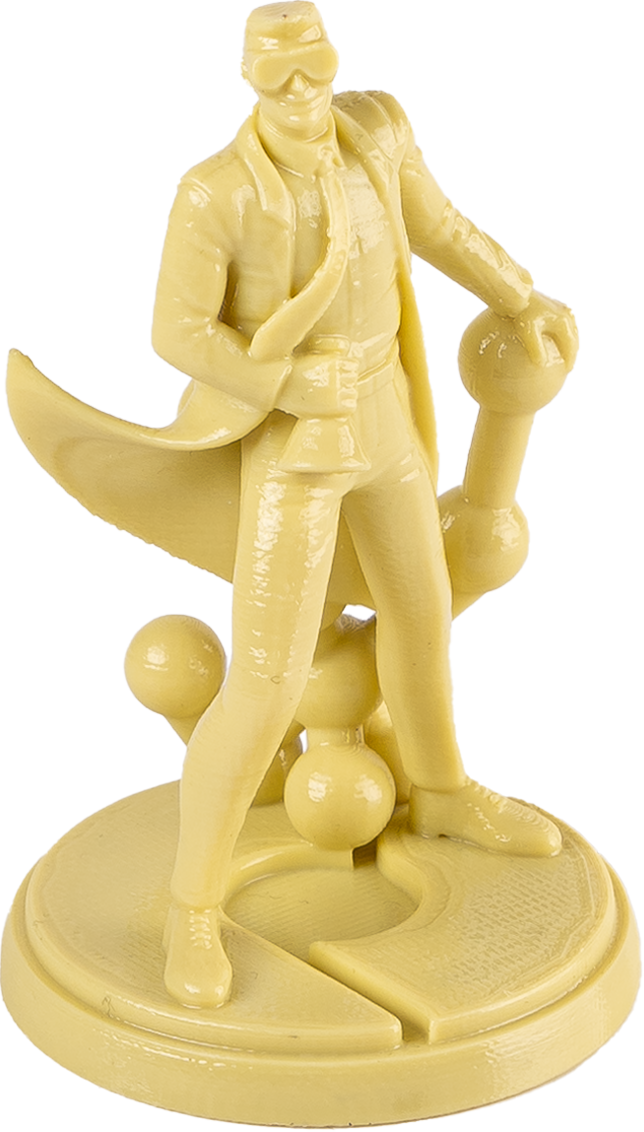

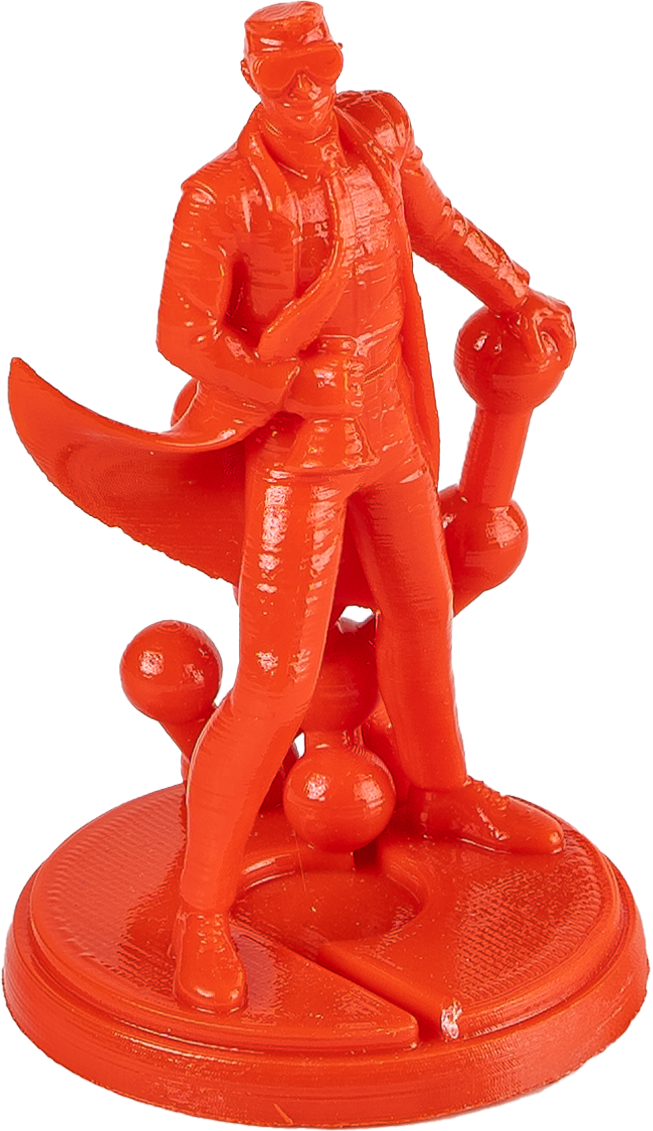

PolySmooth™ can be smoothed with IPA using 2 methods:

1) Using the Polysher™ (less labor intensive, safer, more consistent and reliable results)
2) Spraying IPA with a spray bottle using our Polishing Kit

For 2) we recommend spraying a thin coat of IPA on the surface of your PolySmooth™ model and let it dry for 15-20min and cycle these 2 steps until the desired smoothness.
CAUTION: Proceed in a well ventilated area to avoid inhaling IPA vapors.

Printing Temperature: 190˚C - 220˚C
Bed Temperature: 25˚C - 70˚C
Printing Speed: 30mm/s - 60mm/s
Fan: ON

Direct Drive:
Retraction Distance: 1mm
Retraction Speed: 20mm/s
Indirect Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s

Drying Settings: 50˚C for 12h
(Only if the material has absorbed moisture)

No, although PolySmooth™ prints with similar settings as PLA, PolySmooth™ is PVB based.
PVB is more hygroscopic than PLA so it requires a dry box however it can be post processed very easily with IPA for smoother surface finish.

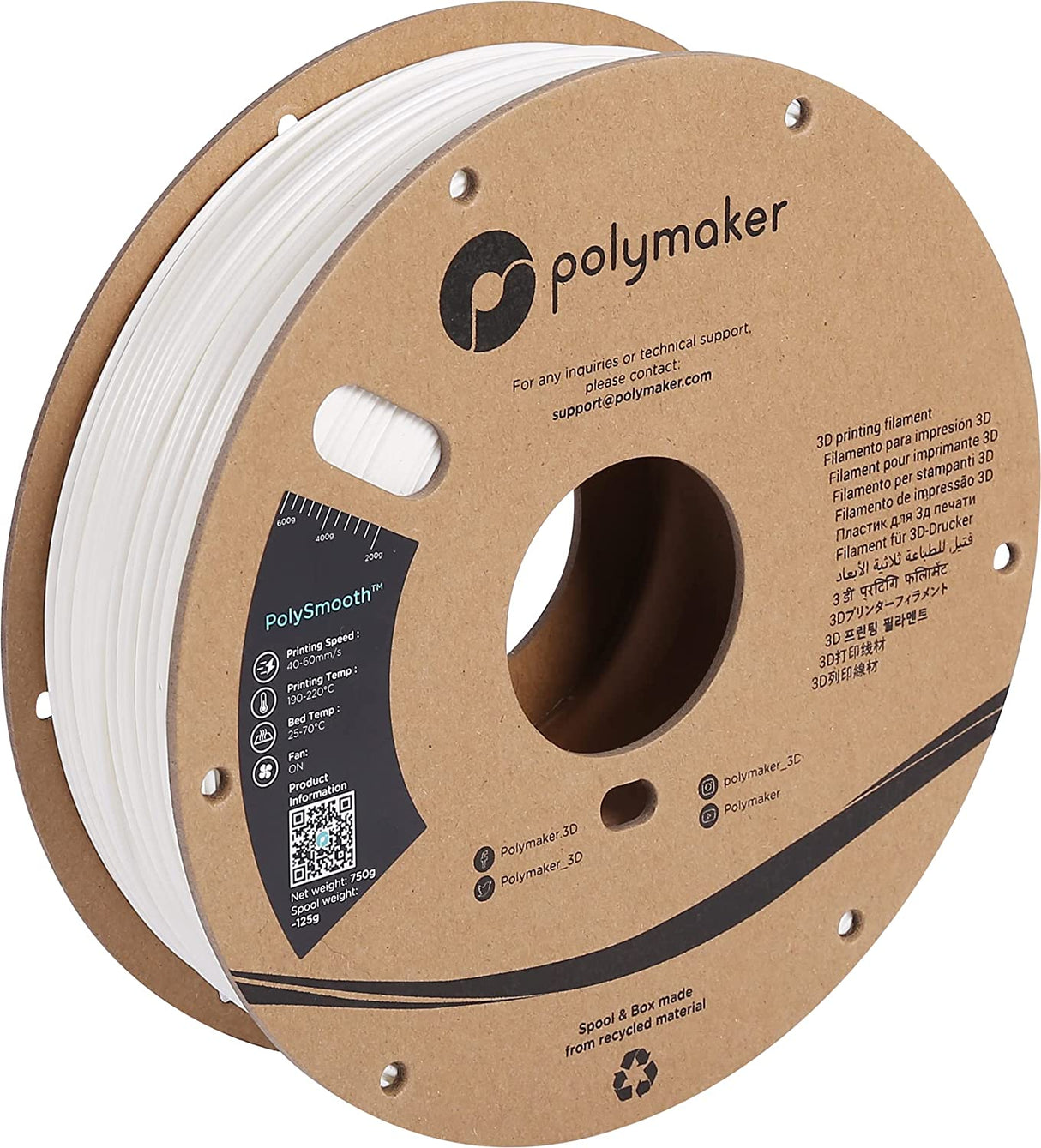

0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g

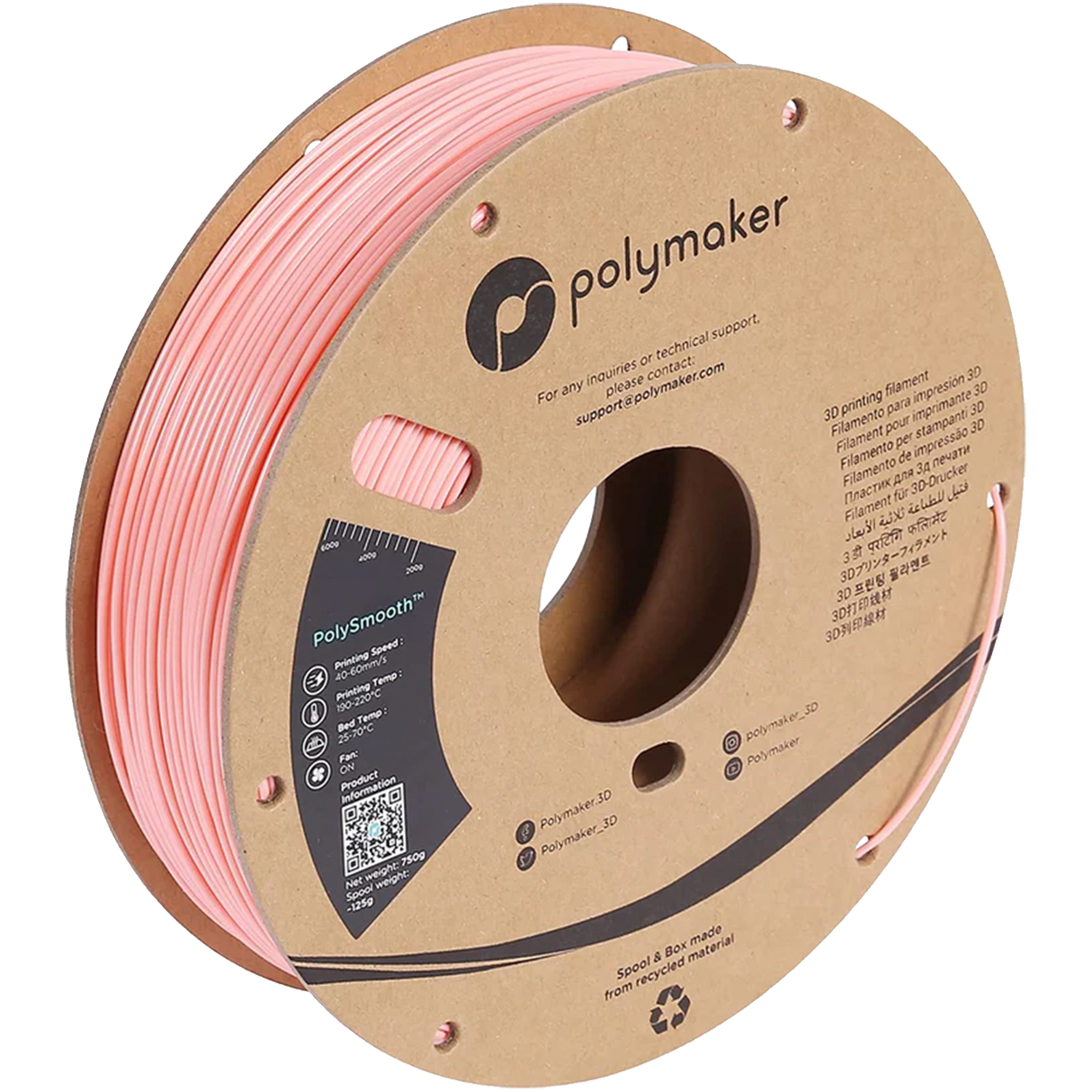

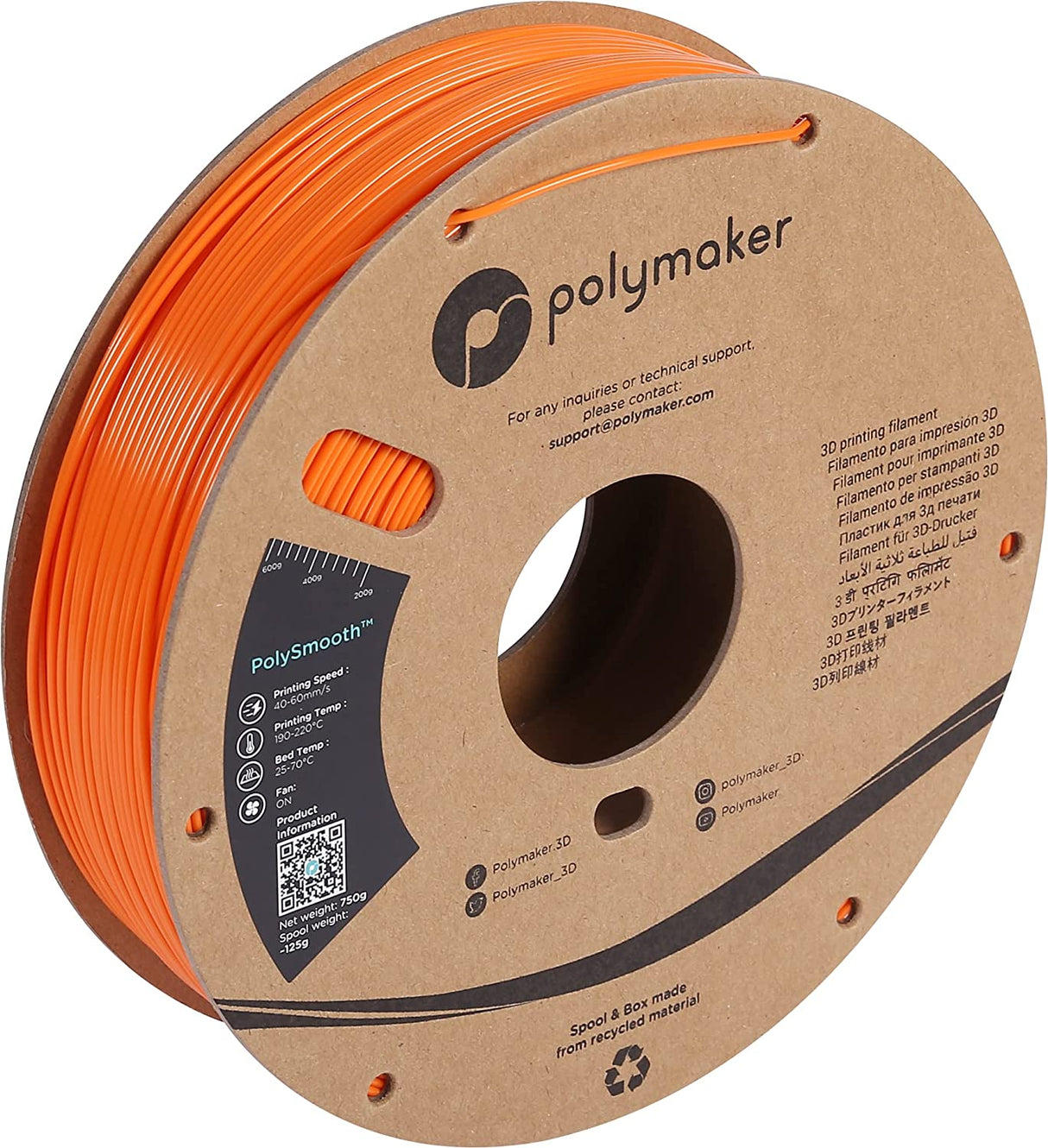

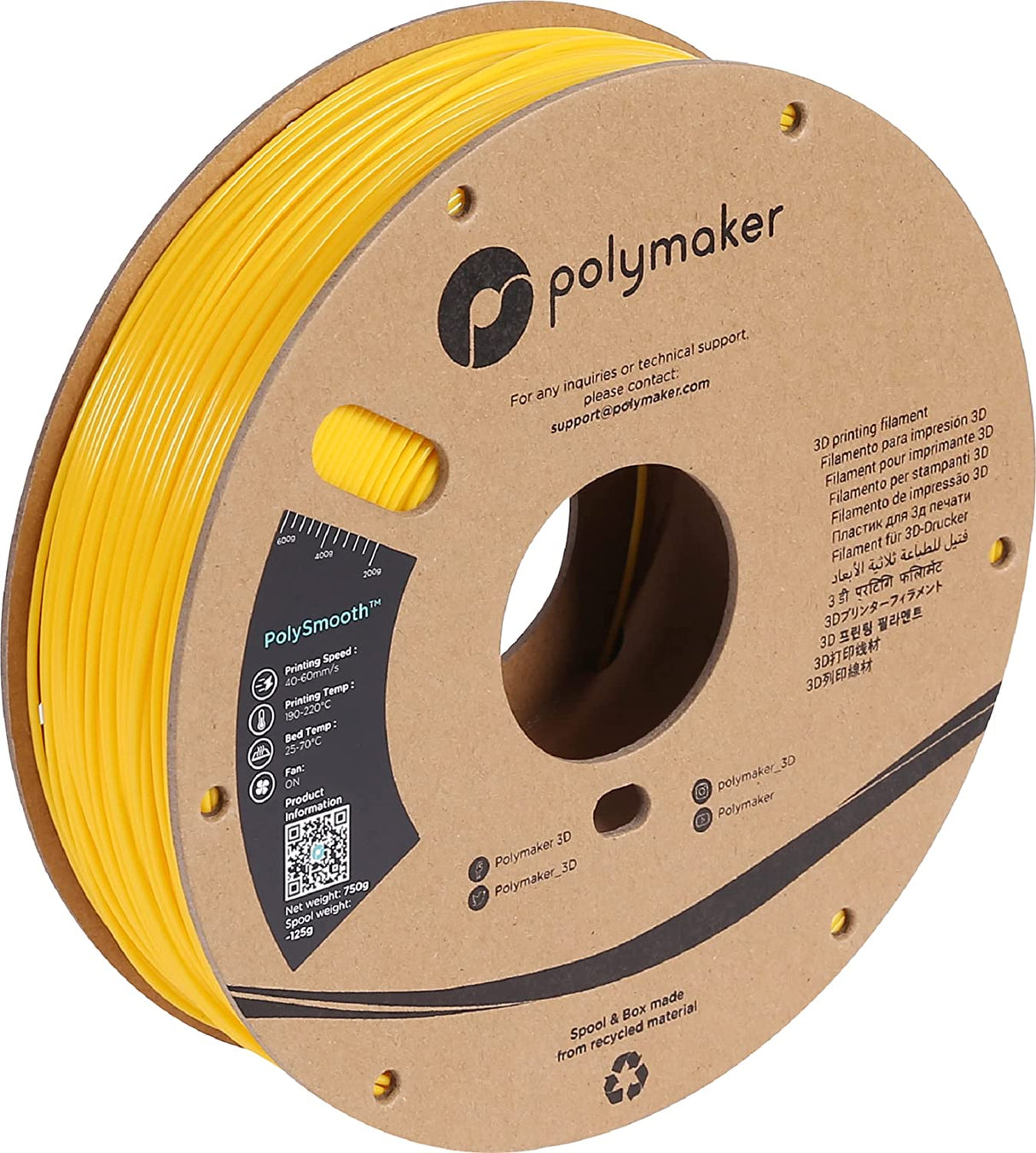

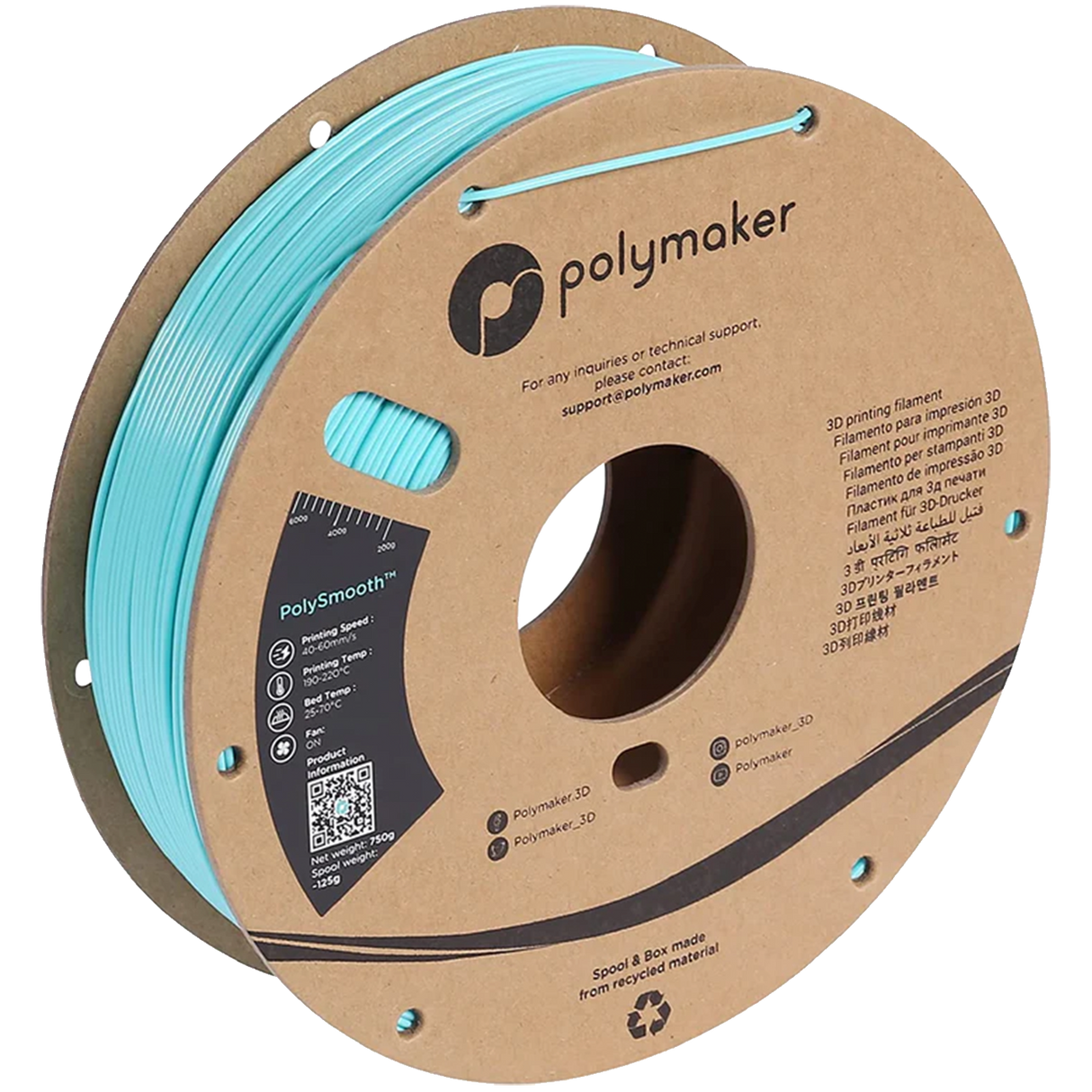

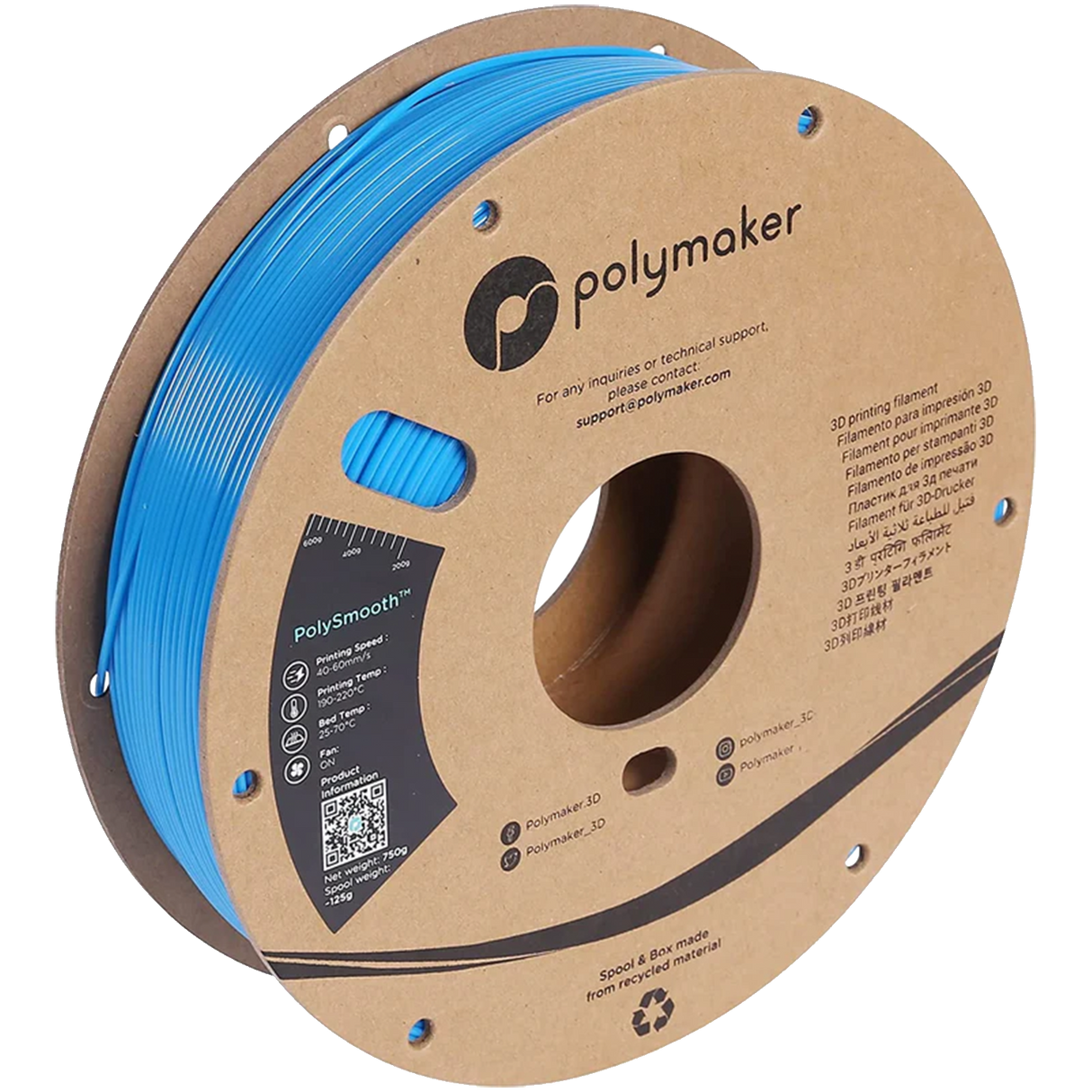

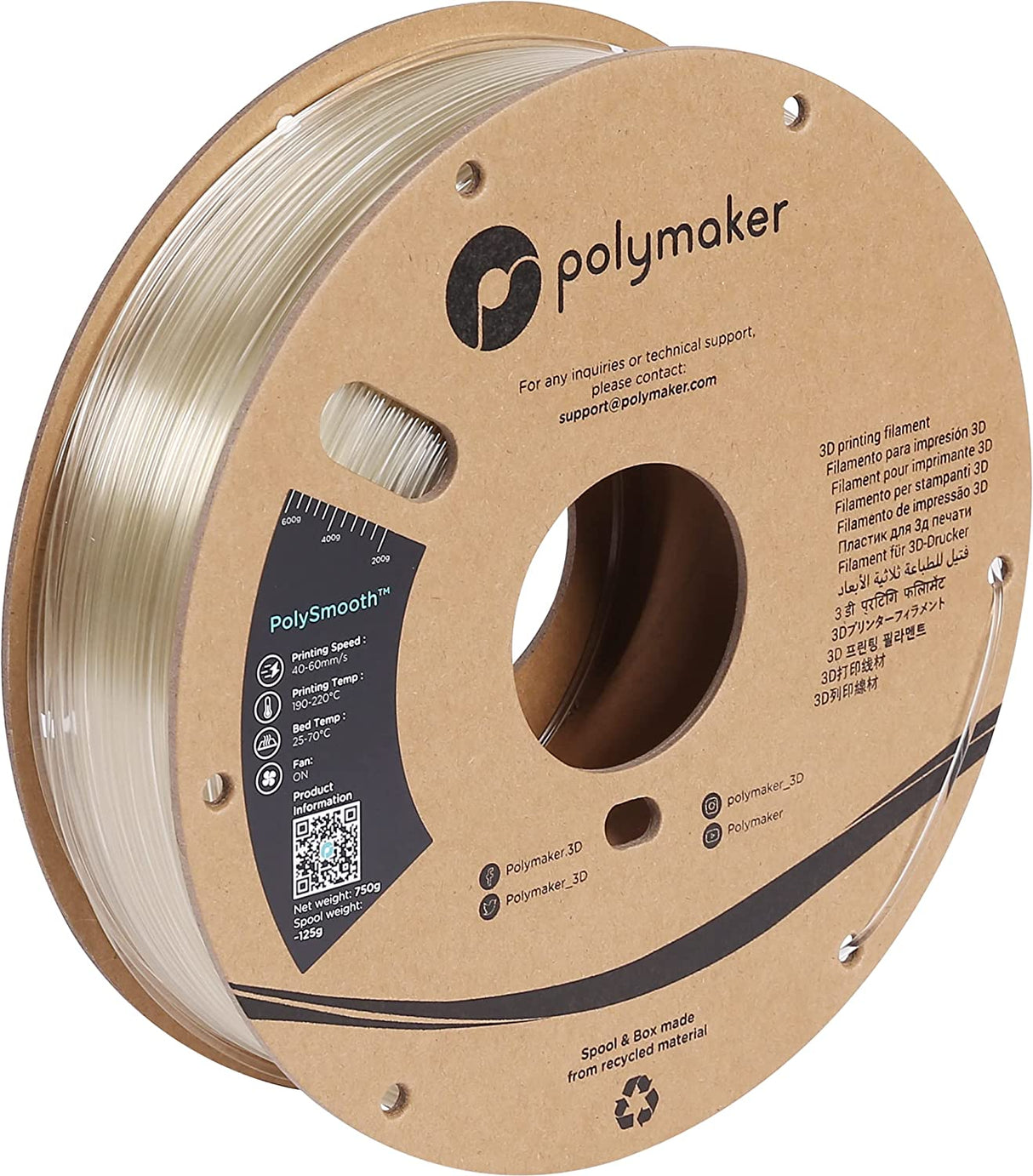

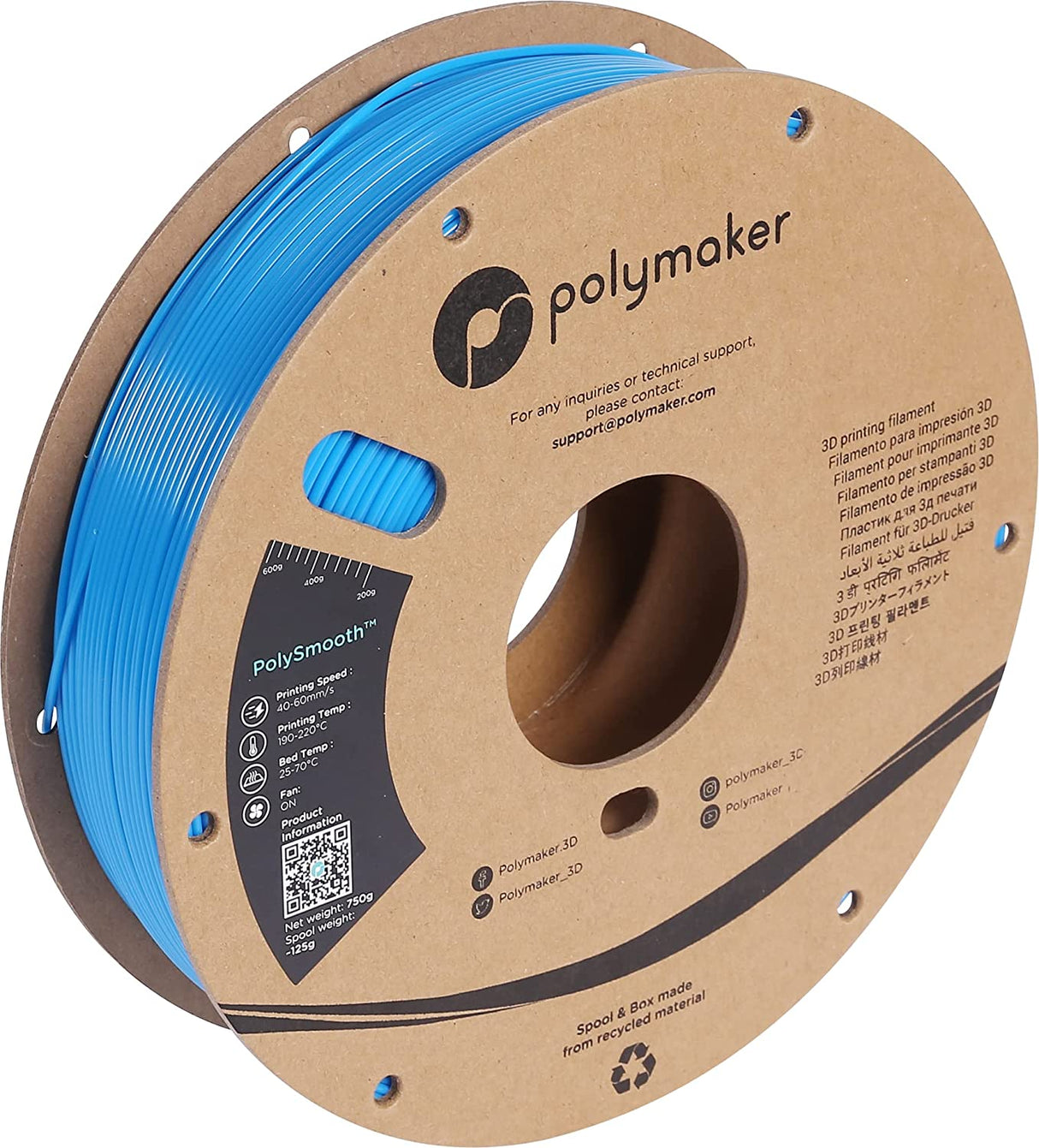

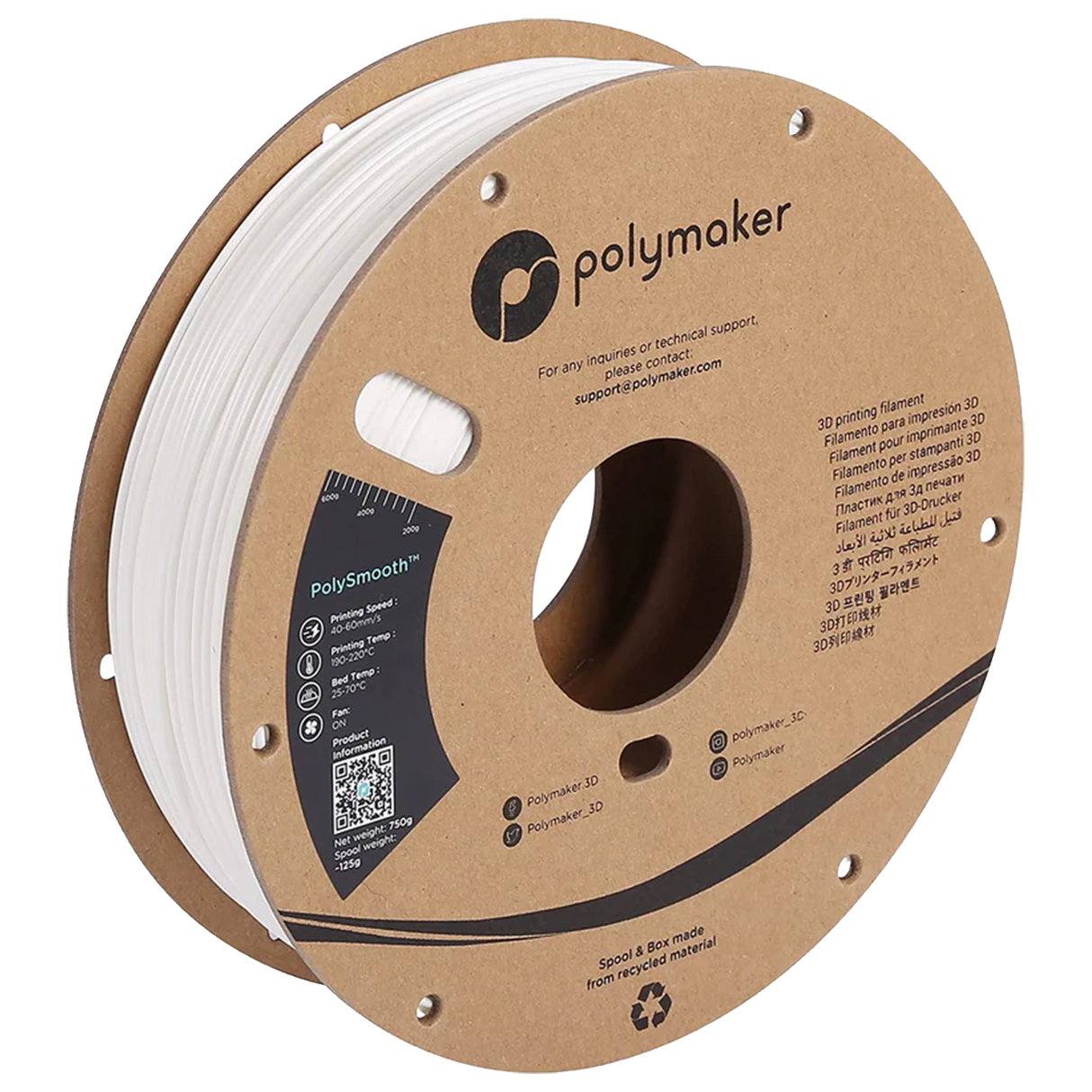

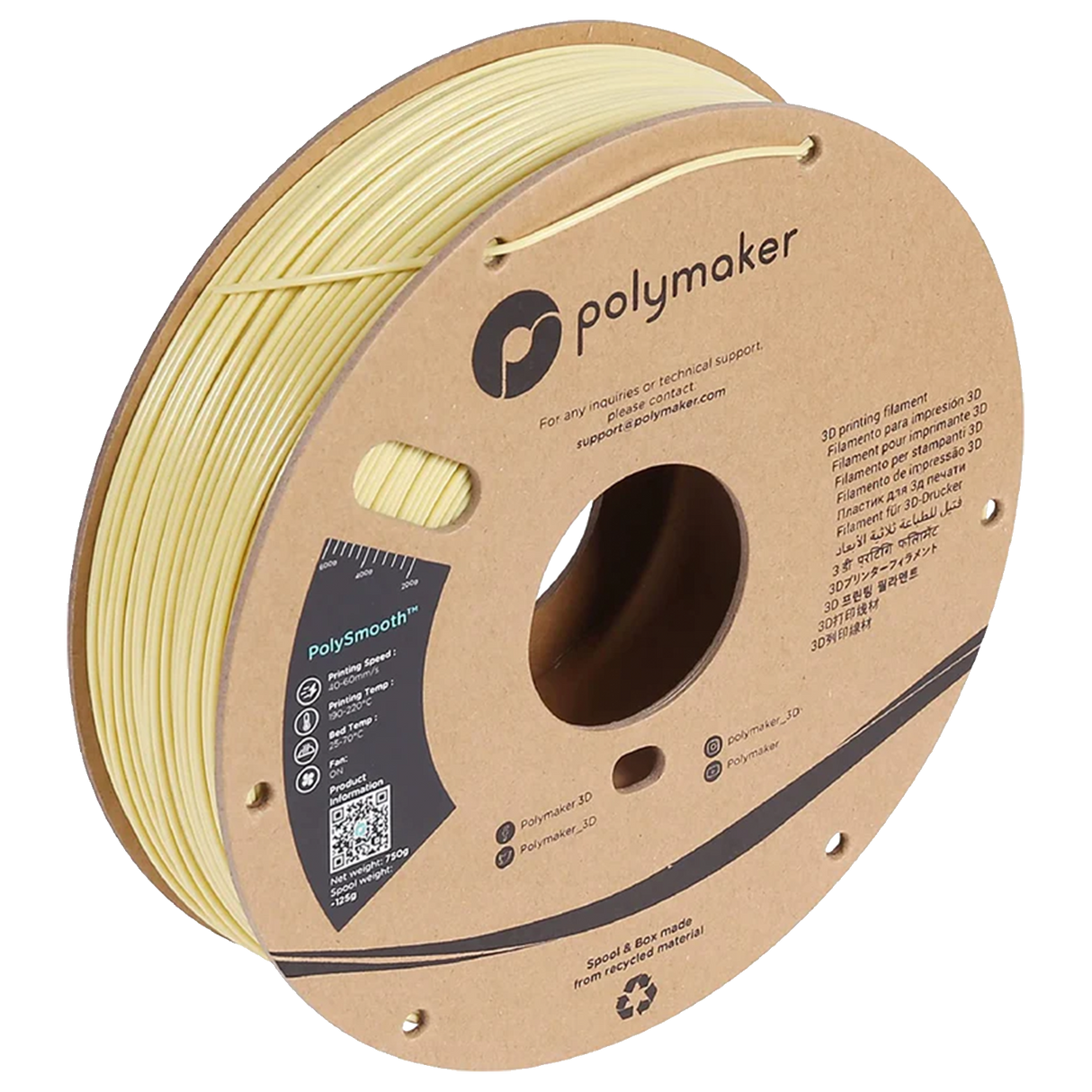

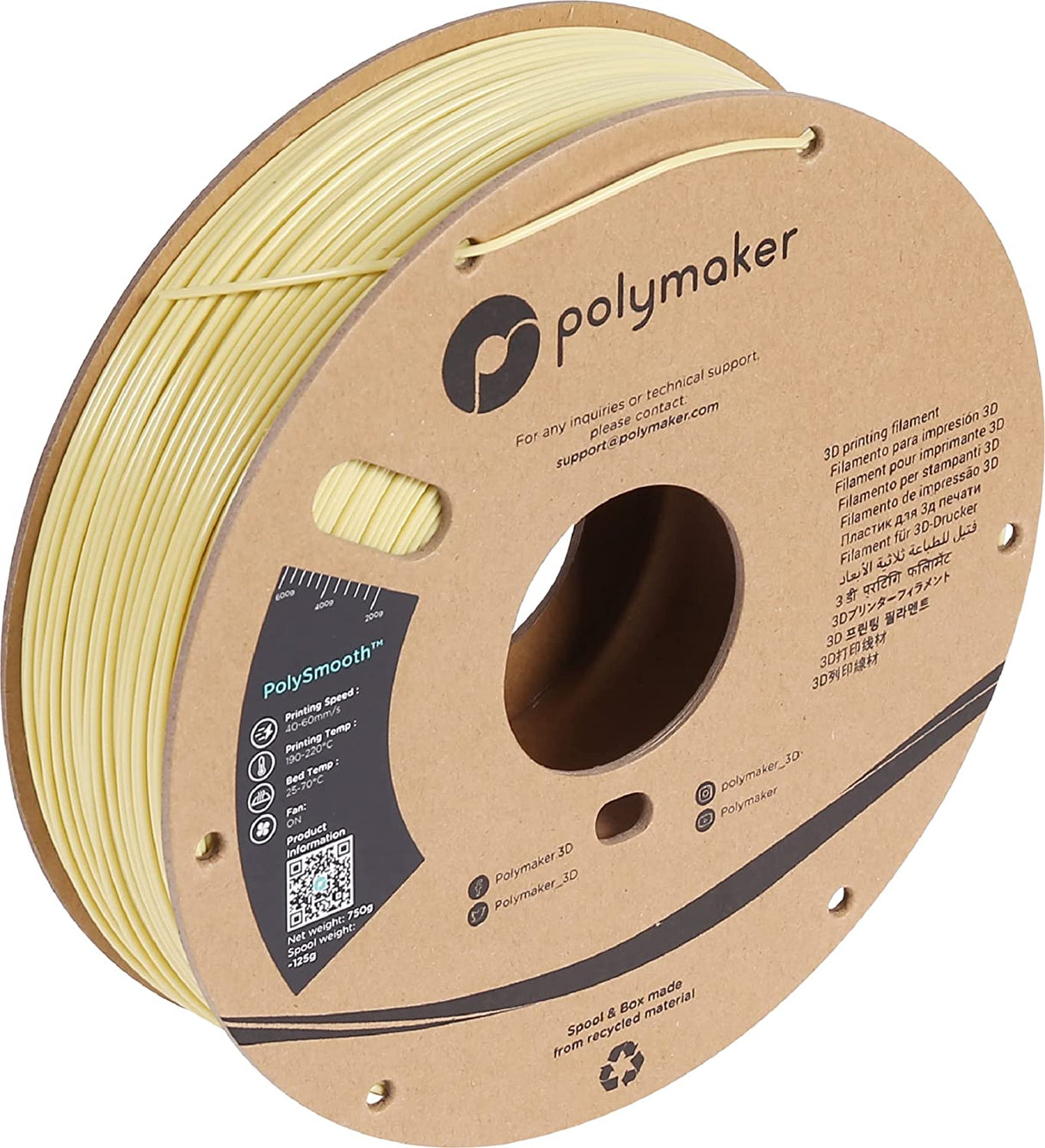

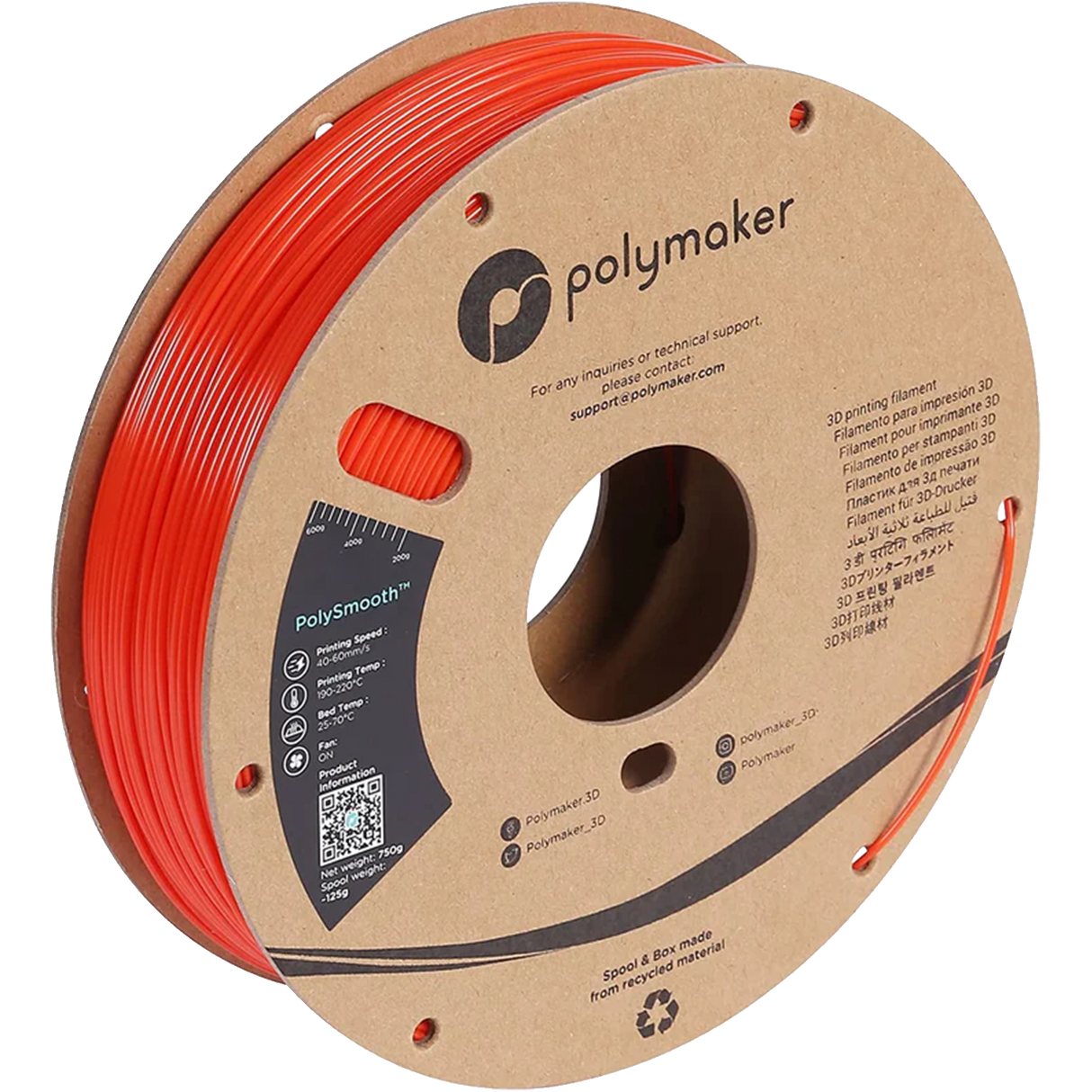

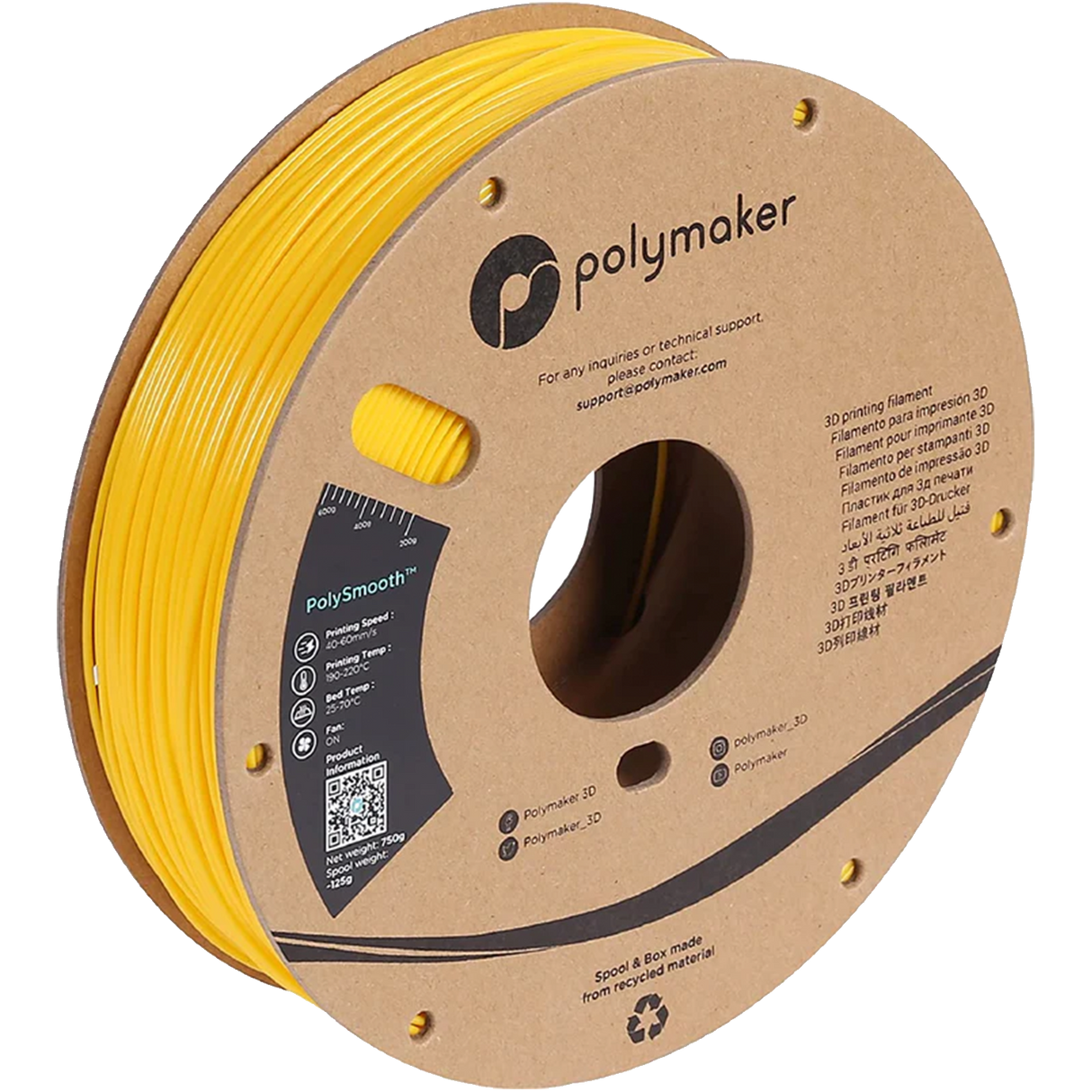

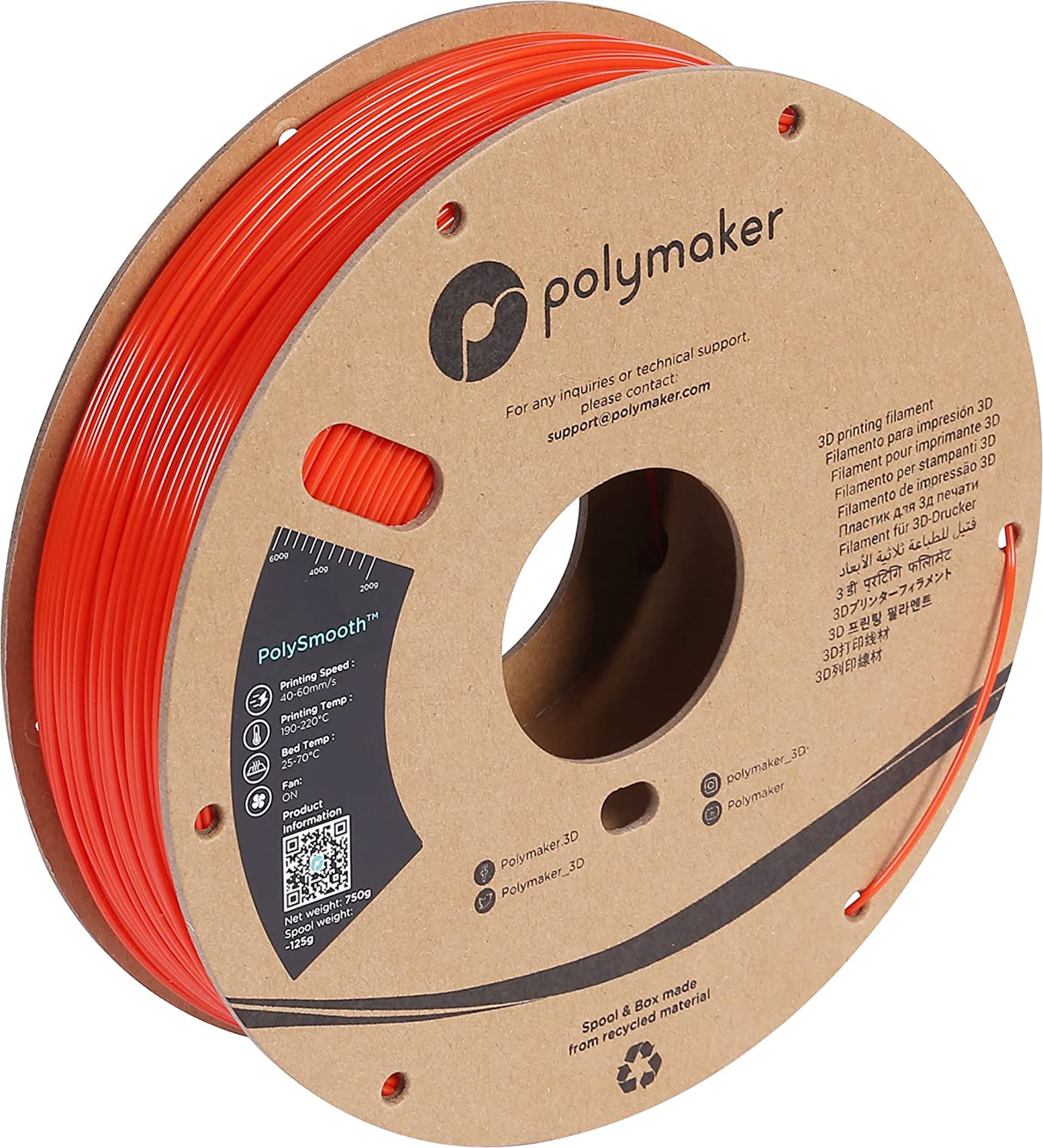

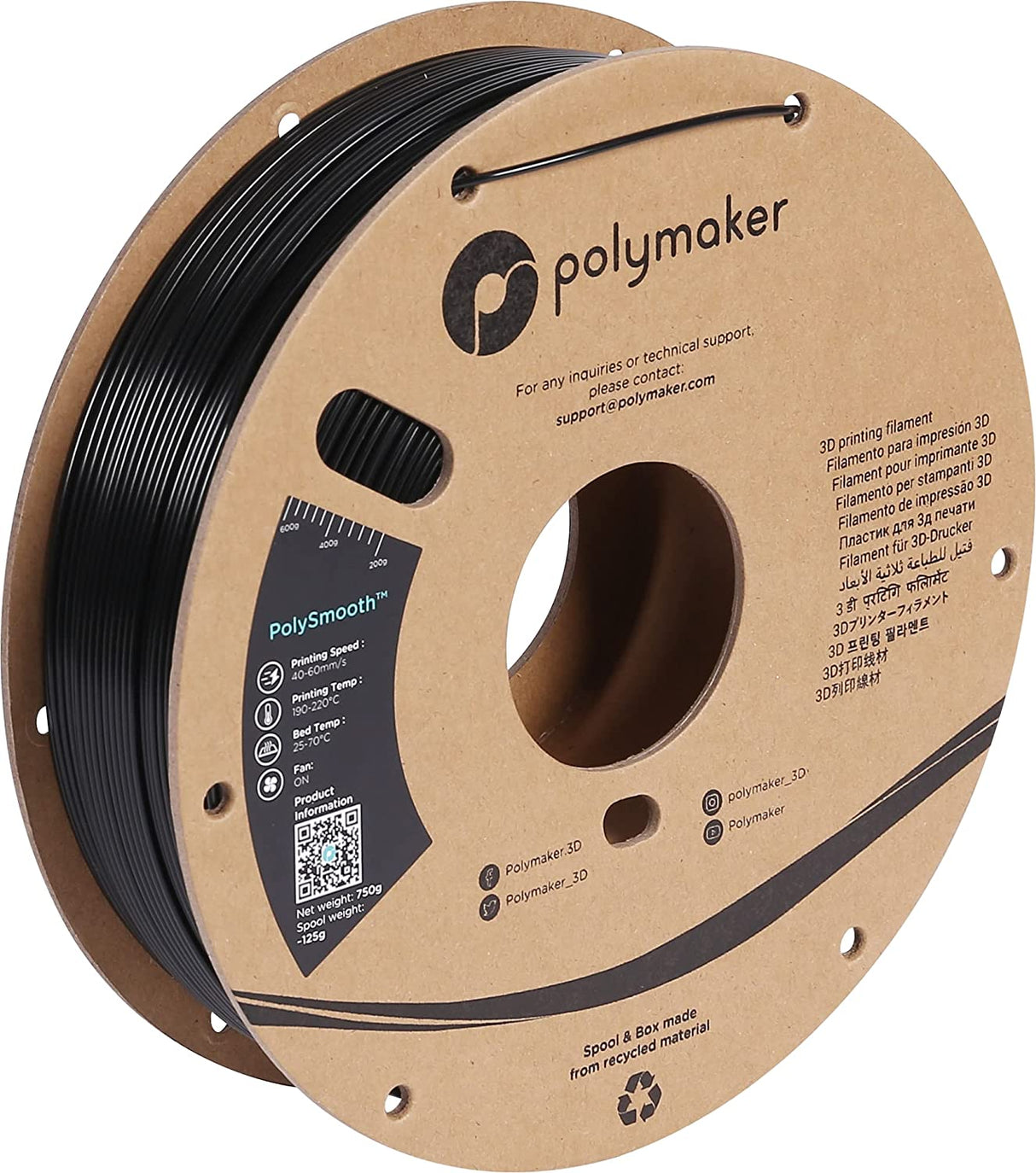

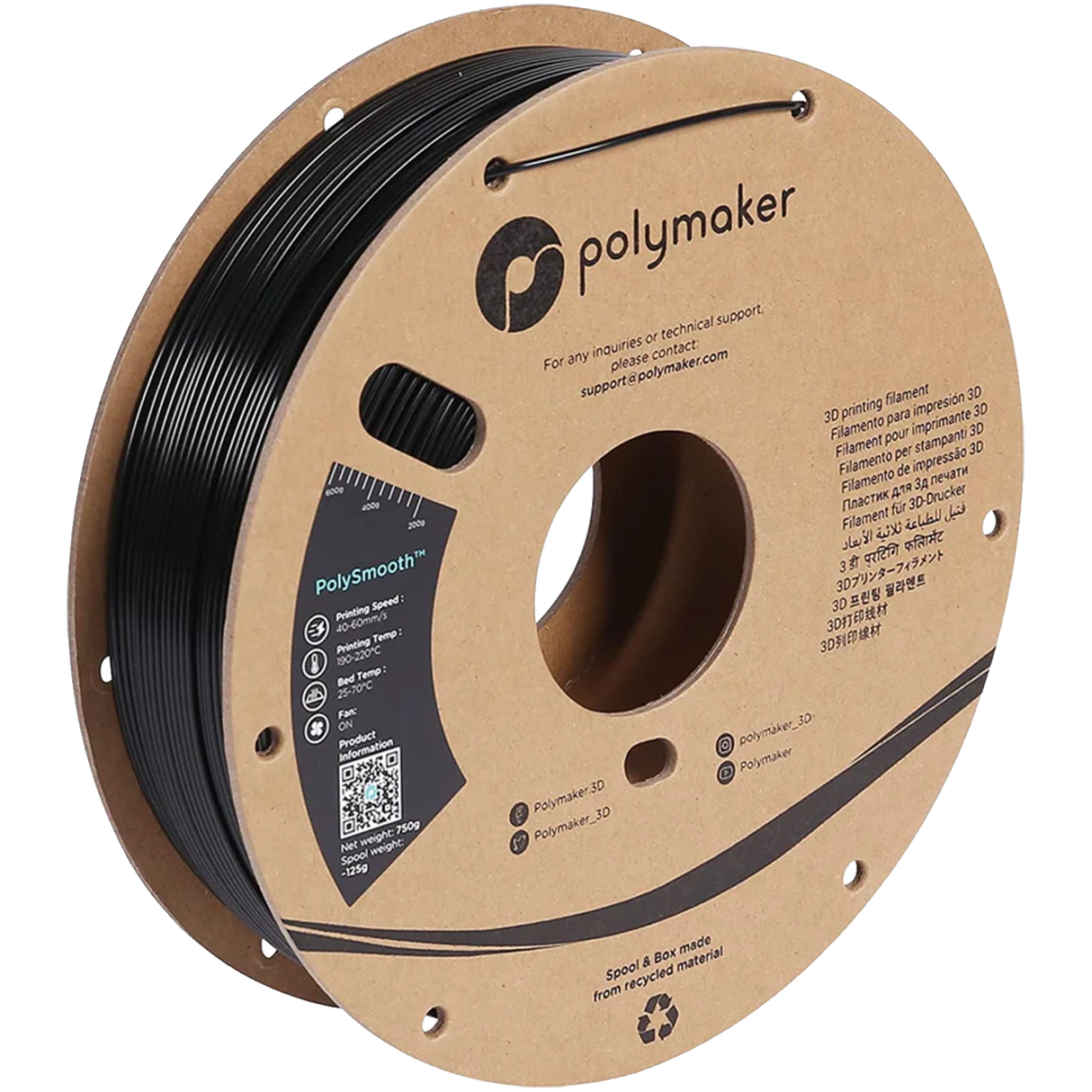

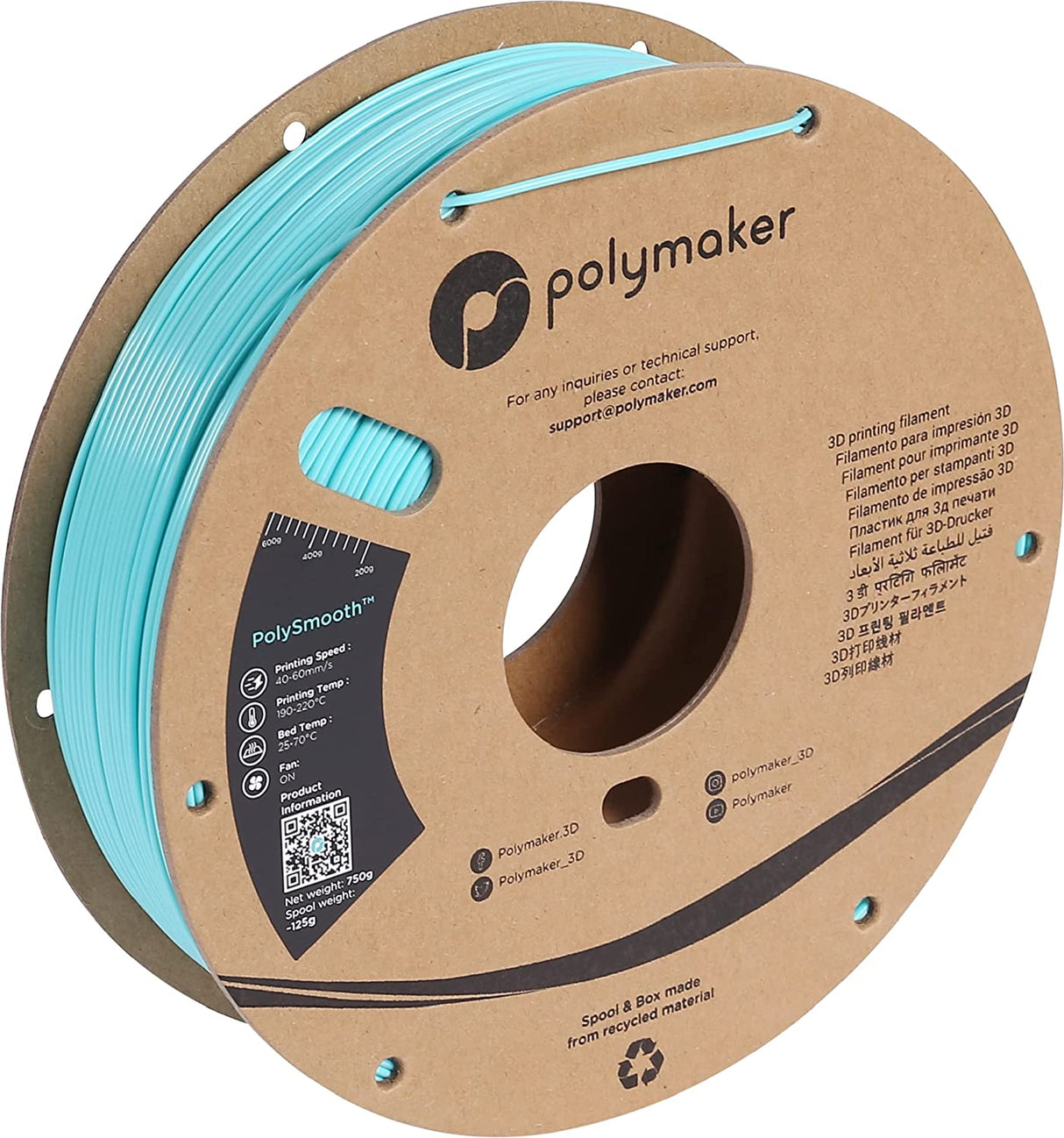

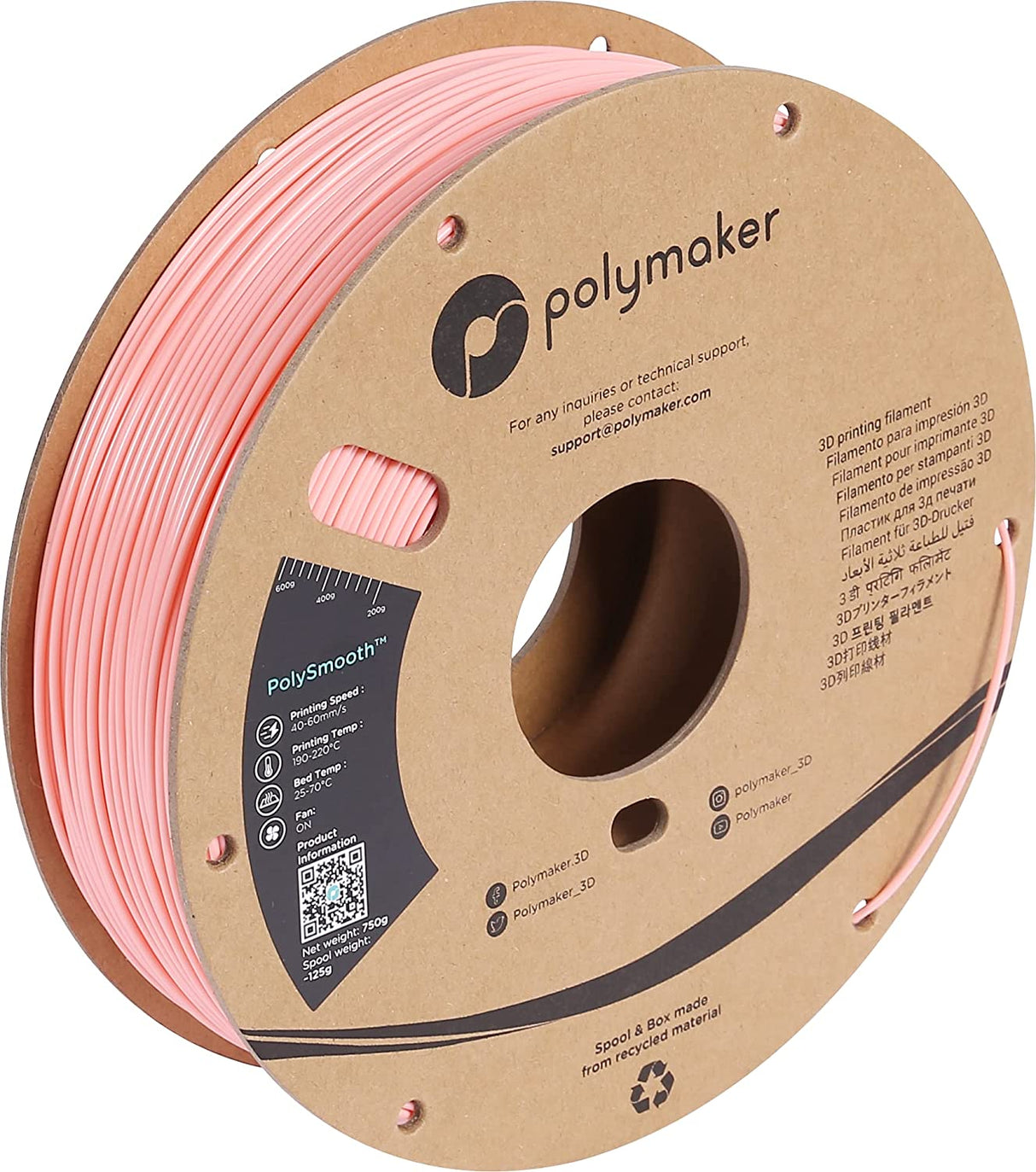

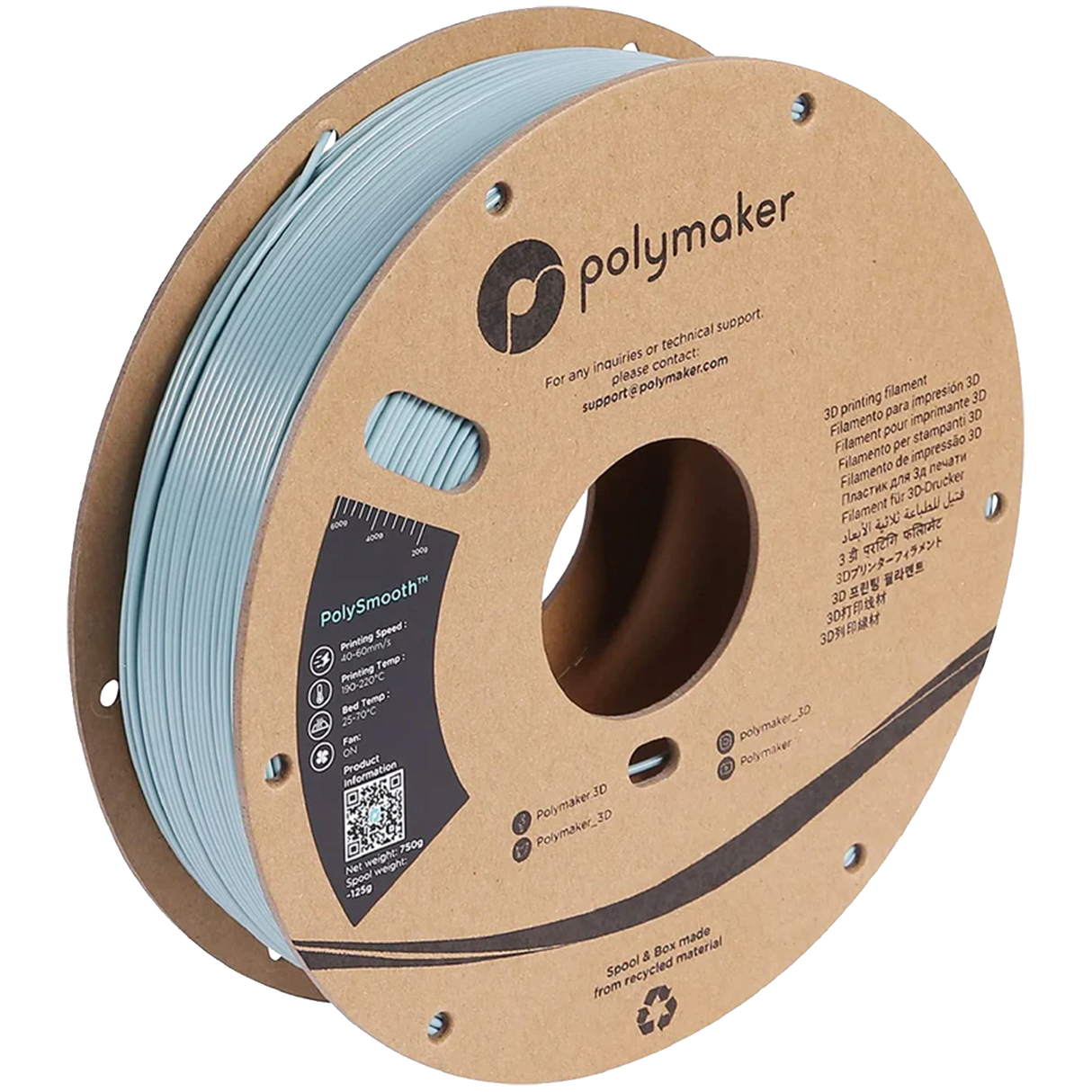

0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g

1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g

2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g

3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
