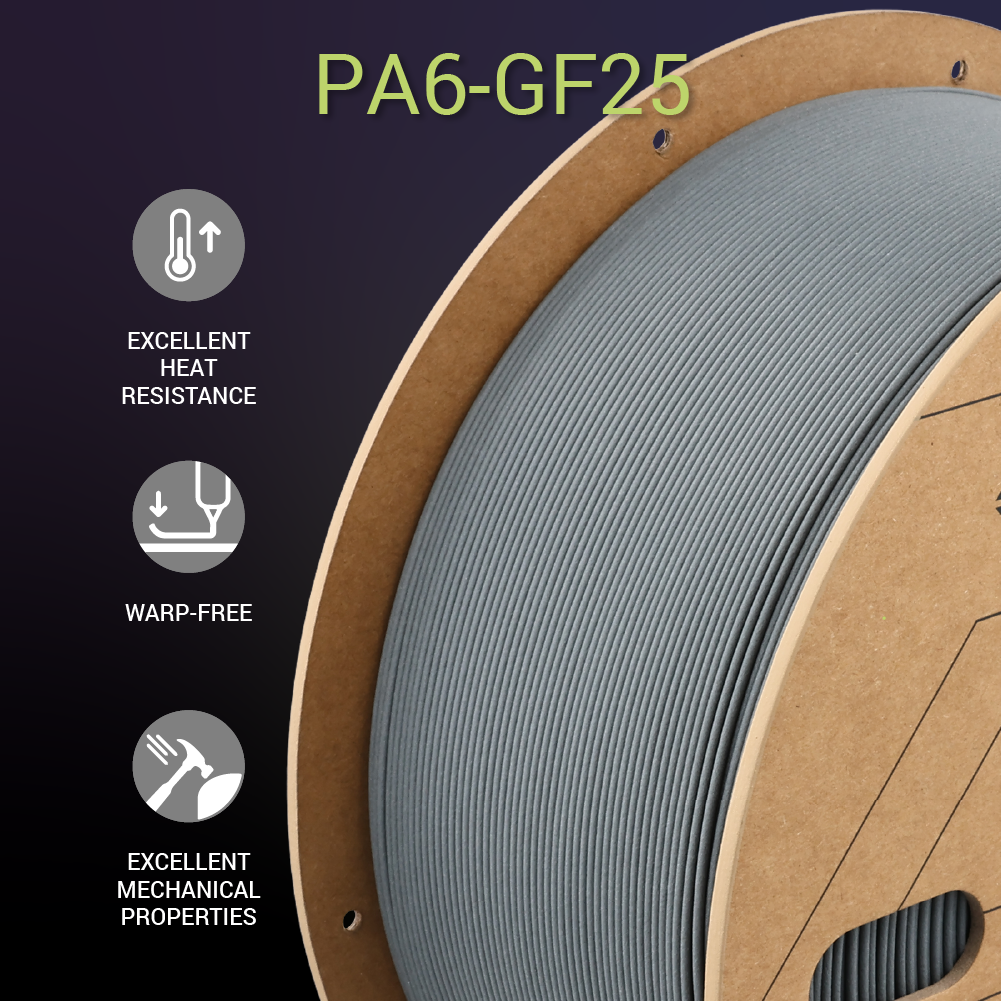

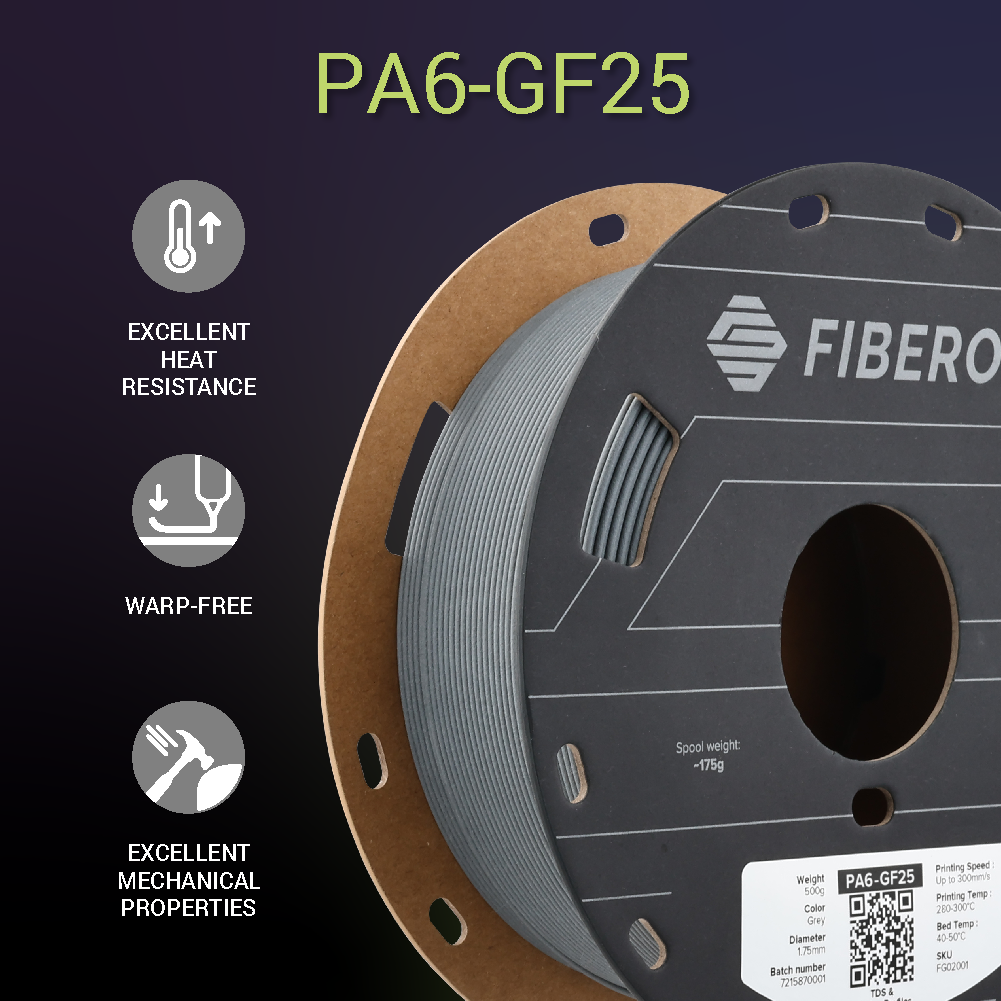

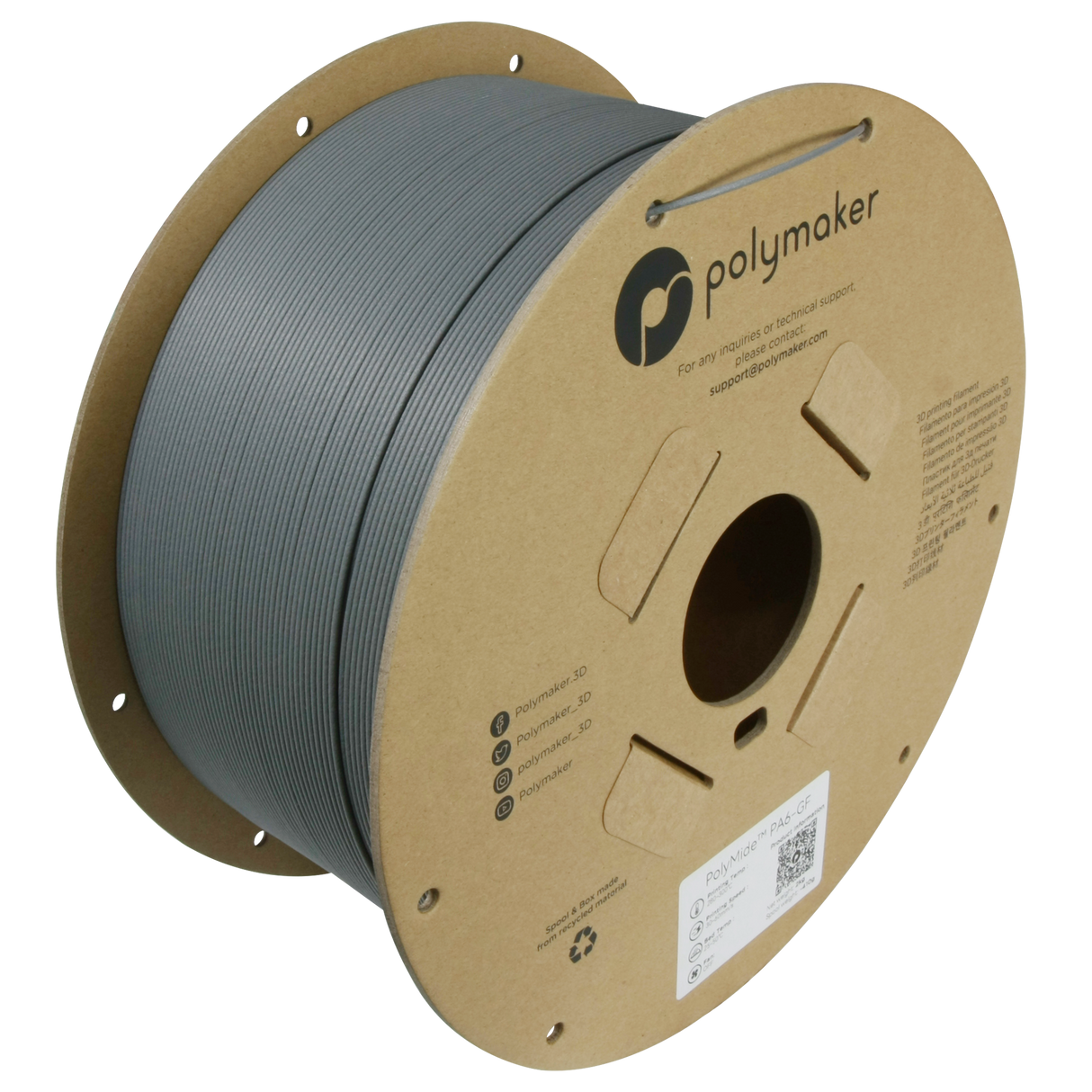

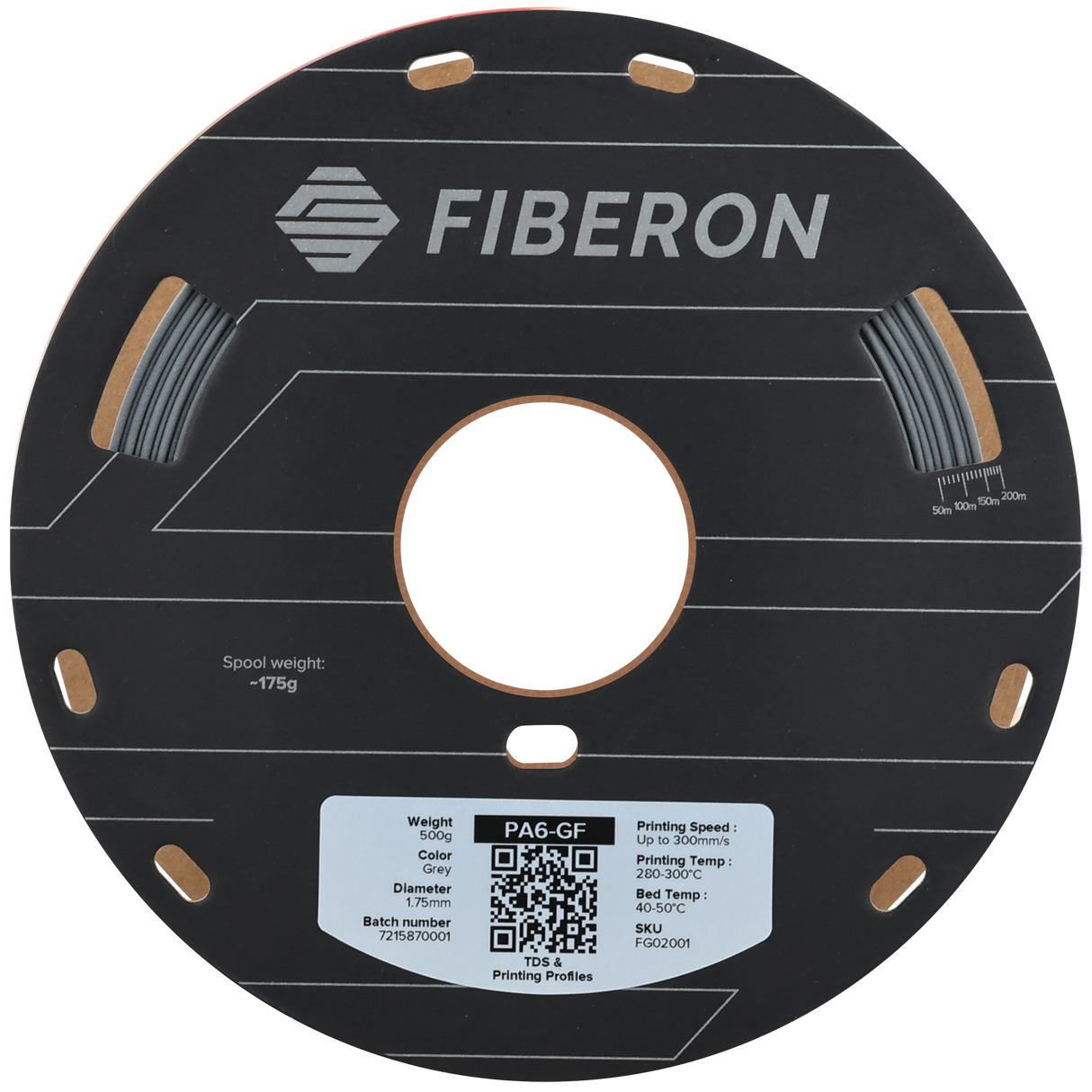

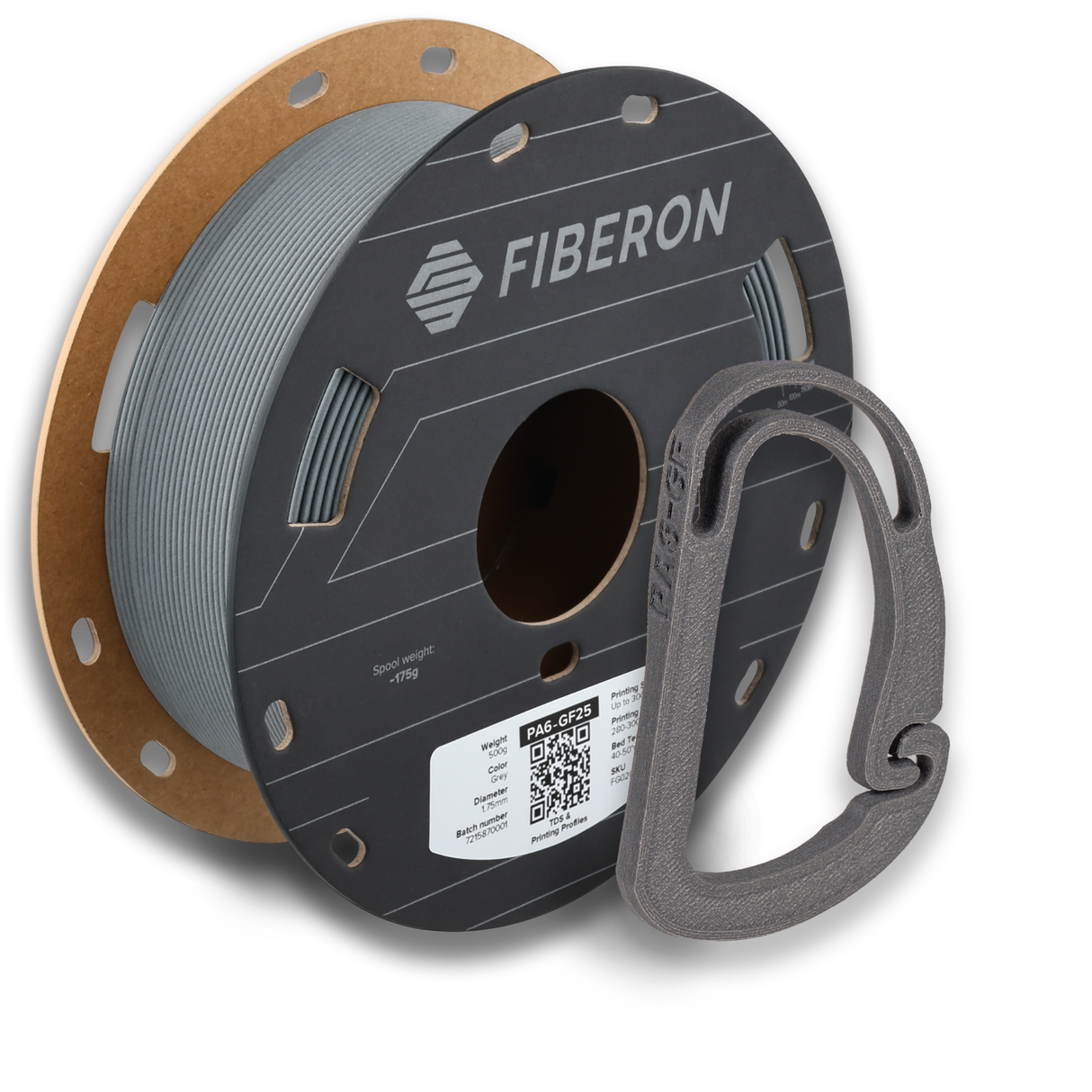

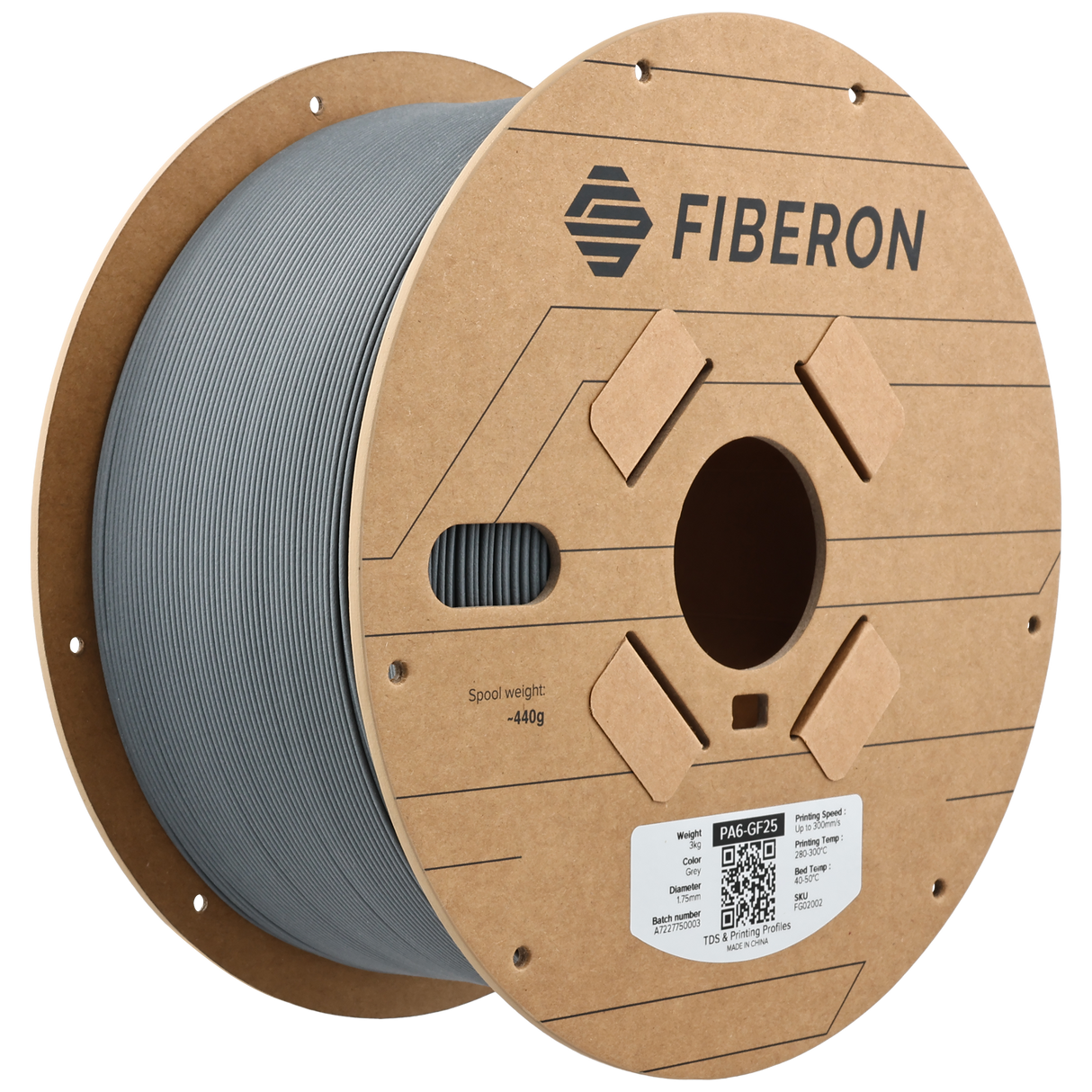

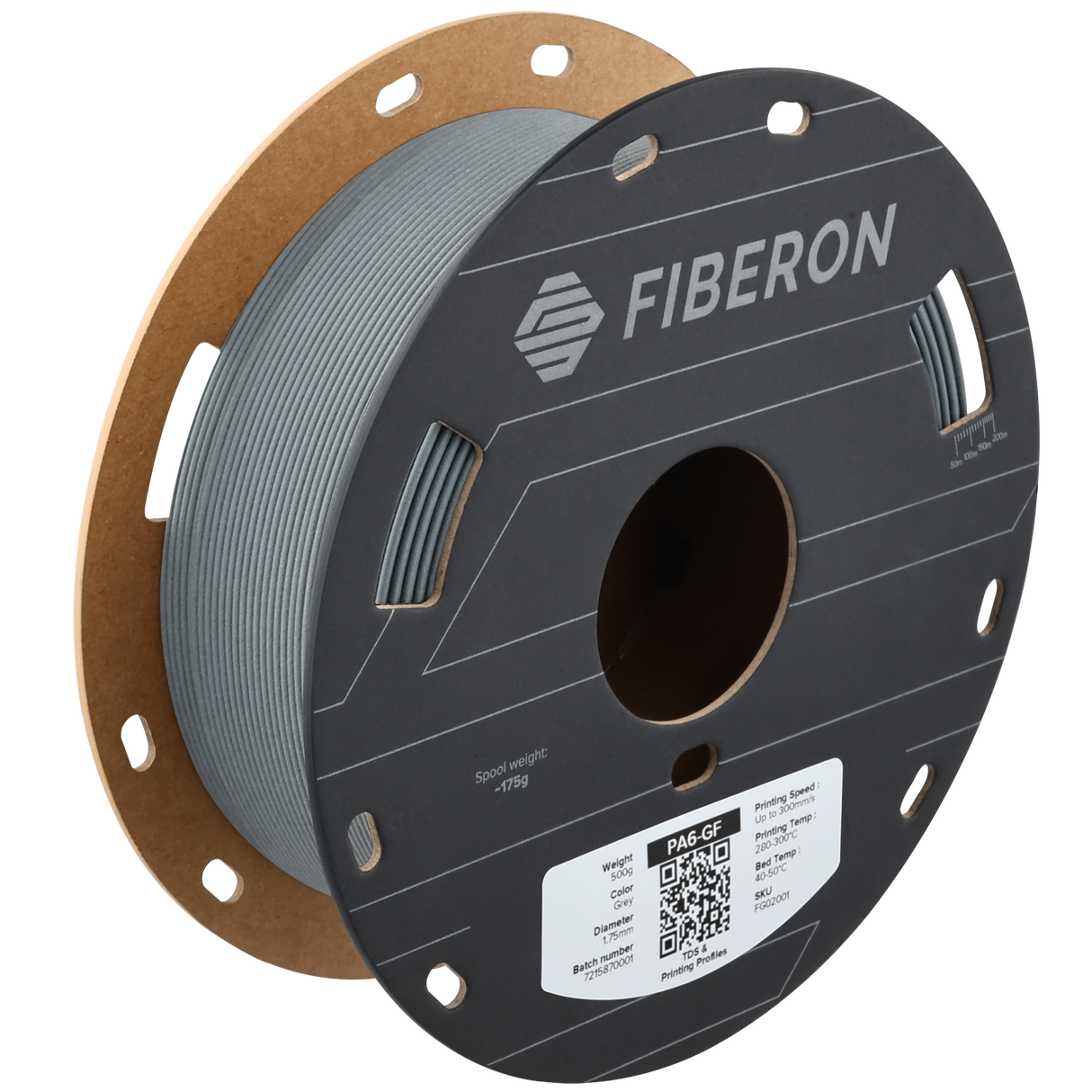

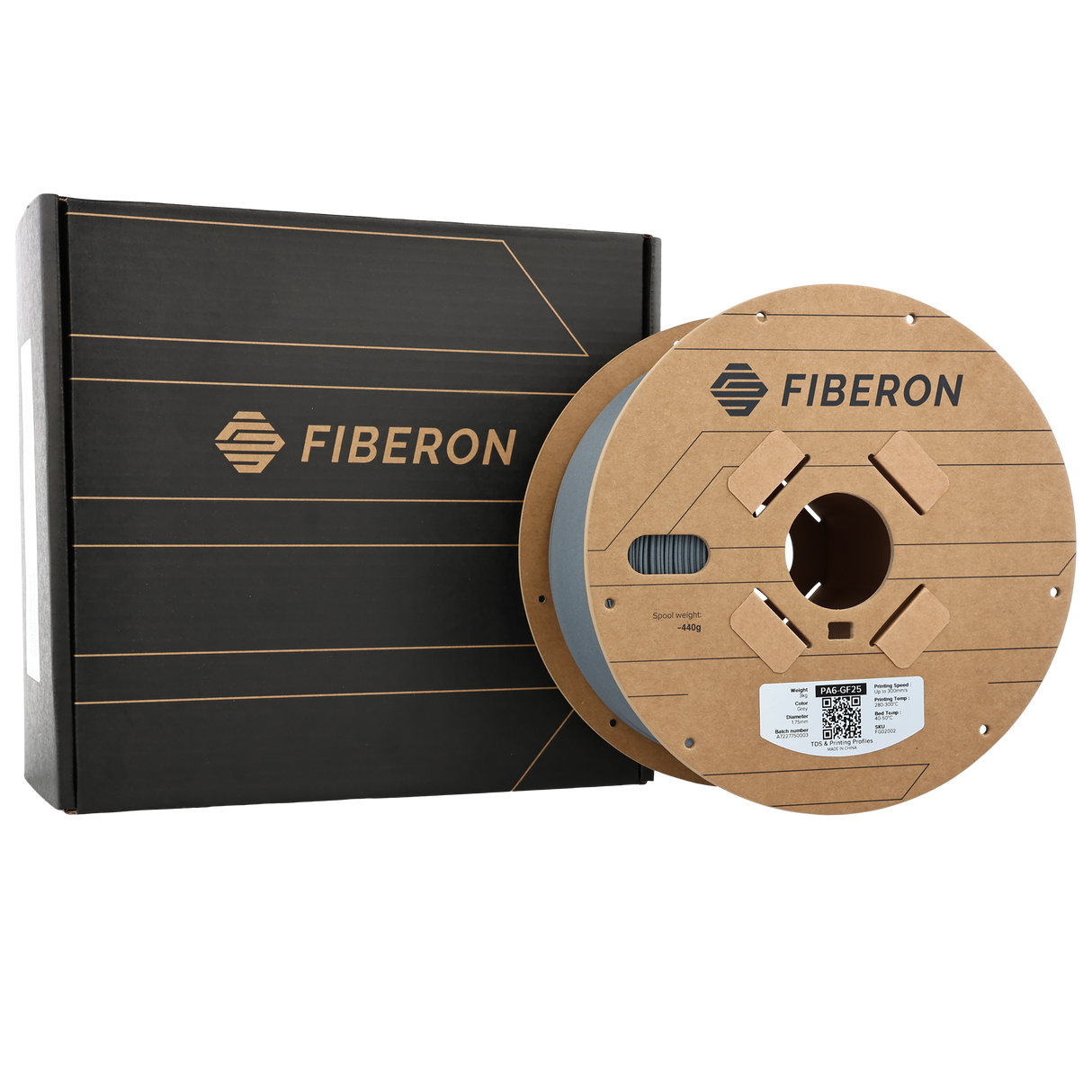

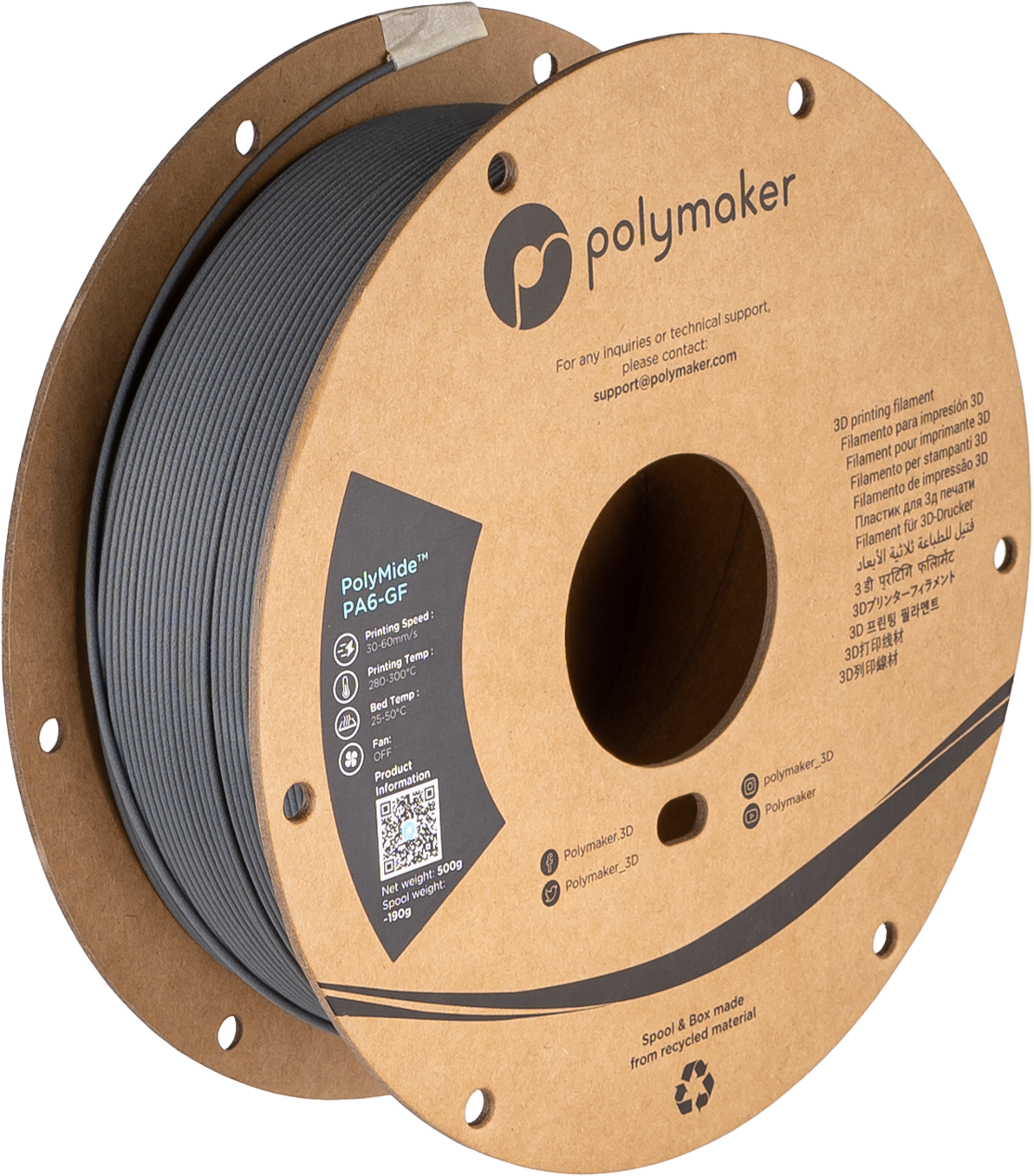

Fiberon™ PA6-GF25 (Formerly PolyMide™ PA6-GF)

Printing Temperature: 280˚C - 300˚C
Build Plate Temperature: 40˚C - 50˚C
Chamber Temperature: Room Temperature
Printing Speed: up to 300mm/s
Cooling Fan: OFF

Direct Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Indirect Drive:
Retraction Distance: 6mm
Retraction Speed: 60mm/s

Recommended Drying Settings:
Regular Oven: 100˚C for 10h
PolyDryer: Level 3 for 18h (PolyDryer™)
(Only if the material has absorbed moisture)

Annealing Settings: 100˚C for 16h

Printer Profiles:

Bambu Lab

QIDI Tech

Raise3D

Can't find your profile? Join our Discord and see if the community has made one already!

What is annealing?

You can find out more about annealing HERE

What is moisture conditioning?

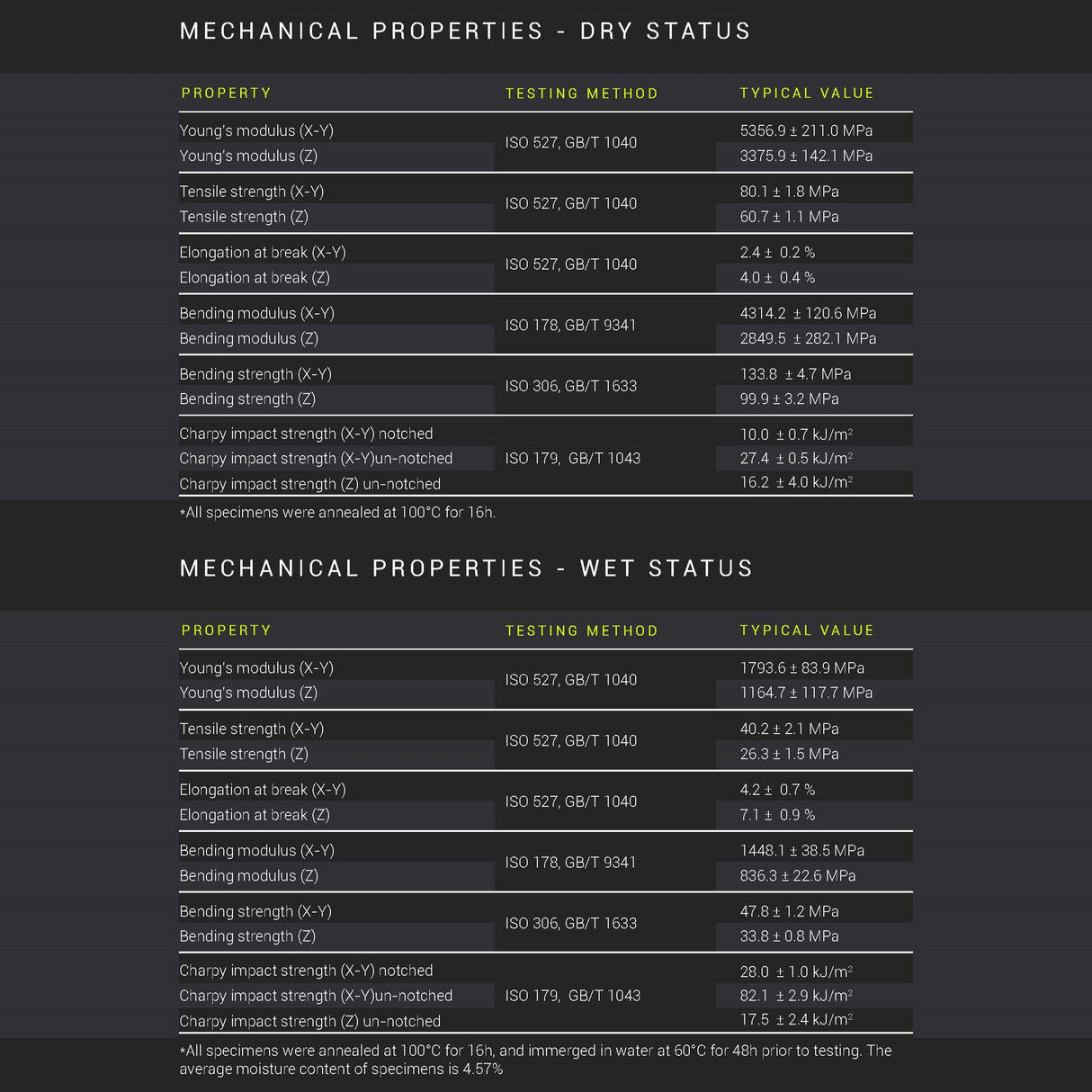

Moisture conditioning refers to allowing the print to absorb moisture. This is inevitble since nylons are hygroscopic, but you can expedite the process by keeping the print in a high humidity climate, or submerging them in water, for 48 hours. All of our test specimens were annealed at 100˚C for 16 hours, and then immerged in water at 60˚C for 48 hours. The average moisture content of specimens is 2.57%.

Should I anneal before or after moisture conditioning?

When you anneal in a convection oven, you will dry the part out. So if you moisture condition before annealing - you will need to moisture condition again after. So we would suggest to moisture condition after annealing.

Why do you use such a low build plate temperature with your nylons?

Our nylons come with our Warp-Free™ Technology. In order for this Warp-Free™ technology to work as it should - we want to make sure the build plate and the ambient air temperatures are both below 50˚C. We then anneal the print after to get it's full strength.

Learn more HERE

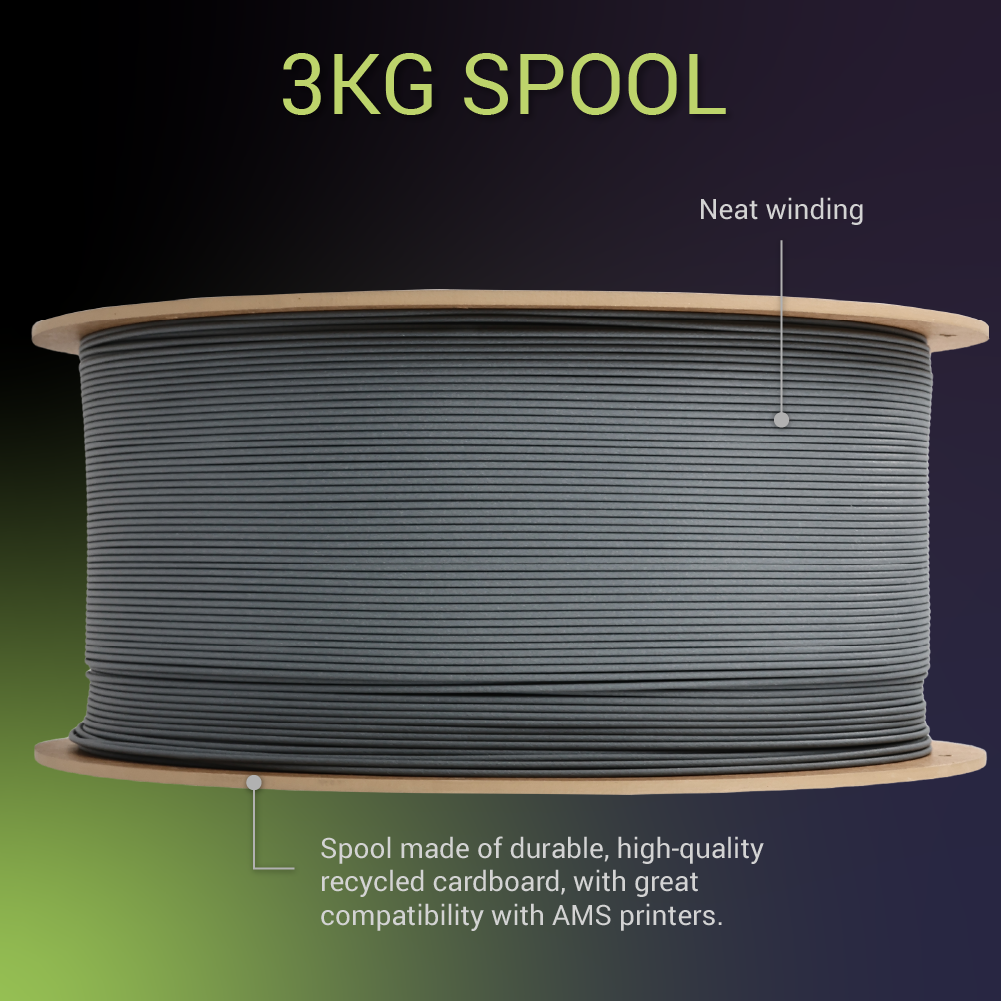

Will the spools work in an AMS?

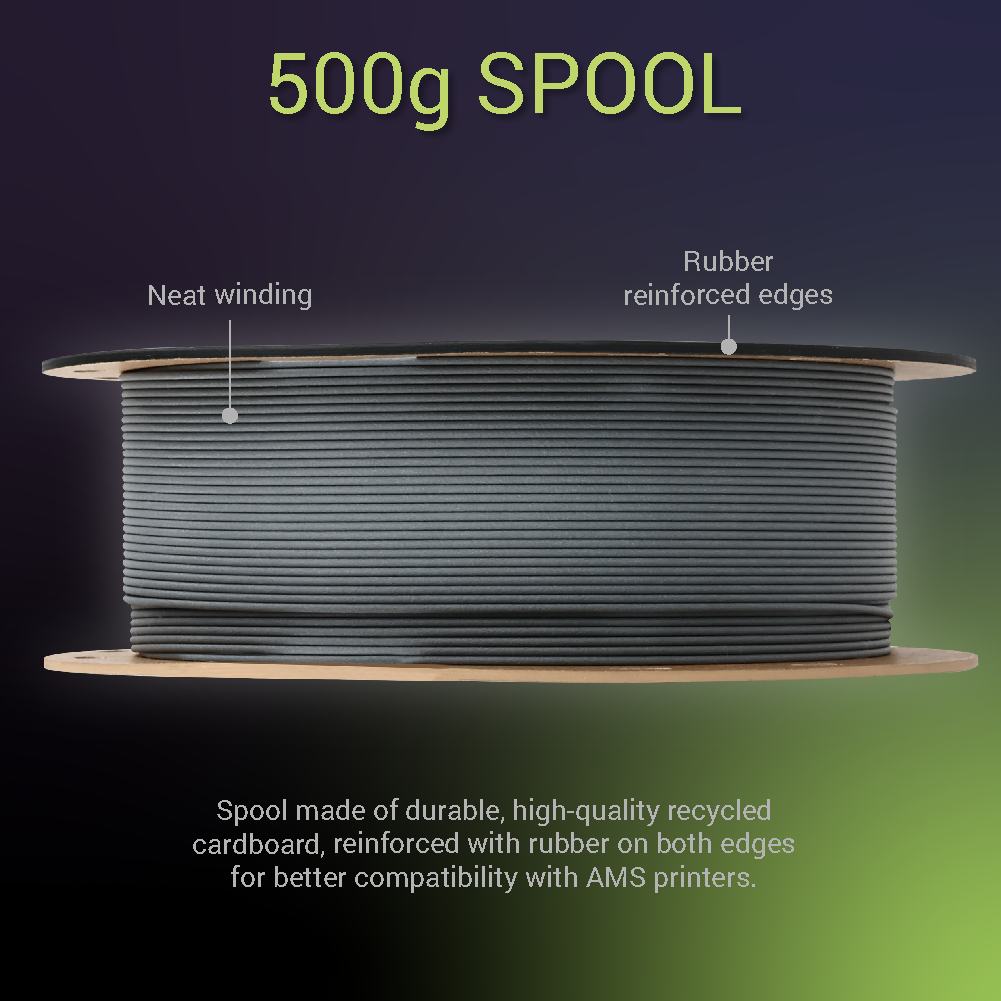

Yes! We have redesigned the edges of our spools so all Polymaker products will now spin great in the AMS.

That said - you will need to be careful when using any abrasive materials in the AMS.

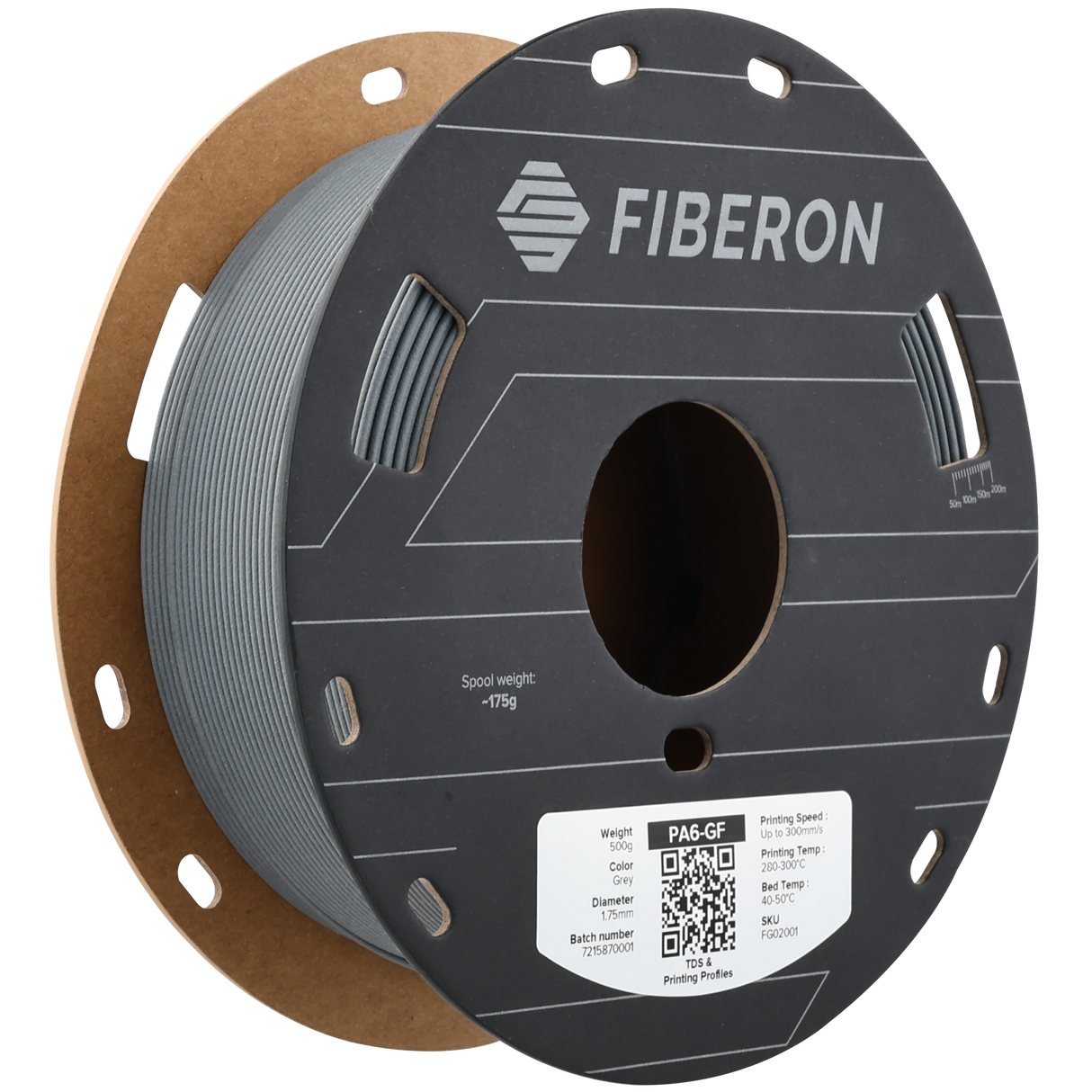

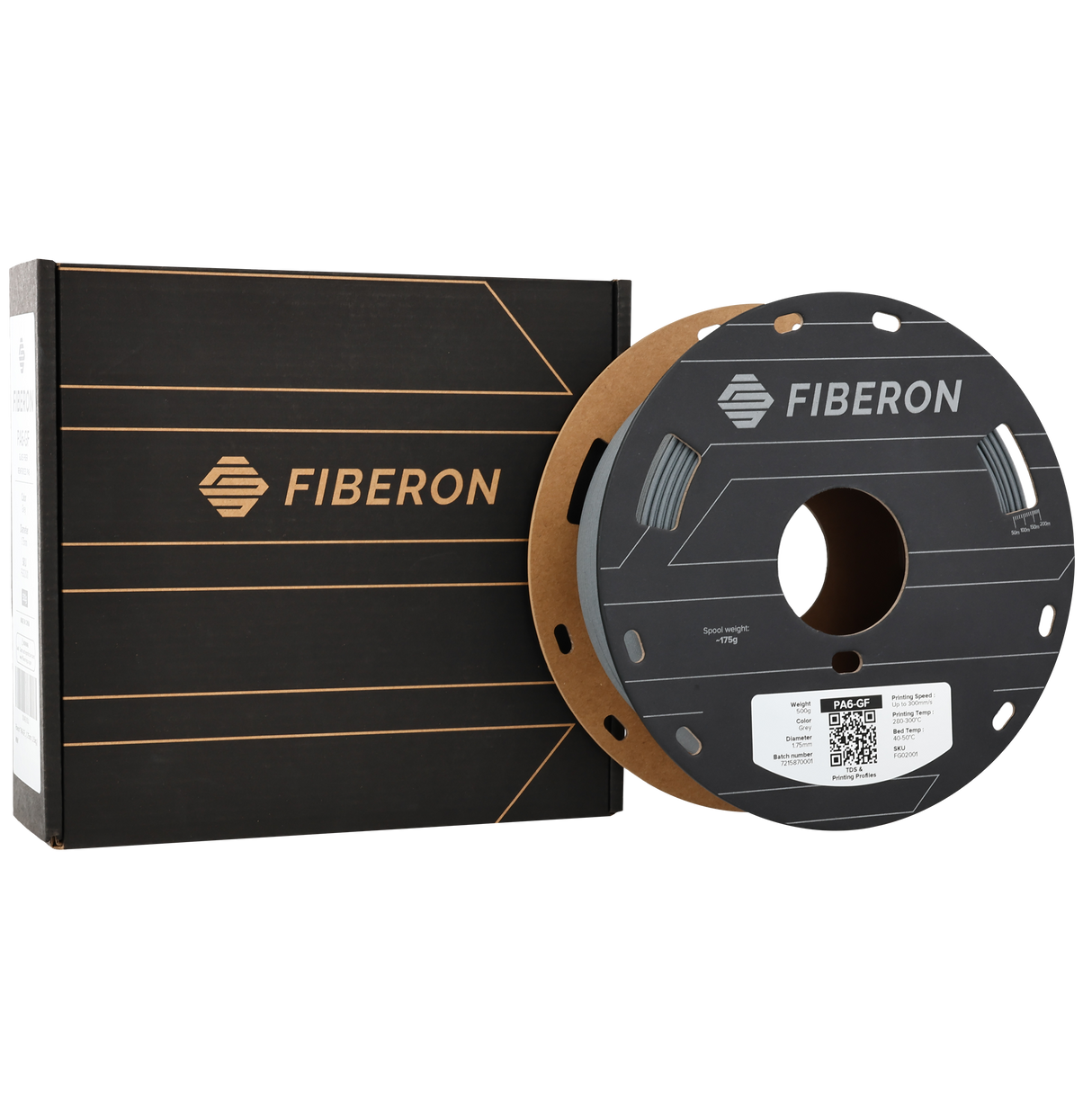

Can you offer 1KG Fiberon™ Spool Options?

Unfortunately we are not offering 1KG Fiberon™ options and this has to do with the increased chance of carbon fiber and glass fiber filament snapping on the spool.

Since carbon fiber and glass fiber filament is more brittle, we spool these with a larger core. This larger core means that 1KG of filament will not fit on a 1KG spool.
